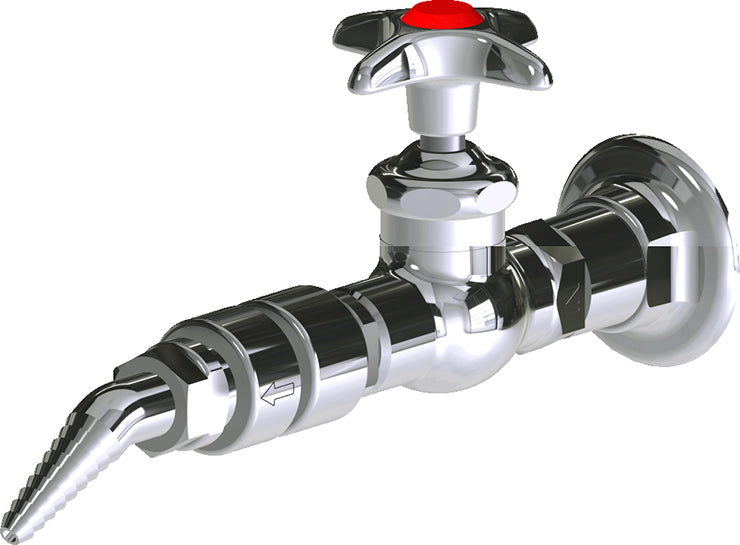

The Chicago Faucets LWV1-A52-50 is a laboratory water valve with NPT connections. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. LWV1-A52-50 Wall-mounted water valve with flange, polished chrome finish. 30-degree angle serrated nozzle with vacuum breaker. Slow compression operating cartridge, left-hand turn. 2-1/2" cross handle with button indexed 'HW'. Inline vacuum breaker with dual checks.
Features
- 30-degree angle serrated nozzle with vacuum breaker
- Vandal Proof 2-1/2" Chrome cross handle with button indexed
- 'HW'
- Slow compression operating cartridge, left-hand
- Inline vacuum breaker with dual checks
- Complies with the requirements of the Buy American Act of 1933.
- Includes: 204-HWJKCP
- Includes: 217-XTLHJKABNF
- Includes: SP3524KJKABCP
Common Questions
- Does this ship with the mounting shank?
- No -- this is the "Less Shank" configuration. The valve/faucet body ships without a mounting shank; you need to source one separately (or order the "With Shank" version of the same part number) before you can install it.
- Does this have backflow protection?
- Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.
Specifications
-
Type: Wall-mounted water valve with flange
-
Connection: NPT
-
Body Material: Brass
-
Application: Domestic Water
-
Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
-
MPN: LWV1-A52-50
-
Temperature: 40°F to 140°F
-
Certifications: ASME A112.18.1/CSA B125.1
-
Service Medium: Water
-
Outlet Configuration: Single
-
Shank: Less Shank
-
Body Pattern: Straight
-
Mount Type: Wall-Mount
-
Handle Style: Metal Cross
-
Handle Index: Hot
-
Outlet Type: 30-Degree Serrated Nozzle
-
Cartridge Type: Compression
-
Mixing Valve: No Mixing Valve
-
Coating / Finish: Polished Chrome
-
Max Operating Pressure (PSI): 125
-
Backflow Device: Atmospheric Vacuum Breaker
-
Lead Time (days): 15
