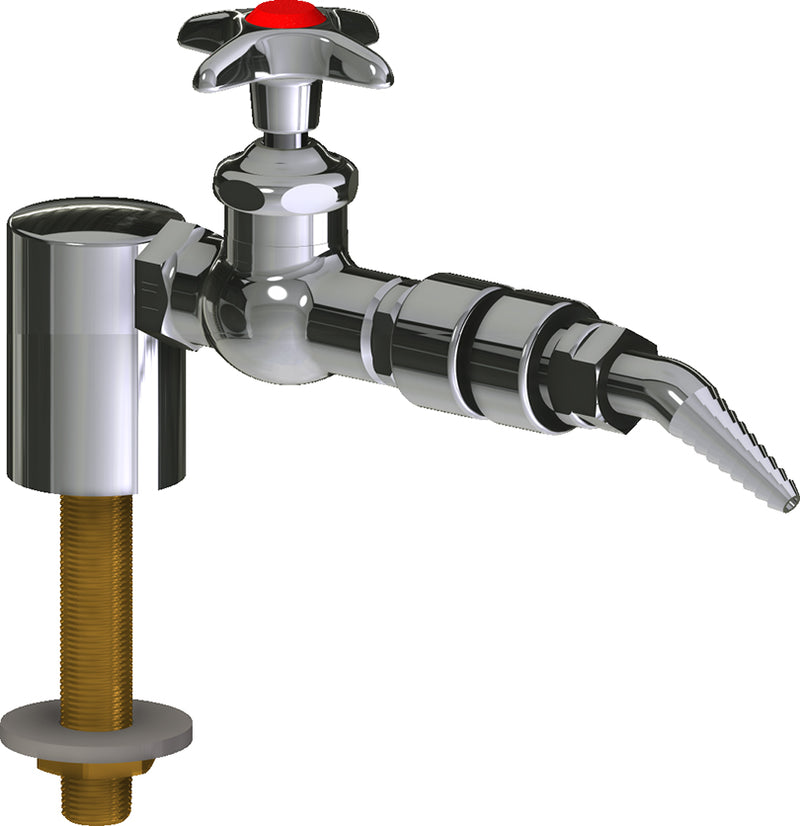

Chicago Faucets LWV1-A52-10 Laboratory Water Valve, Deck-Mount

The Chicago Faucets LWV1-A52-10 is a laboratory water valve with NPT connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. LWV1-A52-10 Deck-mounted laboratory turret with water valve, polished chrome finish. 30-degree angle serrated nozzle with vacuum breaker. Slow compression operating cartridge, left-hand turn. 2-1/2" cross handle with button indexed 'HW'. Inline vacuum breaker with dual checks.

Features

• 30-degree angle serrated nozzle with vacuum breaker
• Vandal Proof 2-1/2" Chrome cross handle with button indexed
• 'HW'
• Slow compression operating cartridge, left-hand
• Inline vacuum breaker with dual checks
• Complies with the requirements of the Buy American Act of 1933.
• Includes: 204-HWJKCP
• Includes: 217-XTLHJKABNF
• Includes: SP3524KJKABCP

Common Questions

Does this have backflow protection?

Yes -- it ships with atmospheric vacuum breaker. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.

Specifications

• Type: Deck-mounted laboratory turret with water valve
• Connection: NPT
• Body Material: Brass
• Application: Domestic Water
• Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
• MPN: LWV1-A52-10
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1
• Service Medium: Water
• Outlet Configuration: Single
• Shank: Not Applicable
• Body Pattern: Straight
• Mount Type: Deck-Mount
• Handle Style: Metal Cross
• Handle Index: Hot
• Outlet Type: 30-Degree Serrated Nozzle
• Cartridge Type: Compression
• Mixing Valve: No Mixing Valve
• Coating / Finish: Polished Chrome
• Max Operating Pressure (PSI): 125
• Backflow Device: Atmospheric Vacuum Breaker
• Lead Time (days): 15
