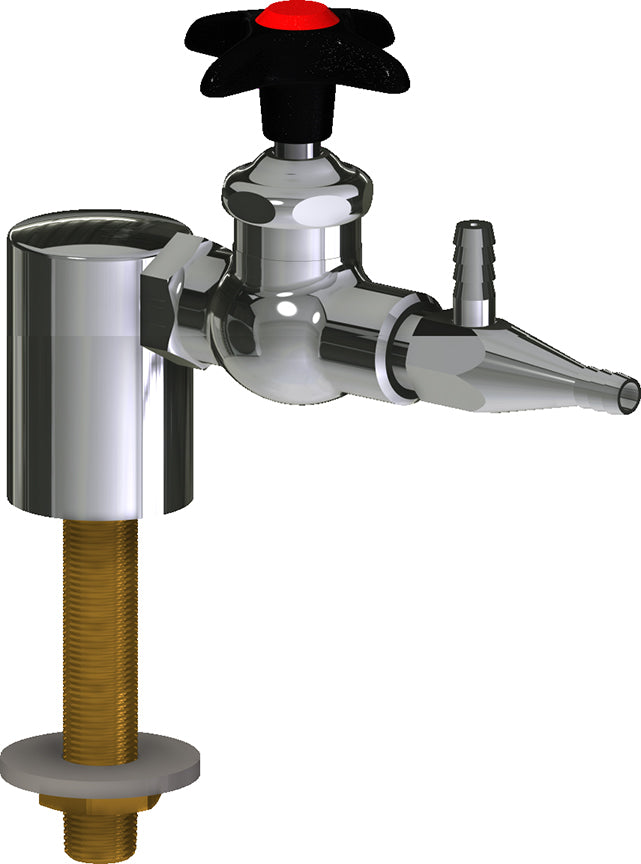

Chicago Faucets LWV1-A34-10 Laboratory Water Valve, Deck-Mount

The Chicago Faucets LWV1-A34-10 is a laboratory water valve with NPT connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. LWV1-A34-10 Deck-mounted laboratory turret with water valve, polished chrome finish. Aspirator pump serrated outlet with vacuum inlet, 4 serrations for laboratory hose, and integral check valve. Slow compression operating cartridge, left-hand turn. 2-1/2" cross handle, black nylon, with button indexed 'HW'.

Features

• Aspirator pump serrated outlet with vacuum inlet, 4 serrations for laboratory hose, and integral check valve
• Vandal Proof 2-1/2" Black cross handle with button indexed 'HW'
• Slow compression operating cartridge, left-hand
• Complies with the requirements of the Buy American Act of 1933.
• Includes: E17JKRCF
• Includes: 205-HWJKNF
• Includes: 217-XTLHJKABNF

Specifications

• Type: Deck-mounted laboratory turret with water valve
• Connection: NPT
• Body Material: Brass
• Application: Domestic Water
• Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
• MPN: LWV1-A34-10
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1
• Service Medium: Water
• Outlet Configuration: Single
• Shank: Not Applicable
• Body Pattern: Straight
• Mount Type: Deck-Mount
• Handle Style: Plastic Cross
• Handle Index: Hot
• Outlet Type: Aspirator Nozzle
• Cartridge Type: Compression
• Mixing Valve: No Mixing Valve
• Coating / Finish: Polished Chrome
• Max Operating Pressure (PSI): 125
• Lead Time (days): 15
