Specifications
Description
The Chicago Faucets LWV1-A33-55 is a laboratory water valve with NPT connections. It features a brass body. Rated to 40°F to 140°F.

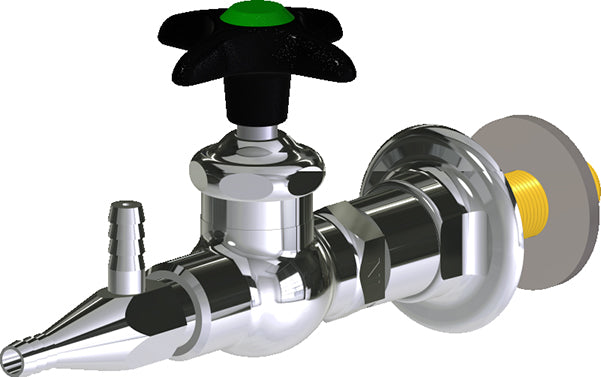

Chicago Faucets No. LWV1-A33-55 Wall-mounted water valve with flange, polished chrome finish. Aspirator pump serrated outlet with vacuum inlet, 4 serrations for laboratory hose, and integral check valve. Slow compression operating cartridge, left-hand turn. 2-1/2" cross handle, black nylon, with button indexed 'CW'.
Features
- Aspirator pump serrated outlet with vacuum inlet, 4 serrations for laboratory hose, and integral check valve
- Vandal Proof 2-1/2" Black cross handle with button indexed 'CW'
- Slow compression operating cartridge, left-hand
- Complies with the requirements of the Buy American Act of 1933.
- Includes: E17JKRCF
- Includes: 205-CWJKNF
- Includes: 217-XTLHJKABNF
Common Questions
- Does this ship with the mounting shank?
- Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.
Specifications
- Type: Wall-mounted water valve with flange
- Connection: NPT
- Body Material: Brass
- Application: Domestic Water
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
- MPN: LWV1-A33-55
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1
- Service Medium: Water
- Outlet Configuration: Single
- Shank: Included
- Body Pattern: Straight
- Mount Type: Wall-Mount
- Handle Style: Plastic Cross
- Handle Index: Cold
- Outlet Type: Aspirator Nozzle
- Cartridge Type: Compression
- Mixing Valve: No Mixing Valve
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 125
- Lead Time (days): 15
Product Information
Dimensions
| End Connection | NPT | — | — |
Details
| Series | LWV1 | Device Type | Wall-mounted water valve with flange |
| Body Material | Brass | Application | Domestic Water |
| Max Temp °F | 140.0 °F | Options | E17JKRCF, 205-CWJKNF, 217-XTLHJKABNF |
| Min Temp °F | 40.0 °F | Baa | USA |
| Body pattern | Straight | Coating | Polished Chrome |
| Handle style | Plastic Cross | Lead time days | 15 |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Cartridge type | Compression |
| Handle index | Cold | Mixing valve | No Mixing Valve |
| Outlet type | Aspirator Nozzle | Media | Water |
| Outlet config | Single | Shank type | Included |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | — |
Compare with similar products




| Series | LWV1
| LWV2
| LWV2
| LWV4
| LWV4
| LWV4
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Wall-mounted water valve with flange
| Single water valve for wall or turret mount
| Single water valve for wall or turret mount
| Wall-mounted hose bibb water faucet with flange
| Wall-mounted hose bibb water faucet with flange
| Wall-mounted hose bibb water faucet with flange
|
| End Connection | NPT
| NPT
| NPT
| NPT
| NPT
| NPT
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
|
| Options | E17JKRCF, 205-CWJKNF, 217-XTLHJKABNF
| E17JKRCF, 205-HWJKNF, 217-X245LJKABNF
| 204-CWJKCP, 1-100XKJKABNF, SP3524KJKABCP
| 205-HWJKNF, 217-X245LJKABNF, E22JKCP
| 205-CWJKNF, 217-X245LJKABNF, E22JKCP
| 204-HWJKCP, 217-X245LJKABNF, E22JKCP
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
