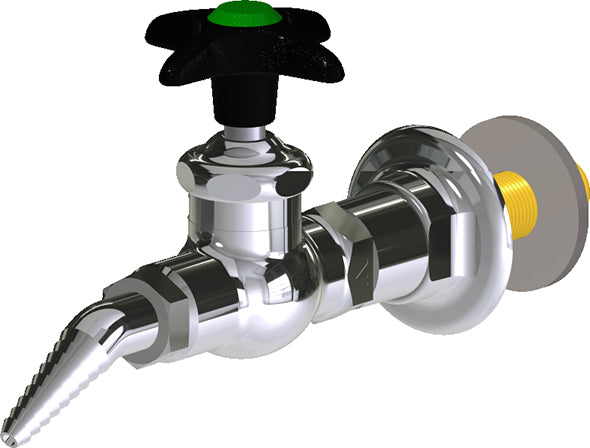

Chicago Faucets LWV1-A23-55 Laboratory Water Valve, Wall-Mount

The Chicago Faucets LWV1-A23-55 is a laboratory water valve with NPT connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. LWV1-A23-55 Wall-mounted water valve with flange, polished chrome finish. Laboratory 30-degree angled nozzle with 10 serrations for laboratory hose. Slow compression operating cartridge, left-hand turn. 2-1/2" cross handle, black nylon, with button indexed 'CW'.

Features

• Laboratory 30-degree angled nozzle with 10 serrations for laboratory hose
• Vandal Proof 2-1/2" Black cross handle with button indexed 'CW'
• Slow compression operating cartridge, left-hand
• Complies with the requirements of the Buy American Act of 1933.
• Includes: E7XTJKCP
• Includes: 205-CWJKNF
• Includes: 217-XTLHJKABNF

Common Questions

Does this ship with the mounting shank?

Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.

Specifications

• Type: Wall-mounted water valve with flange
• Connection: NPT
• Body Material: Brass
• Application: Domestic Water
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
• MPN: LWV1-A23-55
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1
• Service Medium: Water
• Outlet Configuration: Single
• Shank: Included
• Body Pattern: Straight
• Mount Type: Wall-Mount
• Handle Style: Plastic Cross
• Handle Index: Cold
• Outlet Type: 30-Degree Serrated Nozzle
• Cartridge Type: Compression
• Mixing Valve: No Mixing Valve
• Coating / Finish: Polished Chrome
• Max Operating Pressure (PSI): 125
• Lead Time (days): 15
