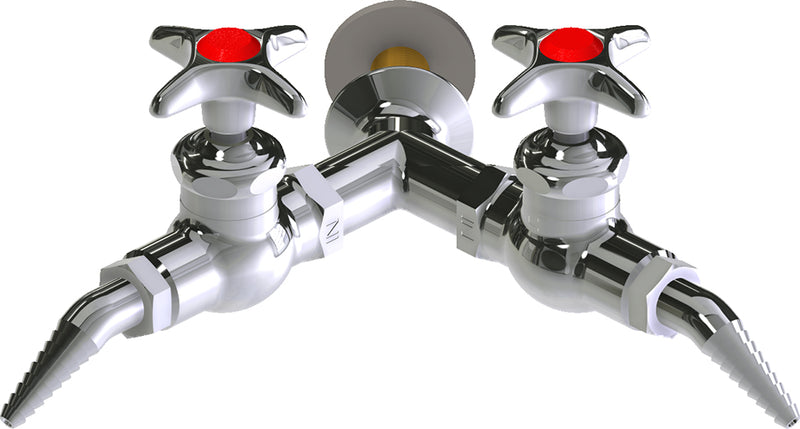

Chicago Faucets LWV1-A22-65 Laboratory Water Valve, Wall-Mount

SKU: LWV1-A22-65
Price:
Sale price$293.06 Regular price$405.26
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $293.06

Free shipping over $200

Key Features

Outlet 30-Degree Serrated Nozzle
Cartridge Compression
Handle Style Metal Cross
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

The Chicago Faucets LWV1-A22-65 is a laboratory water valve with NPT connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. LWV1-A22-65 Wall-mounted water valve with flange, polished chrome finish. Laboratory 30-degree angled nozzle with 10 serrations for laboratory hose. Slow compression operating cartridge, left-hand turn. 2-1/2" cross handle with button indexed 'HW'.

Features

  • Laboratory 30-degree angled nozzle with 10 serrations for laboratory hose
  • Vandal Proof 2-1/2" Chrome cross handle with button indexed
  • 'HW'
  • Slow compression operating cartridge, left-hand
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: E7XTJKCP
  • Includes: 204-HWJKCP
  • Includes: 217-XTLHJKABNF

Common Questions

Does this ship with the mounting shank?
Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.

Specifications

  • Type: Wall-mounted water valve with flange
  • Connection: NPT
  • Body Material: Brass
  • Application: Domestic Water
  • Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
  • MPN: LWV1-A22-65
  • Temperature: 40°F to 140°F
  • Certifications: ASME A112.18.1/CSA B125.1
  • Service Medium: Water
  • Outlet Configuration: Dual 90-Degree
  • Shank: Included
  • Body Pattern: Straight
  • Mount Type: Wall-Mount
  • Handle Style: Metal Cross
  • Handle Index: Hot
  • Outlet Type: 30-Degree Serrated Nozzle
  • Cartridge Type: Compression
  • Mixing Valve: No Mixing Valve
  • Coating / Finish: Polished Chrome
  • Max Operating Pressure (PSI): 125
  • Lead Time (days): 15

Product Information

SKUUPCWarrantySpec SheetInstall Sheet
LWV1-A22-65 611943093808 Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical DownloadDownload

Dimensions

End Connection NPT ——

Details

Series LWV1 Device Type Wall-mounted water valve with flange
Body Material Brass Application Domestic Water
Max Temp °F 140.0 °F Options E7XTJKCP, 204-HWJKCP, 217-XTLHJKABNF
Min Temp °F 40.0 °F Baa USA
Body pattern Straight Coating Polished Chrome
Handle style Metal Cross Lead time days 15
Mount type Wall-Mount Operating pressure max psi 125.0 PSI
Prop65 Yes Cartridge type Compression
Handle index Hot Mixing valve No Mixing Valve
Outlet type 30-Degree Serrated Nozzle Media Water
Outlet config Dual 90-Degree Shank type Included

Certifications & Standards

ASME A112.18.1/CSA B125.1 —
