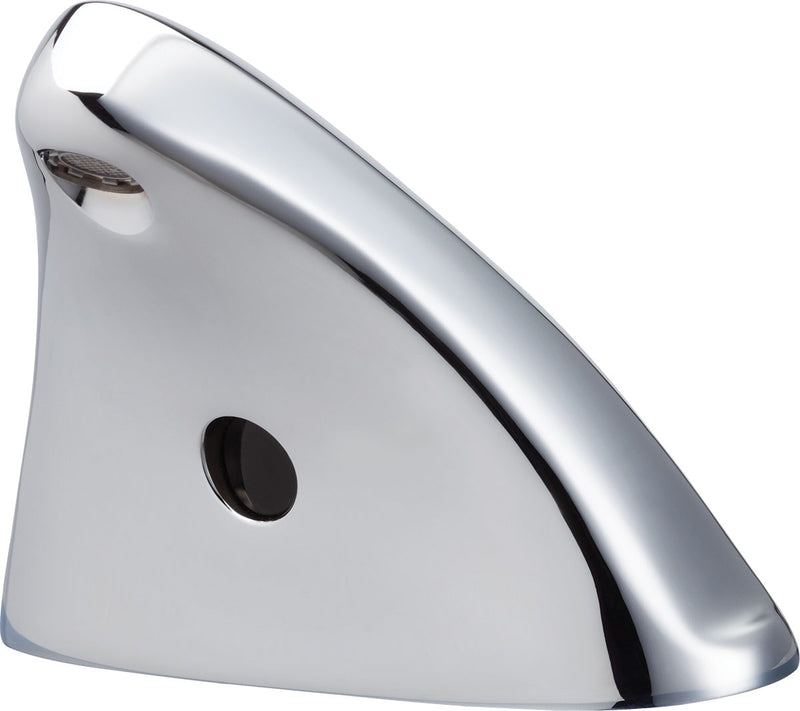

Chicago Faucets ELR-E12E-13ABCPT Lead-Free ELR Sensor Faucet

SKU: ELR-E12E-13ABCPT
Price:
Sale price$904.78 Regular price$1,251.18
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $904.78

Free shipping over $200

Key Features

Type Touchless ligature resistant faucet
Power Source DC (Battery)
Mixing Thermostatic Mixing Valve
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

The Chicago Faucets ELR-E12E-13ABCPT is a lead-free ELR sensor faucet powered by DC (Battery). It includes a thermostatic mixing valve. It delivers 1.0 GPM. This model is certified lead-free for potable-water installations.

Chicago Faucets No. ELR-E12E-13ABCP, Electronic ligature resistant faucet with dual-beam infrared sensor. Integral spout, chrome plated. 4" deck mount. 1.0 GPM (3.8 L/min) vandal-proof, pressure compensating, Econo-Flo, laminar flow. Dual supply for hot and cold water service. Powered from 4 "AA" Alkaline Batteries (Included) - Up to 5 Year Battery Life. Flexible supply hoses included. Pre- assembled with Concealed Internal Thermostatic Control Mixer. Multiple field-adjustable modes and ranges. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, ASSE 1070, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen). *DISCLAIMER: This product, when installed in accordance with the Installation Instructions, is designed to decrease the probability that it may be utilized as an apparatus for ligature. Chicago Faucets does not represent or warrant that this product is able to prevent death or injury, or resist all ligature attachment, and this product is not a substitute for the proper evaluation, treatment, and supervision of persons at risk of suicide. Chicago Faucets makes no express or implied warranties regarding the ability of the product to prevent death or injury or resist all ligature attachment.

Features

  • Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box
  • 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds.
  • Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
  • Faucets CF Connect App.
  • Internal Antenna Specifications: Peak Gain of the antenna: +1.51 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC03
  • 4" fixed centers
  • Vandal Proof Pressure compensating laminar flow outlet, 1.0 GPM
  • ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: 244.170.00.1
  • Includes: ELR-13KJKABNF

Common Questions

How is this faucet powered, and what is the battery life?
This faucet runs on battery power (4x AA Alkaline Batteries (Included)). Chicago Faucets states a battery life of Up to 5 Years. No electrical wiring or transformer is needed -- it installs anywhere a manual faucet does.
Does it include scald protection?
Yes. It has a built-in ASSE 1070 thermostatic mixing valve, so the delivered water temperature is limited even if the hot supply runs too hot -- the code-required protection for K-12, healthcare and similar occupancies.
How long does the water run before it shuts off?
The sensor holds the water on for 40 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
Is this faucet ADA compliant?
Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
Is this faucet lead-free?
Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.

Specifications

  • Type: Touchless ligature resistant faucet
  • Pack Quantity: 1
  • Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
  • MPN: ELR-E12E-13ABCPT
  • Certifications: ASME A112.18.1/CSA B125.1, ADA, ASSE-1070, NSF-61, NSF-372, WaterSense
  • Lead-Free: Yes
  • Power Source: DC (Battery)
  • Run Time (s): 40
  • Connectivity: Bluetooth
  • Mixing Valve: Thermostatic Mixing Valve
  • Spout Type: Integral
  • Centers: 4"
  • Outlet Type: Laminar (Non-Aerating)
  • Pressure Compensating: Yes
  • Mount Type: Deck-Mount
  • Finish: Polished Chrome
  • Flow Rate (GPM): 1.0
  • Connection: Flexible Supply Hoses
  • Vandal Resistant: Yes
  • Lead Time (days): 5

Product Information

SKUUPCWarrantySpec Sheet
ELR-E12E-13ABCPT 611943161064 Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical Download

Dimensions

End Connection Flexible Supply Hoses ——

Details

Series ELR Device Type Touchless ligature resistant faucet
Lead Free Yes Pack Qty 1
Options 244.170.00.1, ELR-13KJKABNF Baa USA
Coating Polished Chrome Flow rate gpm 1.0 GPM
Lead time days 5 Mount type Deck-Mount
Prop65 Yes Vandal resistant Yes
Centers 4" Mixing valve Thermostatic Mixing Valve
Outlet type Laminar (Non-Aerating) Pressure compensating Yes
Spout type Integral Connectivity Bluetooth
Power source DC (Battery) Run time s 40

Certifications & Standards

ASME A112.18.1/CSA B125.1 ADA
ASSE-1070 NSF-61
NSF-372 WaterSense
