Specifications
Description

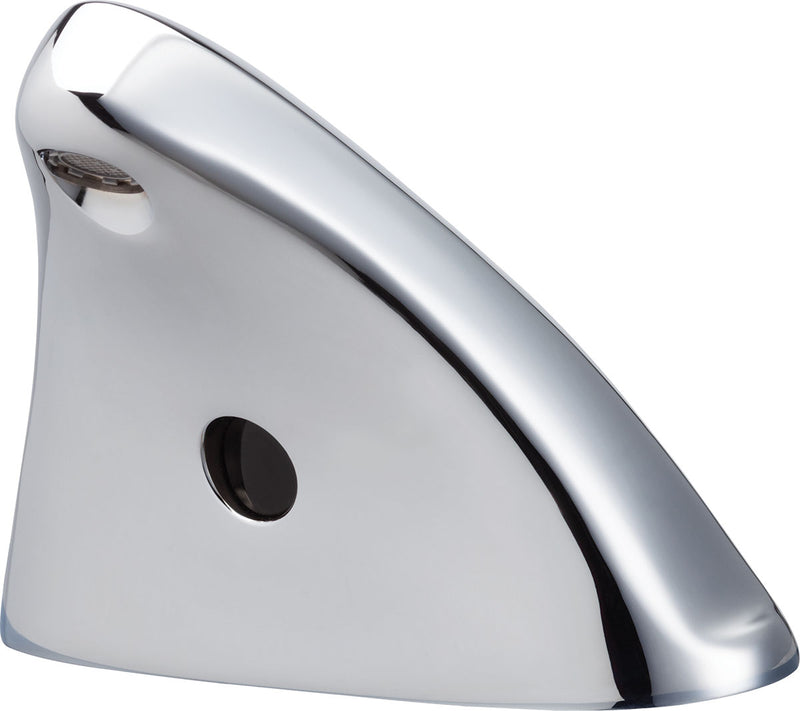

The Chicago Faucets ELR-E12E-43ABCPT is a lead-free ELR sensor faucet powered by AC (Plug-In). It includes a thermostatic mixing valve. It delivers 1.0 GPM. This model is certified lead-free for potable-water installations.
Chicago Faucets No. ELR-E12E-43ABCP, Electronic ligature resistant faucet with dual-beam infrared sensor. Integral spout, chrome plated. 4" deck mount. 1.0 GPM (3.8 L/min) vandal-proof, pressure compensating, Econo-Flo, laminar flow. Dual supply for hot and cold water service. Power supply from 120 VAC, 60 Hz to 6 VDC (Order Separately). Flexible supply hoses included. Pre-assembled with Concealed Internal Thermostatic Control Mixer. Multiple field-adjustable modes and ranges. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, ASSE 1070, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).
Features
- Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box
- 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds.
- Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
- Faucets CF Connect App.
- Internal Antenna Specifications: Peak Gain of the antenna: +1.51 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC03
- 4" fixed centers
- Vandal Proof Pressure compensating laminar flow outlet, 1.0 GPM
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: 244.170.00.1
- Includes: ELR-13KJKABNF
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet is powered by a plug-in AC transformer.
- Does it include scald protection?
- Yes. It has a built-in ASSE 1070 thermostatic mixing valve, so the delivered water temperature is limited even if the hot supply runs too hot -- the code-required protection for K-12, healthcare and similar occupancies.
- How long does the water run before it shuts off?
- The sensor holds the water on for 40 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
- Is this faucet ADA compliant?
- Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
- Is this faucet lead-free?
- Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.
Specifications
- Type: Touchless ligature resistant faucet
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
- MPN: ELR-E12E-43ABCPT
- Certifications: ASME A112.18.1/CSA B125.1, ADA, ASSE-1070, NSF-61, NSF-372, WaterSense
- Lead-Free: Yes
- Power Source: AC (Plug-In)
- Run Time (s): 40
- Connectivity: Bluetooth
- Mixing Valve: Thermostatic Mixing Valve
- Spout Type: Integral
- Centers: 4"
- Outlet Type: Laminar (Non-Aerating)
- Pressure Compensating: Yes
- Mount Type: Deck-Mount
- Finish: Polished Chrome
- Flow Rate (GPM): 1.0
- Connection: Flexible Supply Hoses
- Vandal Resistant: Yes
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| ELR-E12E-43ABCPT | 611943168179 | Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical | Download |
Dimensions
| End Connection | Flexible Supply Hoses | — | — |
Details
| Series | ELR | Device Type | Touchless ligature resistant faucet |
| Lead Free | Yes | Pack Qty | 1 |
| Options | 244.170.00.1, ELR-13KJKABNF | Baa | USA |
| Coating | Polished Chrome | Flow rate gpm | 1.0 GPM |
| Lead time days | 5 | Mount type | Deck-Mount |
| Prop65 | Yes | Vandal resistant | Yes |
| Centers | 4" | Mixing valve | Thermostatic Mixing Valve |
| Outlet type | Laminar (Non-Aerating) | Pressure compensating | Yes |
| Spout type | Integral | Connectivity | Bluetooth |
| Power source | AC (Plug-In) | Run time s | 40 |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| ASSE-1070 | NSF-61 |
| NSF-372 | WaterSense |
