Specifications
Description

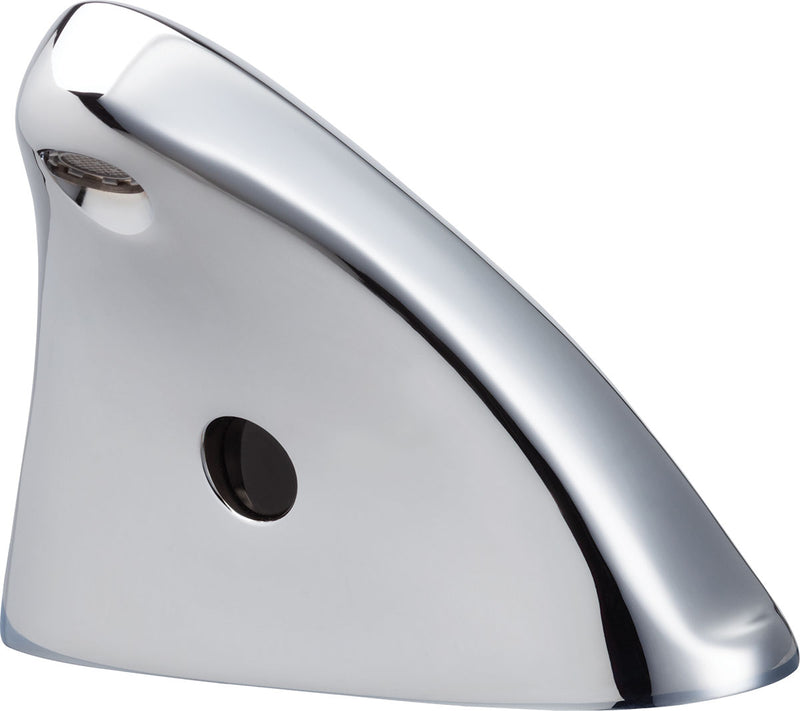

The Chicago Faucets ELR-E12A-61ABCPT is a lead-free ELR sensor faucet powered by LTPS (Turbine). It delivers 0.5 GPM. This model is certified lead-free for potable-water installations.
Chicago Faucets No. ELR-E12A-61ABCP, Electronic ligature resistant faucet with dual-beam infrared sensor. Integral spout, chrome plated. 4" deck mount. 0.5 GPM (1.9 L/min) vandal-proof, pressure compensating, Econo-Flo, non-aerating spray. Single supply for tempered water. Powered by Long Term Power System (LTPS) - provides maintenance-free power for 15 years or more, depending on usage. Flexible supply hose included. Multiple field-adjustable modes and ranges. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen). *DISCLAIMER: This product, when installed in accordance with the Installation Instructions, is designed to decrease the probability that it may be utilized as an apparatus for ligature. Chicago Faucets does not represent or warrant that this product is able to prevent death or injury, or resist all ligature attachment, and this product is not a substitute for the proper evaluation, treatment, and supervision of persons at risk of suicide. Chicago Faucets makes no express or implied warranties regarding the ability of the product to prevent death or injury or resist all ligature attachment.
Features
- 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds.
- Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
- Faucets CF Connect App.
- Internal Antenna Specifications: Peak Gain of the antenna: +1.51 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC03
- 4" fixed centers
- Vandal Proof Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: 243.145.AB.1
- Includes: ELR-11KJKABNF
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet uses Chicago Faucets' Long Term Power System (LTPS), a self-contained turbine that needs no battery replacement or wiring. Chicago Faucets rates it maintenance-free for 15+ Years (Maintenance-Free).
- How long does the water run before it shuts off?
- The sensor holds the water on for 40 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
- Is this faucet ADA compliant?
- Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
- Is this faucet lead-free?
- Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.
Specifications
- Type: Touchless ligature resistant faucet
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
- MPN: ELR-E12A-61ABCPT
- Certifications: ASME A112.18.1/CSA B125.1, ADA, NSF-372, NSF-61
- Lead-Free: Yes
- Power Source: LTPS (Turbine)
- Run Time (s): 40
- Connectivity: Bluetooth
- Spout Type: Integral
- Centers: 4"
- Outlet Type: Spray (Non-Aerating)
- Pressure Compensating: Yes
- Mount Type: Deck-Mount
- Finish: Polished Chrome
- Flow Rate (GPM): 0.5
- Vandal Resistant: Yes
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| ELR-E12A-61ABCPT | 611943168100 | Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical | Download |
Details
| Series | ELR | Device Type | Touchless ligature resistant faucet |
| Lead Free | Yes | Pack Qty | 1 |
| Options | 243.145.AB.1, ELR-11KJKABNF | Baa | USA |
| Coating | Polished Chrome | Flow rate gpm | 0.5 GPM |
| Lead time days | 5 | Mount type | Deck-Mount |
| Prop65 | Yes | Vandal resistant | Yes |
| Centers | 4" | Outlet type | Spray (Non-Aerating) |
| Pressure compensating | Yes | Spout type | Integral |
| Connectivity | Bluetooth | Power source | LTPS (Turbine) |
| Run time s | 40 | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| NSF-372 | NSF-61 |
Compare with similar products






| Series | ELR
| ELR
| ELR
| ELR
| ELR
| ELR
|
| Warranty | Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
|
| Spec Sheet | ||||||
| Device Type | Touchless ligature resistant faucet
| Touchless ligature resistant faucet
| Touchless ligature resistant faucet
| Touchless ligature resistant faucet
| Touchless ligature resistant faucet
| Touchless ligature resistant faucet
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | — | Flexible Supply Hoses
| Flexible Supply Hoses
| — | Flexible Supply Hoses
| Flexible Supply Hoses
|
| Certifications | ASME A112.18.1/CSA B125.1, ADA, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1070, NSF-372, NSF-61, WaterSense
| ASME A112.18.1/CSA B125.1, ADA, NSF-372, NSF-61, WaterSense
| ASME A112.18.1/CSA B125.1, ADA, NSF-372, NSF-61, WaterSense
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1070, NSF-61, NSF-372, WaterSense
| ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372, WaterSense
|
| Pack Qty | 1
| 1
| 1
| 1
| 1
| 1
|
| Options | 243.145.AB.1, ELR-11KJKABNF
| 244.170.00.1, ELR-13KJKABNF
| 244.170.00.1, ELR-12KJKABNF
| 244.170.00.1, ELR-11KJKABNF
| 244.170.00.1, ELR-13KJKABNF
| 244.170.00.1, ELR-12KJKABNF
|
