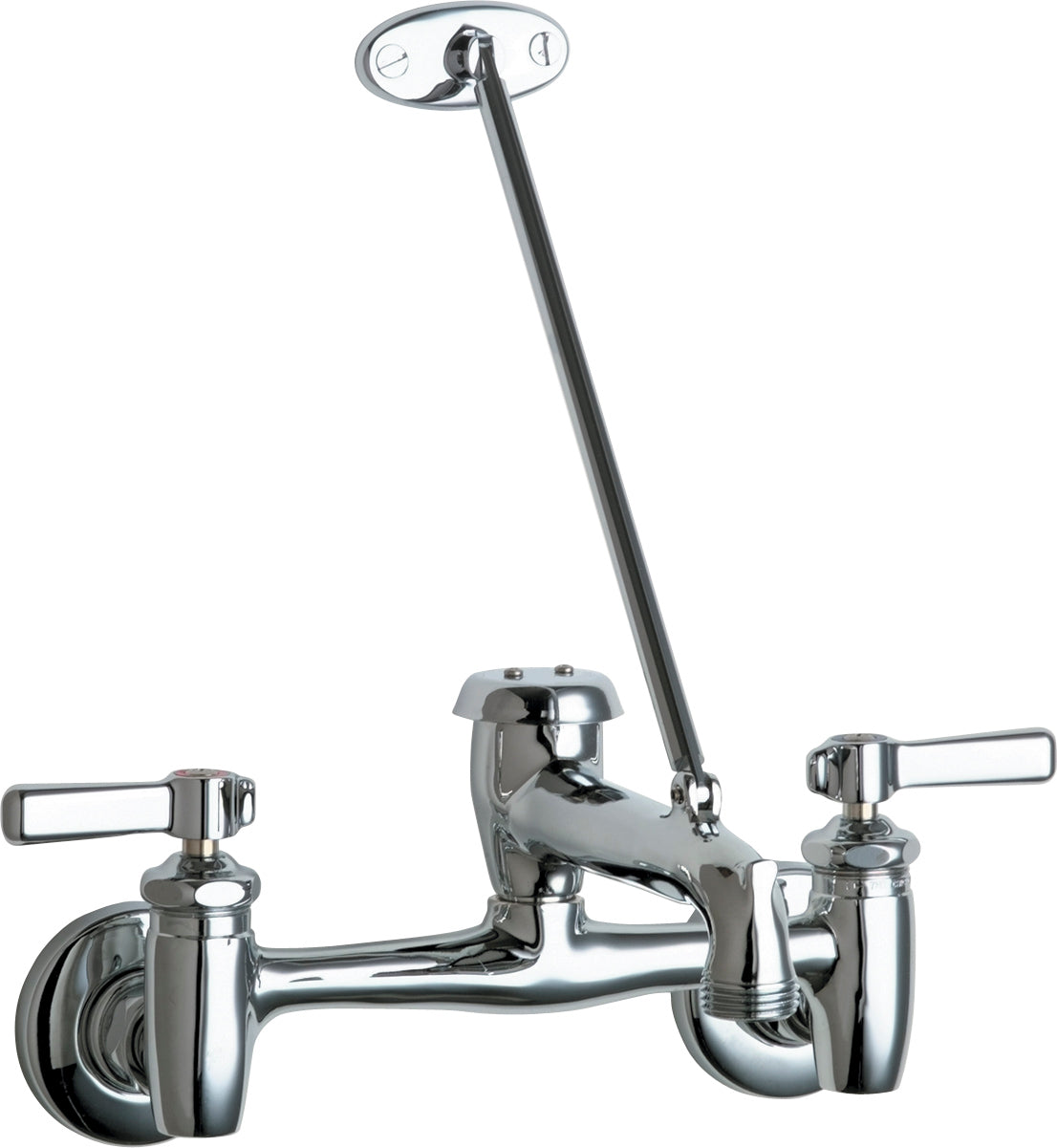

The Chicago Faucets 897-MPCCP is a wall-mounted manual faucet with 8" centers with NPT connections. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. 897-MPCCP, Sink Faucet for hot and cold water, wall-mounted with 7-5/8" - 8-3/8" adjustable centers. Body and spout made of durable cast brass with polished chrome finish. Includes integral hot and cold water supply stops. Vacuum breaker spout with pail hook and wall brace. 2-3/8" metal, vandal-proof, lever handles with sixteen-point, tapered broach and secured blue and red index buttons. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. Adjustable supply arms include 1/2" NPT female union nut and integral check valves. 3/4" male hose thread outlet. Round wall escutcheons. Integral stop valves for servicing the faucet. Master pack quantity of 8. NOTE: Atmospheric vacuum breaker is NOT intended for continuous pressure applications. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1.
Features
- Handles include color-coded index
- Integral supply stops
- 8" body, adjustable arms 7-5/8" - 8-3/8" centers
- Vandal Proof 2-3/8" Lever handle (pair)
- Ceramic 1/4-turn operating cartridge, right-hand
- Ceramic 1/4-turn operating cartridge, left-hand
- Arm, 3/16" offset
- Complies with the requirements of the Buy American Act of 1933.
- CFNow! Item Ships in 3 Days
Common Questions
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with 2 handles, a ceramic 1/4-turn cartridge, a hose thread outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 8-3/8".
Specifications
- Type: Wall-mounted manual faucet with 8" centers
- Size: 1/2"
- Connection: NPT
- Body Material: Brass
- Pack Quantity: 8
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 897-MPCCP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ASSE-1001
- Centers: 8-3/8"
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Ceramic 1/4-Turn
- Outlet Type: Hose Thread
- Mount Type: Wall-Mount
- Handle Style: Lever
- Coating / Finish: Polished Chrome
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Backflow Device: Atmospheric Vacuum Breaker
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 897-MPCCP | 611943567484 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | 897 | Device Type | Wall-mounted manual faucet with 8" centers |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Pack Qty | 8 | Min Temp °F | 40.0 °F |
| Baa | USA | Backflow device | Atmospheric Vacuum Breaker |
| Coating | Polished Chrome | Handle style | Lever |
| Lead time days | 3 | Mount type | Wall-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Quick ship | Yes | Vandal resistant | Yes |
| Cartridge type | Ceramic 1/4-Turn | Centers | 8-3/8" |
| Handle count | 2 | Handle index | Hot and Cold |
| Outlet type | Hose Thread | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ASSE-1001 |
Compare with similar products
| Series | 897
| 897
| 737
| 737
| 305
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | |||||
| Install Sheet | — | — | |||
| Device Type | Wall-mounted manual faucet with 8" centers
| Wall-mounted manual faucet with 8" centers
| Wall-mounted manual faucet with 3-3/8" centers
| Wall-mounted manual faucet with 3-3/8" centers
| Wall-mounted manual faucet with adjustable centers
|
| Size Nominal | 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| End Connection | NPT
| NPT
| NPT
| NPT
| NPT
|
| Body Material | Brass
| Brass
| — | — | — |
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, ASSE-1001
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1001
| ADA, ASME A112.18.1/CSA B125.1
| ADA, ASME A112.18.1/CSA B125.1
| ADA, ASME A112.18.1/CSA B125.1, ASSE-1001
|
| Pack Qty | 8
| 1
| 1
| 1
| 1
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
