Specifications
Description

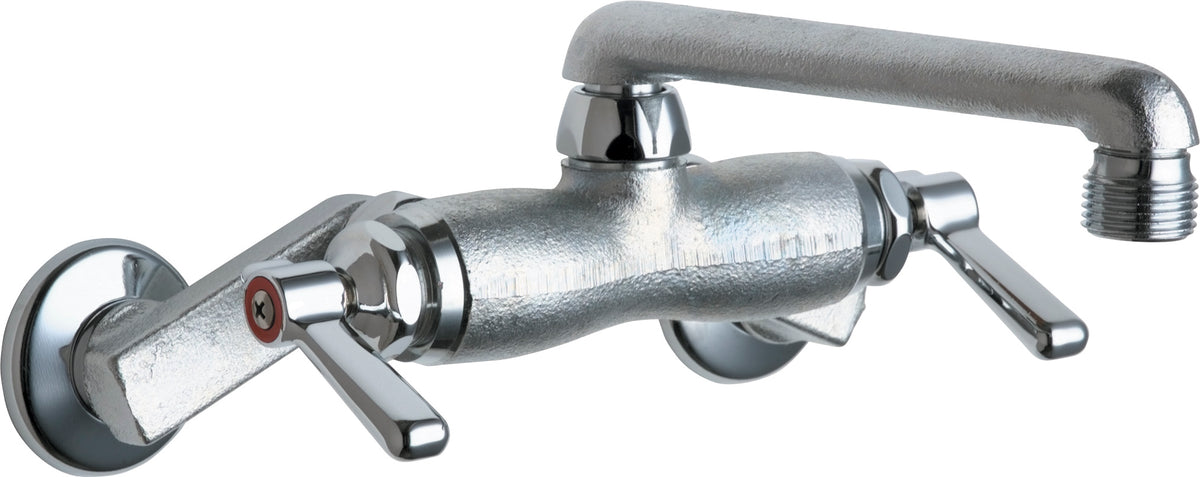

The Chicago Faucets 737-RCF is a wall-mounted manual faucet with 3-3/8" centers with NPT connections. It is rated to 40°F to 140°F.
Chicago Faucets No. 737-RCF, Sink Faucet for hot and cold water, wall mounted 3-3/8" body with adjustable arms for 3" - 8-3/8" centers. Rough chrome plated. S-Type swing spout, 6" center-to-center. Full-flow outlet with 3/4" male hose thread. 2-3/8" metal, vandal-proof, lever handles with sixteen-point, tapered broach and secured blue and red index buttons. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. 2-1/2" offset inlet supply arm with 1/2" NPT female thread inlet.
Features
- Handles include color-coded index
- 3-3/8" body, adjustable arms 3" - 8-3/8" centers
- 6" S-type swing spout
- 3/4" Hose thread male outlet, full flow
- Vandal Proof 2-3/8" Lever handle (pair)
- Quaturn® compression operating cartridge, right-hand
- Quaturn® compression operating cartridge, left-hand
- 2-1/2" Offset inlet supply arm
- Complies with the requirements of the Buy American Act of 1933.
- CFNow! Item Ships in 3 Days
Common Questions
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with 2 handles, a quaturn compression cartridge, a hose thread outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 8-3/8".
Specifications
- Type: Wall-mounted manual faucet with 3-3/8" centers
- Size: 1/2"
- Connection: NPT
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 737-RCF
- Temperature: 40°F to 140°F
- Certifications: ADA, ASME A112.18.1/CSA B125.1
- Centers: 8-3/8"
- Spout Motion: Swing
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Quaturn Compression
- Outlet Type: Hose Thread
- Mount Type: Wall-Mount
- Handle Style: Lever
- Coating / Finish: Rough Chrome
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Hose Length (in): 4.0
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | 737 | Device Type | Wall-mounted manual faucet with 3-3/8" centers |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Rough Chrome | Handle style | Lever |
| Hose length in | 4.0 | Lead time days | 3 |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Quick ship | Yes |
| Vandal resistant | Yes | Cartridge type | Quaturn Compression |
| Centers | 8-3/8" | Handle count | 2 |
| Handle index | Hot and Cold | Outlet type | Hose Thread |
| Spout motion | Swing | — | — |
Certifications & Standards
| ADA | ASME A112.18.1/CSA B125.1 |
