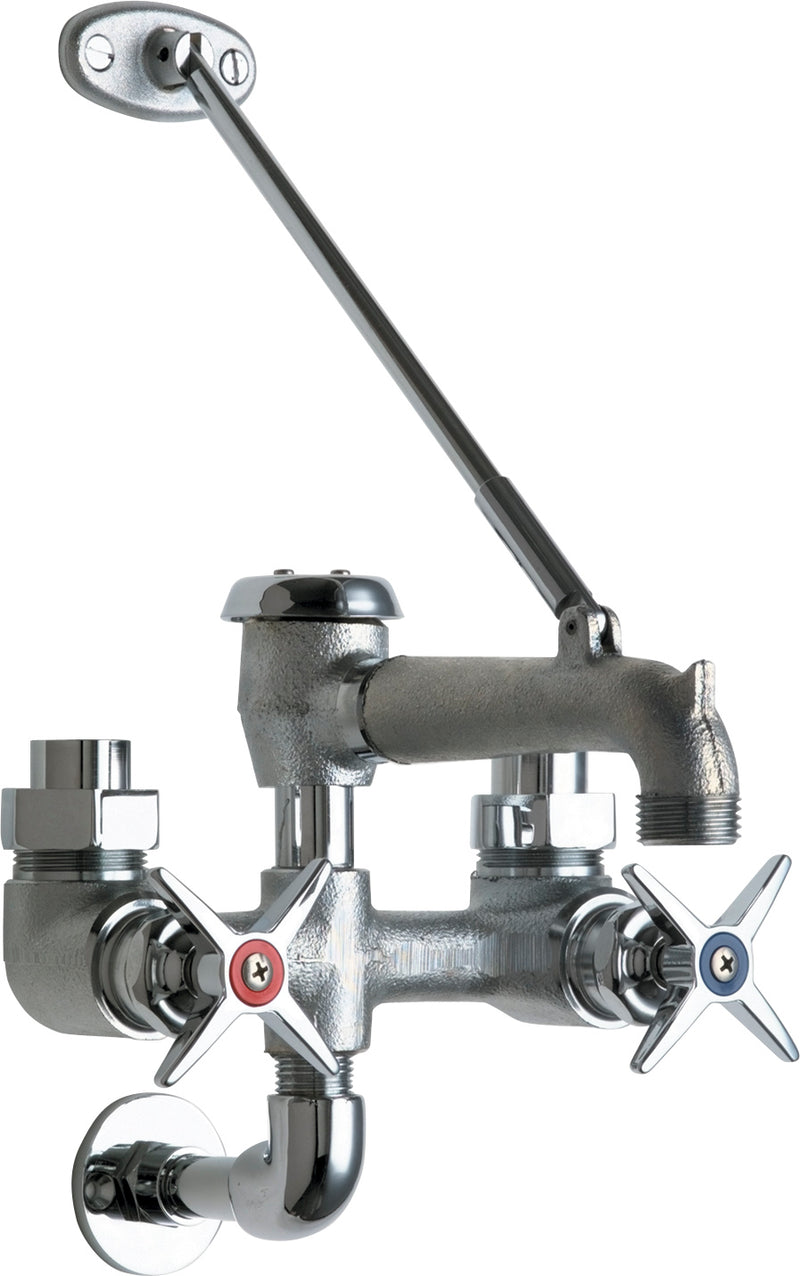

Chicago Faucets 835-XKCRCF Wall-mounted manual faucet with 6" centers, NPSM

The Chicago Faucets 835-XKCRCF is a wall-mounted manual faucet with 6" centers with NPSM connections. It is rated to 40°F to 140°F.

Chicago Faucets No. 835-XKCRCF, Service Sink Faucet for hot and cold water, exposed wall-mount, rough chrome plated. Top-mounted supplies with 6" fixed centers. Rigid spout with vacuum breaker, pail hook, and wall brace, 5-3/4" center-to-center. 3" metal cross handles with eight-point, tapered broach and secured blue and red index buttons. Ceramic quarter-turn cartridge with integrated check valve, features square, tapered stem. 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser. NOTE: Atmospheric vacuum breaker is NOT intended for continuous pressure applications.

Features

• Handles include color-coded index
• 6" fixed centers
• Vandal Proof 3" Cross handle (pair)
• Ceramic 1/4-turn operating cartridge with integrated check valve, left-hand
• Vacuum breaker assembly
• Complies with the requirements of the Buy American Act of 1933.

Common Questions

Is it vandal-resistant?

Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.

What does it include?

It ships with 2 handles, a ceramic 1/4-turn cartridge, a vacuum breaker outlet.

Will this fit my existing holes?

Match the mounting centers first: this model is 6".

Specifications

• Type: Wall-mounted manual faucet with 6" centers
• Size: 1/2"
• Connection: NPSM
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 835-XKCRCF
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1, ASSE-1001
• Centers: 6"
• Body Style: Exposed
• Spout Motion: Rigid
• Number of Handles: 2
• Handle Index: Hot and Cold
• Cartridge Type: Ceramic 1/4-Turn
• Outlet Type: Vacuum Breaker Outlet
• Mount Type: Wall-Mount
• Handle Style: Cross
• Coating / Finish: Rough Chrome
• Vandal Resistant: Yes
• Max Operating Pressure (PSI): 125
• Backflow Device: Atmospheric Vacuum Breaker
• Lead Time (days): 5
