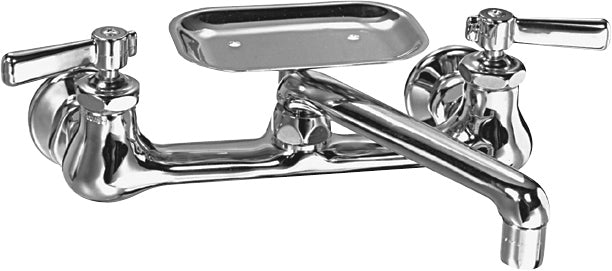

The Chicago Faucets 540-E35ABCP is a lead-free wall-mounted manual faucet with adjustable centers with NPT connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 540-E35ABCP, Sink Faucet for hot and cold water, wall-mounted with adjustable arms for 7-1/4" - 8-3/4" centers. Chrome plated. Includes soap dish. S-Type swing spout, 6" center-to-center. 1.5 GPM (5.7 L/min) pressure compensating Softflo® aerator. 2-3/8" metal, vandal-proof, lever handles with sixteen-point, tapered broach and secured blue and red index buttons. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. 3/8" offset inlet supply arm with 1/2" NPT female thread inlet. 2-5/16" diameter slip flange. ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and Certified to NSF/ANSI 61, Section 9.
Features
- Handles include color-coded index
- 8" body, adjustable arms 7-1/4" - 8-3/4" centers
- 6" S-type swing spout
- Pressure compensating Softflo® aerator, 1.5 GPM
- Vandal Proof 2-3/8" Lever handle (pair)
- Quaturn® compression operating cartridge, right-hand
- Quaturn® compression operating cartridge, left-hand
- 3/8" Offset inlet supply arm
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is this safe for drinking water?
- Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Does it meet water-conservation codes?
- Yes, it is certified to WaterSense.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with 2 handles, a quaturn compression cartridge, an aerator outlet.
Specifications
- Type: Wall-mounted manual faucet with adjustable centers
- Size: 1/2"
- Connection: NPT
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 540-E35ABCP
- Temperature: 40°F to 140°F
- Certifications: ADA, ASME A112.18.1/CSA B125.1, NSF-61, WaterSense
- Lead-Free: Yes
- Centers: 8-3/4"
- Spout Motion: Swing
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Quaturn Compression
- Outlet Type: Aerator
- Pressure Compensating: Yes
- Mount Type: Wall-Mount
- Handle Style: Lever
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 1.5
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | 540 | Device Type | Wall-mounted manual faucet with adjustable centers |
| Lead Free | Yes | Body Material | Brass |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Polished Chrome | Flow rate gpm | 1.5 GPM |
| Handle style | Lever | Lead time days | 5 |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Vandal resistant | Yes |
| Cartridge type | Quaturn Compression | Centers | 8-3/4" |
| Handle count | 2 | Handle index | Hot and Cold |
| Outlet type | Aerator | Pressure compensating | Yes |
| Spout motion | Swing | — | — |
Certifications & Standards
| ADA | ASME A112.18.1/CSA B125.1 |
| NSF-61 | WaterSense |
Compare with similar products
| Series | 540
| 50
| 895
| 786
| 772
| 2304
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | ||||||
| Install Sheet | — | — | — | |||
| Device Type | Wall-mounted manual faucet with adjustable centers
| Deck-mounted manual faucet, single-hole mounting
| Deck-mounted manual faucet with 4" centers
| Deck-mounted manual faucet with 8" centers
| Deck-mounted manual faucet with 3-3/8" centers
| Deck-mounted manual faucet, three-hole mounting
|
| Size Nominal | 1/2"
| 3/8"
| 1/2"
| 1/2"
| 1/2"
| 3/8"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPT
| Compression
| NPSM
| NPSM
| NPT
| Compression
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ADA, ASME A112.18.1/CSA B125.1, NSF-61, WaterSense
| ASME A112.18.1/CSA B125.1, ADA, NSF-61, WaterSense
| ASME A112.18.1/CSA B125.1, ADA, NSF-61, WaterSense
| ADA, ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, NSF-61, WaterSense
|
| Pack Qty | 1
| 1
| 1
| 1
| 1
| 1
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
