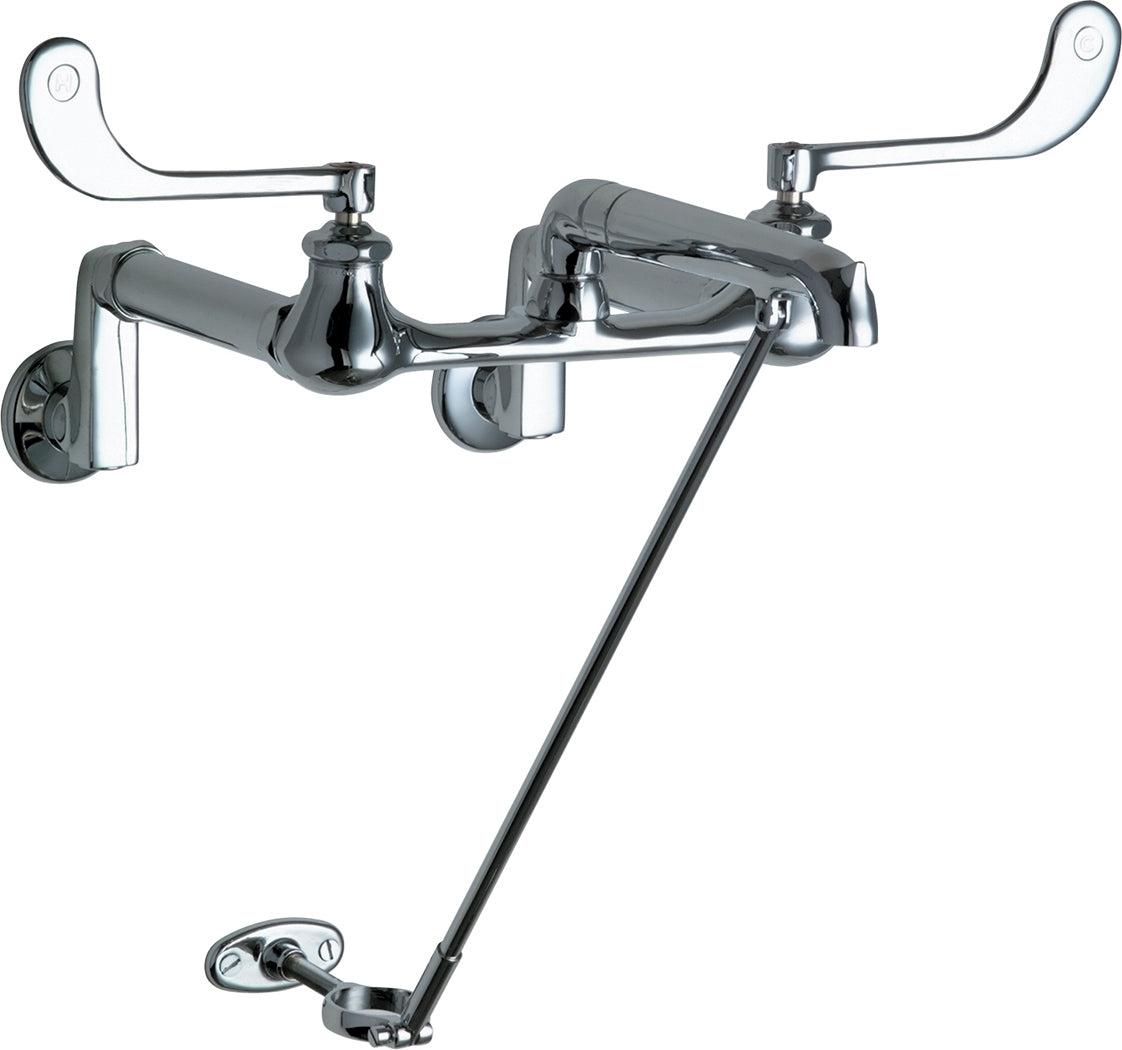

The Chicago Faucets 815-XKCP is a wall-mounted manual faucet with adjustable centers with NPT connections. It is rated to 40°F to 140°F.
Chicago Faucets No. 815-XKCP, Sink Faucet for hot and cold water, wall-mounted with adjustable arms for 3"-13" centers. Chrome plated. Rigid spout with pail hook and pipe support, 7-1/8" center-to-center. 6" metal elbow blade handles with sixteen-point, tapered broach and secured blue and red index buttons. Ceramic quarter-turn cartridge, features square, tapered stem. 2-1/2" offset supply arm with integral shut-off stop, 1/2" NPT female thread inlet. 2-5/16" diameter slip flange. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1001.
Features
- 2-5/16" diameter slip flange
- 8" body, adjustable arms 3" - 13" centers
- 7-1/8" Rigid spout with pail hook and pipe support
- Vandal Proof 6" Elbow blade handle (pair)
- Ceramic 1/4-turn operating cartridge, right-hand
- Ceramic 1/4-turn operating cartridge, left-hand
- 2-1/2" Offset supply arm with integral shutoff stop
- Straight 5" long supply inlet extension, installs between supply arm and faucet
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with 2 handles, a ceramic 1/4-turn cartridge.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 13".
Specifications
- Type: Wall-mounted manual faucet with adjustable centers
- Size: 1/2"
- Connection: NPT
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 815-XKCP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ADA
- Centers: 13"
- Spout Motion: Rigid
- Spout Reach (in): 13.0
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Ceramic 1/4-Turn
- Mount Type: Wall-Mount
- Handle Style: Elbow Blade
- Coating / Finish: Polished Chrome
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | 815 | Device Type | Wall-mounted manual faucet with adjustable centers |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Polished Chrome | Handle style | Elbow Blade |
| Lead time days | 5 | Mount type | Wall-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Vandal resistant | Yes | Cartridge type | Ceramic 1/4-Turn |
| Centers | 13" | Handle count | 2 |
| Handle index | Hot and Cold | Spout motion | Rigid |
| Spout reach in | 13.0 | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
