Description

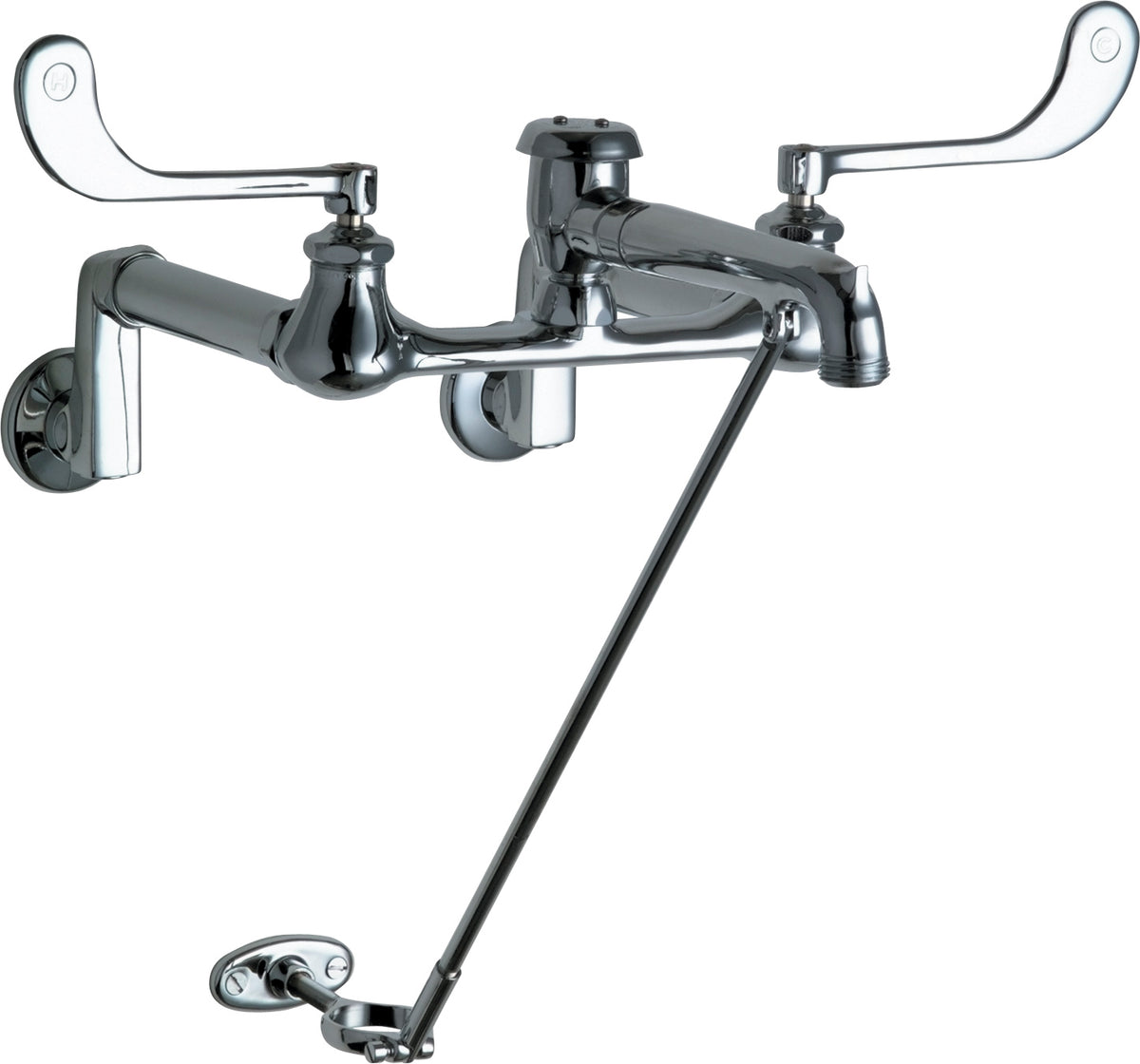

The Chicago Faucets 815-VBCP is a wall-mounted manual faucet with adjustable centers with NPT connections. It is rated to 40°F to 140°F.
Chicago Faucets No. 815-VBCP, Sink Faucet for hot and cold water, wall-mounted with adjustable arms for 3"-13" centers. Chrome plated. Rigid spout with pail hook and pipe support, 7-1/2" center-to-center. 8.5 GPM flow at 60 PSI. 6" metal elbow blade handles with sixteen- point, tapered broach and secured blue and red index buttons. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. 2-1/2" offset supply arm with integral shut-off stop, 1/2" NPT female thread inlet. 3/4" male hose thread outlet. 5" inlet supply extensions. 2-5/16" diameter slip flange. NOTE: Atmospheric vacuum breaker is NOT intended for continuous pressure applications. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1001.
Features
- 2-5/16" diameter slip flange
- 8" body, adjustable arms 3" - 13" centers
- 7-1/2" Rigid spout with pail hook and pipe support
- Vandal Proof 6" Elbow blade handle (pair)
- Quaturn® compression operating cartridge, right-hand
- Quaturn® compression operating cartridge, left-hand
- 2-1/2" Offset supply arm with integral shutoff stop
- Straight 5" long supply inlet extension, installs between supply arm and faucet
- Vacuum breaker assembly
- Complies with the requirements of the Buy American Act of 1933.
- CFNow! Item Ships in 3 Days
Common Questions
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with 2 handles, a quaturn compression cartridge, a hose thread outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 13".
Specifications
- Type: Wall-mounted manual faucet with adjustable centers
- Size: 1/2"
- Connection: NPT
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 815-VBCP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ADA, ASSE-1001
- Centers: 13"
- Spout Motion: Rigid
- Spout Reach (in): 13.0
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Quaturn Compression
- Outlet Type: Hose Thread
- Mount Type: Wall-Mount
- Handle Style: Elbow Blade
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 8.5
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Backflow Device: Atmospheric Vacuum Breaker
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | 815 | Device Type | Wall-mounted manual faucet with adjustable centers |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Backflow device | Atmospheric Vacuum Breaker | Coating | Polished Chrome |
| Flow rate gpm | 8.5 GPM | Handle style | Elbow Blade |
| Lead time days | 3 | Mount type | Wall-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Quick ship | Yes | Vandal resistant | Yes |
| Cartridge type | Quaturn Compression | Centers | 13" |
| Handle count | 2 | Handle index | Hot and Cold |
| Outlet type | Hose Thread | Spout motion | Rigid |
| Spout reach in | 13.0 | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| ASSE-1001 | — |
