Specifications
Description

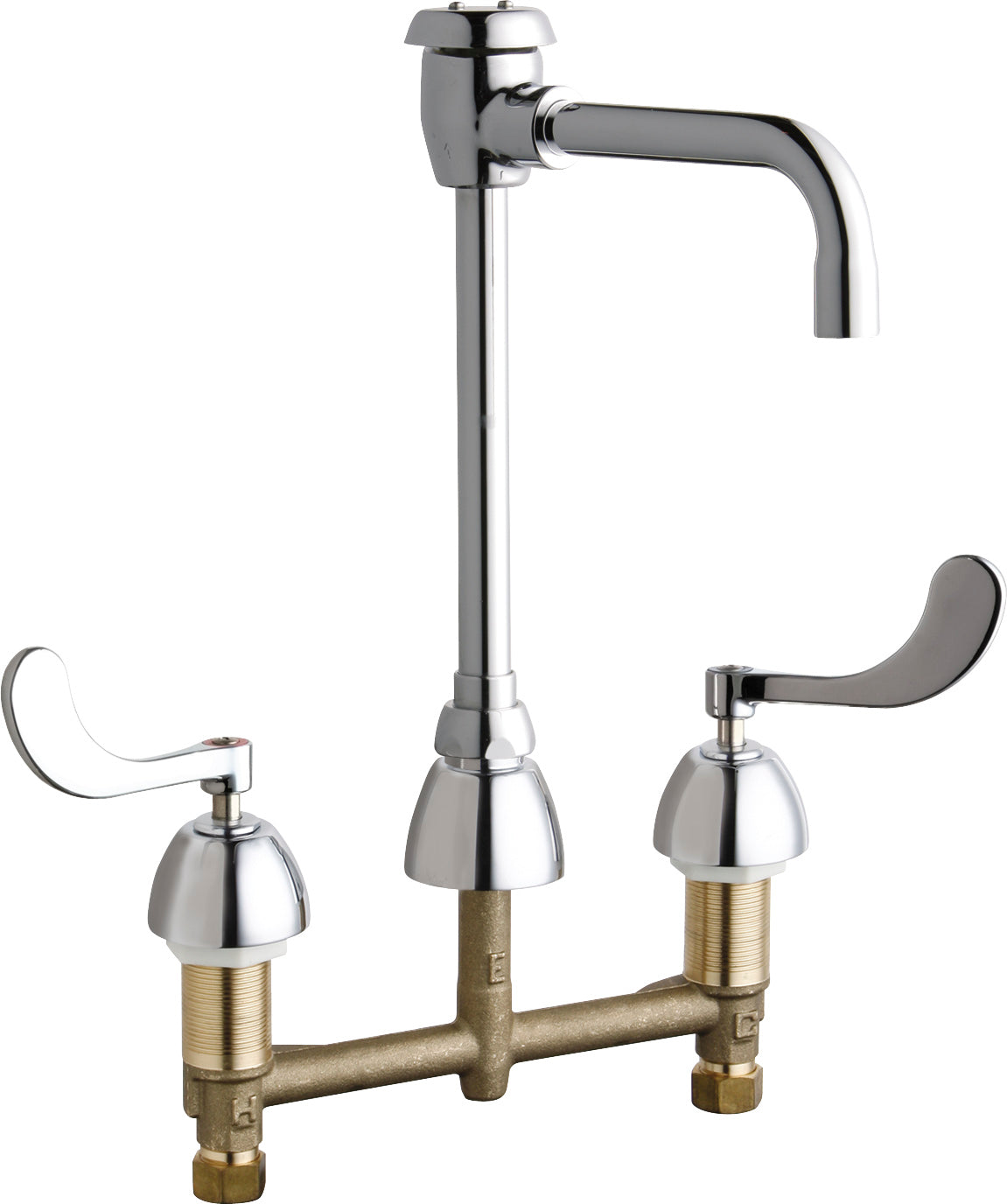

The Chicago Faucets 786-GN2BVBCP is a deck-mounted manual faucet with 8" centers with NPSM connections. It is rated to 40°F to 140°F.
Chicago Faucets No. 786-GN2BVBCP, Sink Faucet for hot and cold water, concealed deck-mount with 8" fixed centers, chrome plated. Rigid/swing gooseneck spout with atmospheric vacuum breaker, Less Spout Outlet, 6" center-to-center. 4" metal, vandal-proof, wristblade handles with sixteen-point, tapered broach and secured blue and red index buttons. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser. NOTE: Atmospheric vacuum breaker is NOT intended for continuous pressure applications. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, and ASSE 1001.
Features
- Handles include color-coded index
- 8" fixed centers
- 6" rigid/swing gooseneck spout with atmospheric vacuum breaker
- Vandal Proof 4" Wristblade handle (pair)
- Quaturn® compression operating cartridge, left-hand
- Quaturn® compression operating cartridge, right-hand
- Vacuum breaker assembly
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with a gooseneck spout, 2 handles, a quaturn compression cartridge, a vacuum breaker outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 8".
Specifications
- Type: Deck-mounted manual faucet with 8" centers
- Size: 1/2"
- Connection: NPSM
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 786-GN2BVBCP
- Temperature: 40°F to 140°F
- Certifications: ADA, ASME A112.18.1/CSA B125.1, ASSE-1001, NSF-61
- Centers: 8"
- Body Style: Concealed
- Spout Type: Gooseneck
- Spout Motion: Rigid/Swing
- Spout Reach (in): 6.0
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Quaturn Compression
- Outlet Type: Vacuum Breaker Outlet
- Mount Type: Deck-Mount
- Handle Style: Wristblade
- Coating / Finish: Polished Chrome
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Backflow Device: Atmospheric Vacuum Breaker
- Lead Time (days): 5
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPSM |
Details
| Series | 786 | Device Type | Deck-mounted manual faucet with 8" centers |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Backflow device | Atmospheric Vacuum Breaker | Coating | Polished Chrome |
| Handle style | Wristblade | Lead time days | 5 |
| Mount type | Deck-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Vandal resistant | Yes |
| Body style | Concealed | Cartridge type | Quaturn Compression |
| Centers | 8" | Handle count | 2 |
| Handle index | Hot and Cold | Outlet type | Vacuum Breaker Outlet |
| Spout motion | Rigid/Swing | Spout reach in | 6.0 |
| Spout type | Gooseneck | — | — |
Certifications & Standards
| ADA | ASME A112.18.1/CSA B125.1 |
| ASSE-1001 | NSF-61 |
Compare with similar products
| Series | 786
| 897
| 737
| 737
| 305
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | |||||
| Install Sheet | — | ||||
| Device Type | Deck-mounted manual faucet with 8" centers
| Wall-mounted manual faucet with 8" centers
| Wall-mounted manual faucet with 3-3/8" centers
| Wall-mounted manual faucet with 3-3/8" centers
| Wall-mounted manual faucet with adjustable centers
|
| Size Nominal | 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| End Connection | NPSM
| NPT
| NPT
| NPT
| NPT
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ADA, ASME A112.18.1/CSA B125.1, ASSE-1001, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1001
| ADA, ASME A112.18.1/CSA B125.1
| ADA, ASME A112.18.1/CSA B125.1
| ADA, ASME A112.18.1/CSA B125.1, ASSE-1001
|
| Pack Qty | 1
| 1
| 1
| 1
| 1
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
