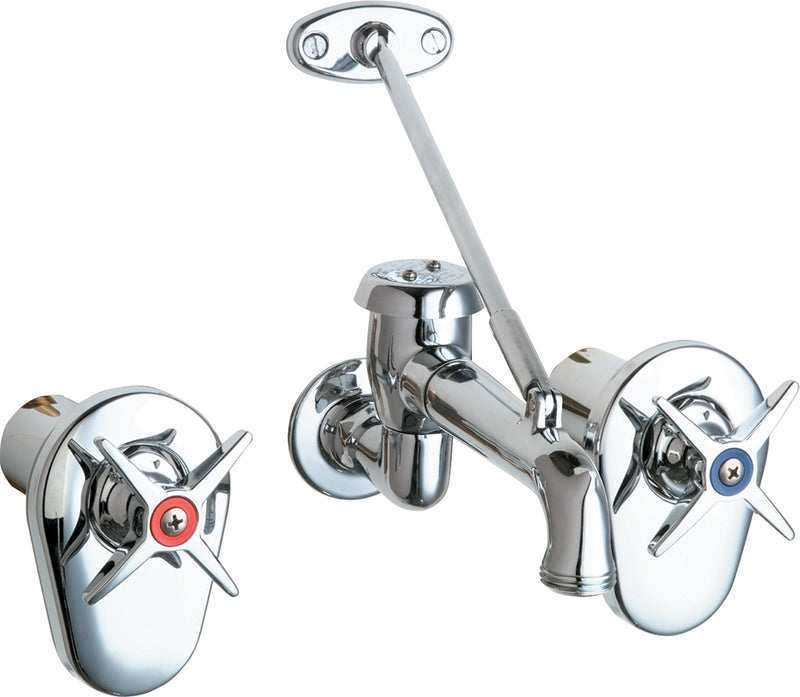

Chicago Faucets 782-VBISCP Concealed wall-mount faucet with 8" centers, Brass, NPT

The Chicago Faucets 782-VBISCP is a concealed wall-mount faucet with 8" centers with NPT connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. 782-VBISCP, Sink Faucet for hot and cold water, concealed wall-mount for 8" fixed centers, chrome plated. Integral, cast brass spout with vacuum breaker, pail hook, and wall brace, 8" center-to-center. 3" metal cross handles with eight-point, tapered broach and secured blue and red index buttons. Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square, tapered stem. Stop valve. 1/2" NPT female thread inlets. 3/4" male hose thread outlet. NOTE: Atmospheric vacuum breaker is NOT intended for continuous pressure applications. This product is tested and certified to industry standard ASME A112.18.1/CSA B125.1.

Features

• Handles include color-coded index
• 8" fixed centers
• Vandal Proof 3" Cross handle (pair)
• Slow compression operating cartridge, left-hand
• Vacuum breaker assembly
• Complies with the requirements of the Buy American Act of 1933.

Common Questions

Is it vandal-resistant?

Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.

What does it include?

It ships with 2 handles, a slow compression cartridge, a hose thread outlet.

Will this fit my existing holes?

Match the mounting centers first: this model is 8".

Specifications

• Type: Concealed wall-mount faucet with 8" centers
• Size: 1/2"
• Connection: NPT
• Body Material: Brass
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 782-VBISCP
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1, ASSE-1001
• Centers: 8"
• Body Style: Concealed
• Spout Reach (in): 8.0
• Number of Handles: 2
• Handle Index: Hot and Cold
• Cartridge Type: Slow Compression
• Outlet Type: Hose Thread
• Mount Type: Wall-Mount
• Handle Style: Cross
• Coating / Finish: Polished Chrome
• Vandal Resistant: Yes
• Max Operating Pressure (PSI): 125
• Backflow Device: Atmospheric Vacuum Breaker
• Lead Time (days): 5
