Similar products
Specifications
Description

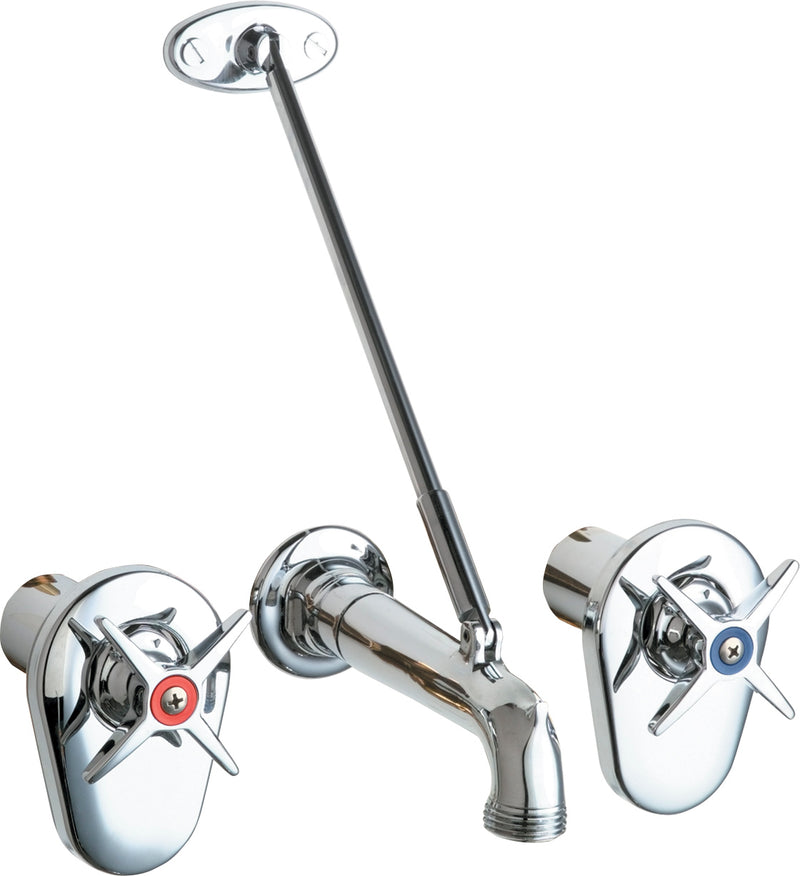

The Chicago Faucets 782-ISXKCCP is a concealed wall-mount faucet with 8" centers with NPT connections. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. 782-ISXKCCP, Sink Faucet for hot and cold water, concealed wall-mount for 8" fixed centers, chrome plated. Integral, cast brass spout with pail hook and wall brace, 5-3/4" center-to-center. 3" metal cross handles with eight-point, tapered broach and secured blue and red index buttons.Ceramic quarter-turn cartridge with integrated check valve, features square, tapered stem. Stop Valve. 1/2" NPT female thread inlets. 3/4" male hose thread outlet. This product is tested and certified to industry standard ASME A112.18.1/CSA B125.1.
Features
- Handles include color-coded index
- 8" fixed centers
- Vandal Proof 3" Cross handle (pair)
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with 2 handles, a ceramic 1/4-turn cartridge, a hose thread outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 8".
Specifications
- Type: Concealed wall-mount faucet with 8" centers
- Size: 1/2"
- Connection: NPT
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 782-ISXKCCP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1
- Centers: 8"
- Body Style: Concealed
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Ceramic 1/4-Turn
- Outlet Type: Hose Thread
- Mount Type: Wall-Mount
- Handle Style: Cross
- Coating / Finish: Polished Chrome
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Backflow Device: Integrated Check Cartridge
- Lead Time (days): 5
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | 782 | Device Type | Concealed wall-mount faucet with 8" centers |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Min Temp °F | 40.0 °F |
| Baa | USA | Backflow device | Integrated Check Cartridge |
| Coating | Polished Chrome | Handle style | Cross |
| Lead time days | 5 | Mount type | Wall-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Vandal resistant | Yes | Body style | Concealed |
| Cartridge type | Ceramic 1/4-Turn | Centers | 8" |
| Handle count | 2 | Handle index | Hot and Cold |
| Outlet type | Hose Thread | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | — |
Compare with similar products
| Series | 782
| 897
| 737
| 737
| 305
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | |||||
| Install Sheet | — | ||||
| Device Type | Concealed wall-mount faucet with 8" centers
| Wall-mounted manual faucet with 8" centers
| Wall-mounted manual faucet with 3-3/8" centers
| Wall-mounted manual faucet with 3-3/8" centers
| Wall-mounted manual faucet with adjustable centers
|
| Size Nominal | 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| End Connection | NPT
| NPT
| NPT
| NPT
| NPT
|
| Body Material | Brass
| Brass
| — | — | — |
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1001
| ADA, ASME A112.18.1/CSA B125.1
| ADA, ASME A112.18.1/CSA B125.1
| ADA, ASME A112.18.1/CSA B125.1, ASSE-1001
|
| Pack Qty | 1
| 1
| 1
| 1
| 1
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
