Description

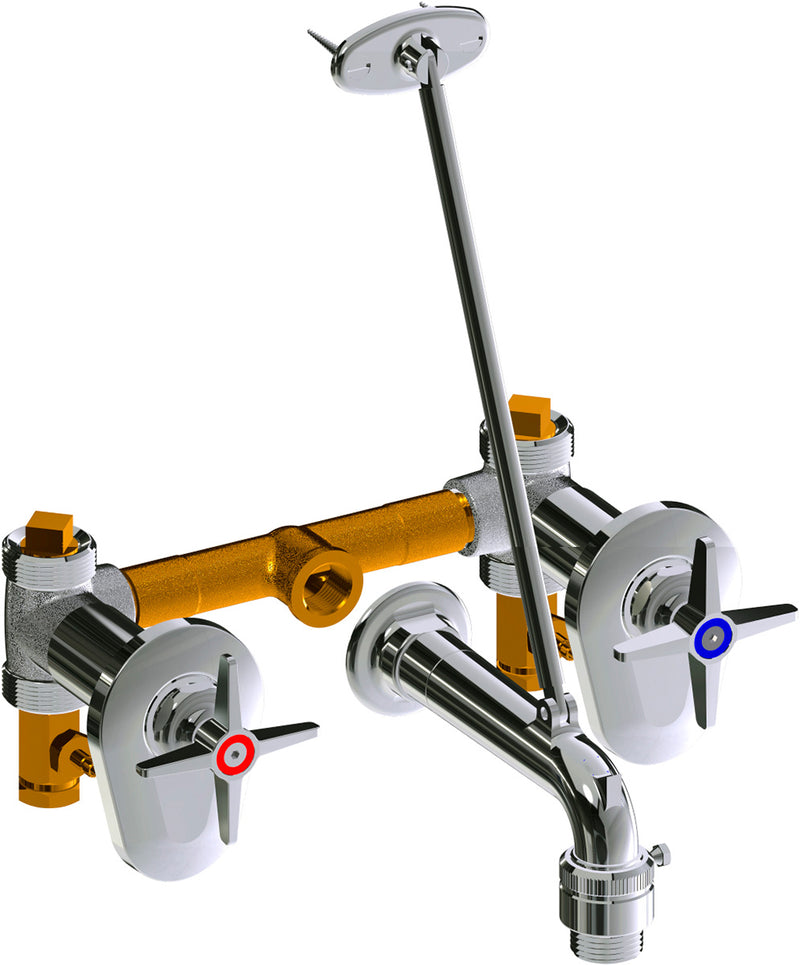

The Chicago Faucets 782-ISE27CP is a concealed wall-mount faucet with 8" centers with NPT connections. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. 782-ISE27CP, Sink Faucet for hot and cold water, concealed wall-mount for 8" fixed centers, chrome plated. Integral, cast brass spout with pail hook and wall brace, 5-3/4" center-to-center. Full-flow, in-line vacuum breaker with hose thread outlet. 3" metal cross handles with eight-point, tapered broach and secured blue and red index buttons. Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square, tapered stem. Stop Valve. 1/2" NPT female thread inlets. Hose connection vacuum breakers specially made to permit the attachment of portable hoses to hose thread faucets. Designed to prevent the flow of contaminated water back into the potable water supply, these devices require no plumbing changes, and screw directly onto a sill cock. NOTE: not intended for continuous pressure applications. This product is tested and certified to industry standard ASME A112.18.1/CSA B125.1.
Features
- Handles include color-coded index
- 8" fixed centers
- Full-flow hose thread outlet with inline vacuum breaker
- Vandal Proof 3" Cross handle (pair)
- Slow compression operating cartridge, left-hand
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with 2 handles, a slow compression cartridge, a hose thread outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 8".
Specifications
- Type: Concealed wall-mount faucet with 8" centers
- Size: 1/2"
- Connection: NPT
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 782-ISE27CP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1
- Centers: 8"
- Body Style: Concealed
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Slow Compression
- Outlet Type: Hose Thread
- Mount Type: Wall-Mount
- Handle Style: Cross
- Coating / Finish: Polished Chrome
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Backflow Device: In-Line Vacuum Breaker (Dual Check)
- Lead Time (days): 5
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | 782 | Device Type | Concealed wall-mount faucet with 8" centers |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Min Temp °F | 40.0 °F |
| Baa | USA | Backflow device | In-Line Vacuum Breaker (Dual Check) |
| Coating | Polished Chrome | Handle style | Cross |
| Lead time days | 5 | Mount type | Wall-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Vandal resistant | Yes | Body style | Concealed |
| Cartridge type | Slow Compression | Centers | 8" |
| Handle count | 2 | Handle index | Hot and Cold |
| Outlet type | Hose Thread | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | — |
