Description

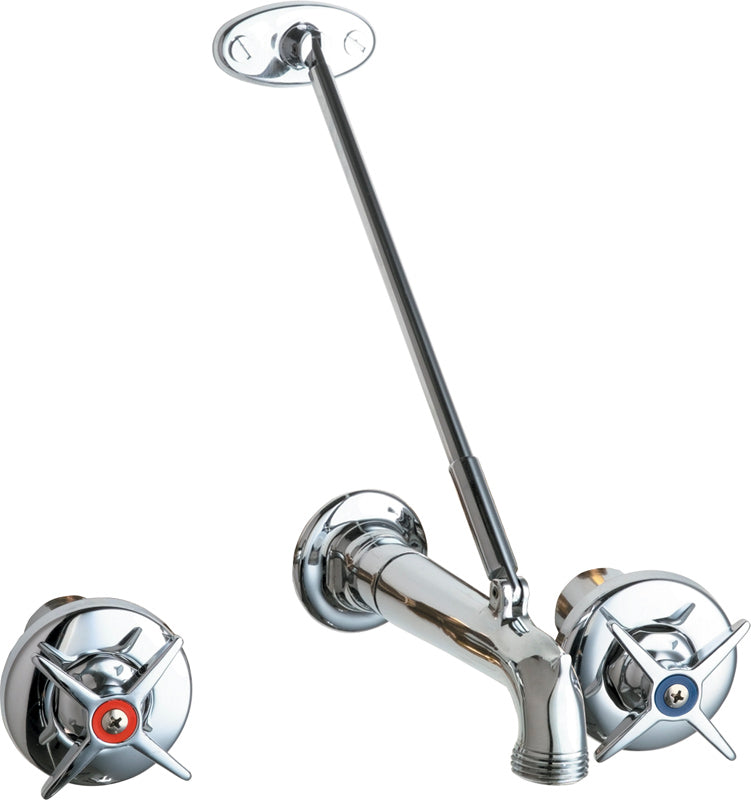

The Chicago Faucets 782-CP is a concealed wall-mount faucet with 8" centers with NPT connections. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. 782-CP, Sink Faucet for hot and cold water, concealed wall-mount for 8" fixed centers, chrome plated. Integral, cast brass spout with pail hook and wall brace, 5-3/4" center-to-center. 3" metal cross handles with eight-point, tapered broach and secured blue and red index buttons. Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square, tapered stem. 1/2" NPT female thread inlets. 3/4" male hose thread outlet. This product is tested and certified to industry standard ASME A112.18.1/CSA B125.1.
Features
- Handles include color-coded index
- 8" fixed centers
- Vandal Proof 3" Cross handle (pair)
- Slow compression operating cartridge, left-hand
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with 2 handles, a slow compression cartridge, a hose thread outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 8".
Specifications
- Type: Concealed wall-mount faucet with 8" centers
- Size: 1/2"
- Connection: NPT
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 782-CP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1
- Centers: 8"
- Body Style: Concealed
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Slow Compression
- Outlet Type: Hose Thread
- Mount Type: Wall-Mount
- Handle Style: Cross
- Coating / Finish: Polished Chrome
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | 782 | Device Type | Concealed wall-mount faucet with 8" centers |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Min Temp °F | 40.0 °F |
| Baa | USA | Coating | Polished Chrome |
| Handle style | Cross | Lead time days | 5 |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Vandal resistant | Yes |
| Body style | Concealed | Cartridge type | Slow Compression |
| Centers | 8" | Handle count | 2 |
| Handle index | Hot and Cold | Outlet type | Hose Thread |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | — |
