Description

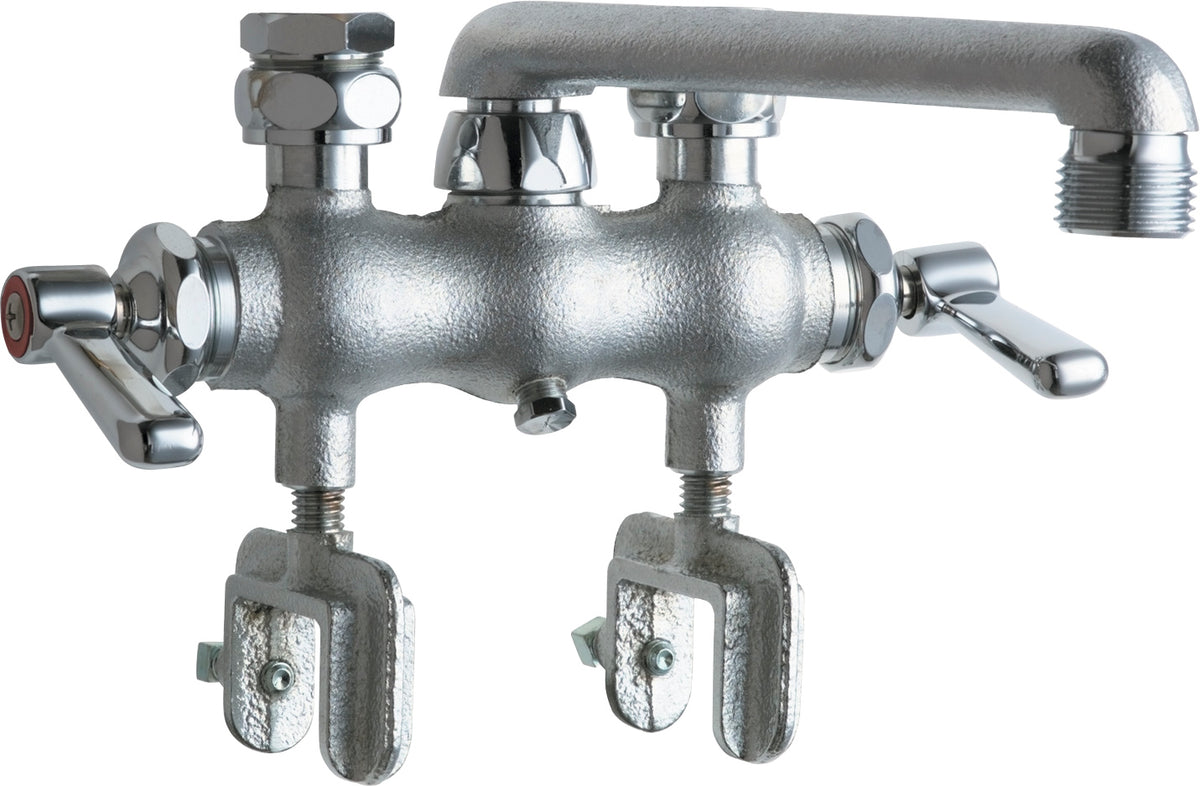

The Chicago Faucets 686-RCF is a manual laundry tray faucet with mounting clamps with NPT connections. It is rated to 40°F to 140°F.
Chicago Faucets No. 686-RCF, Laundry Tray Sink Faucet for hot and cold water, deck-mounted with 3-3/8" fixed centers, rough chrome plated. Includes mounting clamps. S-Type swing spout, 6" center-to-center. Full-flow outlet with 3/4" male hose thread. 2-3/8" metal, vandal-proof, lever handles with sixteen-point, tapered broach and secured blue and red index buttons. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. 1/2" NPT female thread inlets from Above. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and Certified to NSF/ANSI 61, Section 9.
Features
- Handles include color-coded index
- 3-3/8" fixed centers
- 6" S-type swing spout
- 3/4" Hose thread male outlet, full flow
- Vandal Proof 2-3/8" Lever handle (pair)
- Quaturn® compression operating cartridge, right-hand
- Quaturn® compression operating cartridge, left-hand
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with 2 handles, a quaturn compression cartridge, a hose thread outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 3-3/8".
Specifications
- Type: Manual laundry tray faucet with mounting clamps
- Size: 1/2"
- Connection: NPT
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 686-RCF
- Temperature: 40°F to 140°F
- Certifications: ADA, ASME A112.18.1/CSA B125.1, NSF-61
- Centers: 3-3/8"
- Spout Motion: Swing
- Spout Reach (in): 6.0
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Quaturn Compression
- Outlet Type: Hose Thread
- Mount Type: Deck-Mount
- Handle Style: Lever
- Coating / Finish: Rough Chrome
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Hose Length (in): 4.0
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | 686 | Device Type | Manual laundry tray faucet with mounting clamps |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Rough Chrome | Handle style | Lever |
| Hose length in | 4.0 | Lead time days | 3 |
| Mount type | Deck-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Quick ship | Yes |
| Vandal resistant | Yes | Cartridge type | Quaturn Compression |
| Centers | 3-3/8" | Handle count | 2 |
| Handle index | Hot and Cold | Outlet type | Hose Thread |
| Spout motion | Swing | Spout reach in | 6.0 |
Certifications & Standards
| ADA | ASME A112.18.1/CSA B125.1 |
| NSF-61 | — |
Compare with similar products
| Series | 686
| 50
| 895
| 786
| 772
| 540
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | ||||||
| Install Sheet | — | — | — | |||
| Device Type | Manual laundry tray faucet with mounting clamps
| Deck-mounted manual faucet, single-hole mounting
| Deck-mounted manual faucet with 4" centers
| Deck-mounted manual faucet with 8" centers
| Deck-mounted manual faucet with 3-3/8" centers
| Wall-mounted manual faucet with adjustable centers
|
| Size Nominal | 1/2"
| 3/8"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| Lead Free | — | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPT
| Compression
| NPSM
| NPSM
| NPT
| NPT
|
| Body Material | — | Brass
| Brass
| Brass
| Brass
| Brass
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ADA, ASME A112.18.1/CSA B125.1, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, NSF-61, WaterSense
| ASME A112.18.1/CSA B125.1, ADA, NSF-61, WaterSense
| ADA, ASME A112.18.1/CSA B125.1, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, NSF-61
| ADA, ASME A112.18.1/CSA B125.1, NSF-61, WaterSense
|
| Pack Qty | 1
| 1
| 1
| 1
| 1
| 1
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
