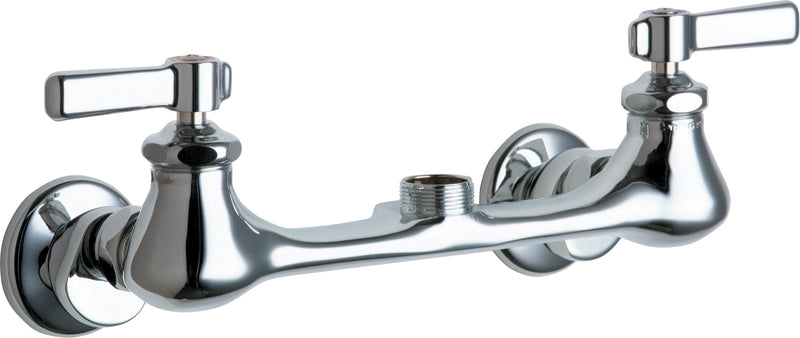

Chicago Faucets 540-LDLESXKAB Lead-Free Wall-mounted manual faucet with adjustable centers

The Chicago Faucets 540-LDLESXKAB is a lead-free wall-mounted manual faucet with adjustable centers with NPT connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

Chicago Faucets No. 540-LDLESXKAB, Sink Faucet for hot and cold water, wall-mounted with adjustable arms for 7-1/4" - 8-3/4" centers. Chrome plated. 2-3/8" metal, vandal-proof, lever handles with sixteen-point, tapered broach and secured blue and red index buttons. Ceramic quarter-turn cartridge, features square, tapered stem. 3/8" offset inlet supply arm with 1/2" NPT female thread inlet. 2-5/16" diameter slip flange. ECAST® construction with less than 0.25% lead content by weighted average.

Features

• Handles include color-coded index
• 8" body, adjustable arms 7-1/4" - 8-3/4" centers
• Less Spout
• Vandal Proof 2-3/8" Lever handle (pair)
• Ceramic 1/4-turn operating cartridge, right-hand
• Ceramic 1/4-turn operating cartridge, left-hand
• 3/8" Offset inlet supply arm
• ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
• Complies with the requirements of the Buy American Act of 1933.
• CFNow! Item Ships in 3 Days

Common Questions

Is this safe for drinking water?

Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.

Is this ADA compliant?

Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.

Is it vandal-resistant?

Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.

What does it include?

It ships with 2 handles, a ceramic 1/4-turn cartridge.

Will this fit my existing holes?

Match the mounting centers first: this model is 8-3/4".

Specifications

• Type: Wall-mounted manual faucet with adjustable centers
• Size: 1/2"
• Connection: NPT
• Body Material: Brass
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 540-LDLESXKAB
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1, ADA, NSF-61
• Lead-Free: Yes
• Centers: 8-3/4"
• Number of Handles: 2
• Handle Index: Hot and Cold
• Cartridge Type: Ceramic 1/4-Turn
• Mount Type: Wall-Mount
• Handle Style: Lever
• Coating / Finish: Polished Chrome
• Vandal Resistant: Yes
• Max Operating Pressure (PSI): 125
• Quick Ship: Yes
• Lead Time (days): 3
