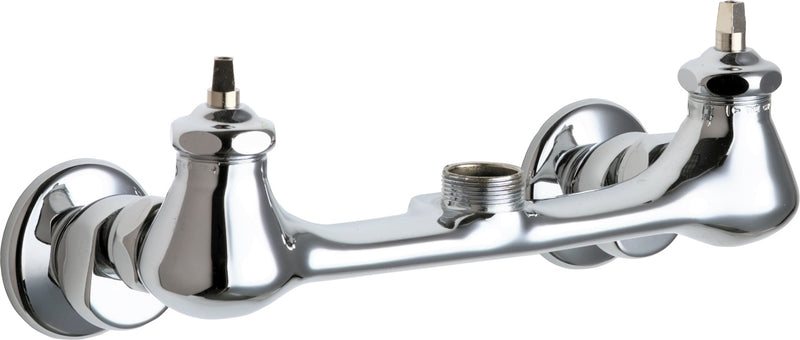

Chicago Faucets 540-LDLESHAB Lead-Free Wall-mounted manual faucet with adjustable centers

The Chicago Faucets 540-LDLESHAB is a lead-free wall-mounted manual faucet with adjustable centers with NPT connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

Chicago Faucets No. 540-LDLESHAB, Sink Faucet for hot and cold water, wall-mounted with adjustable arms for 7-1/4" - 8-3/4" centers. Chrome plated. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. 3/8" offset inlet supply arm with 1/2" NPT female thread inlet. 2-5/16" diameter slip flange. ECAST® construction with less than 0.25% lead content by weighted average.

Features

• 2-5/16" diameter slip flange
• 8" body, adjustable arms 7-1/4" - 8-3/4" centers
• Less Spout
• Less Handle
• Quaturn® compression operating cartridge, right-hand
• Quaturn® compression operating cartridge, left-hand
• 3/8" Offset inlet supply arm
• ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
• Complies with the requirements of the Buy American Act of 1933.
• CFNow! Item Ships in 3 Days

Common Questions

Is this safe for drinking water?

Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.

What does it include?

It ships with a quaturn compression cartridge.

Will this fit my existing holes?

Match the mounting centers first: this model is 8-3/4".

Specifications

• Type: Wall-mounted manual faucet with adjustable centers
• Size: 1/2"
• Connection: NPT
• Body Material: Brass
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 540-LDLESHAB
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1, NSF-61
• Lead-Free: Yes
• Centers: 8-3/4"
• Number of Handles: 0
• Cartridge Type: Quaturn Compression
• Mount Type: Wall-Mount
• Handle Style: Less Handle
• Coating / Finish: Polished Chrome
• Max Operating Pressure (PSI): 125
• Quick Ship: Yes
• Lead Time (days): 3
