The Chicago Faucets 540-LD897WXF317XKC is a wall-mounted manual faucet with 8" centers with NPT connections. It features a brass body. Rated to 40°F to 140°F.

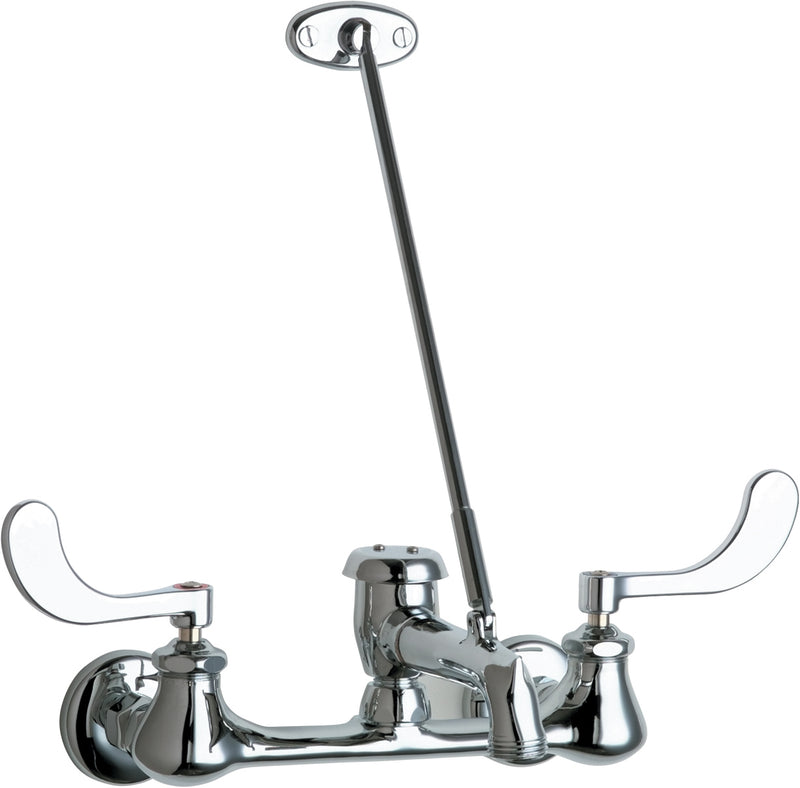

Chicago Faucets No. 540-LD897WXF317XKC, Sink Faucet for hot and cold water, wall-mounted with 8" fixed centers, chrome plated. Rigid spout with vacuum breaker, 3/4" male hose thread, and pail hook, 5-3/4" center-to-center. 4" metal, vandal-proof, wristblade handles with sixteen-point, tapered broach and secured blue and red index buttons. Ceramic quarter-turn cartridge with integrated check valve, features square, tapered stem. Straight 2" inlet supply arm with 1/2" NPT female thread inlet and wall flange. NOTE: Atmospheric vacuum breaker is NOT intended for continuous pressure applications. ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and Certified to NSF/ANSI 61, Section 9.
Features
- Handles include color-coded index
- 8" fixed centers
- 5-3/4" Rigid vacuum breaker spout with 3/4" male hose thread and pail hook
- Vandal Proof 4" Wristblade handle (pair)
- Ceramic 1/4-turn operating cartridge with integrated check valve, right-hand
- Ceramic 1/4-turn operating cartridge with integrated check valve, left-hand
- Straight 2" inlet supply arm with wall flange
- Vacuum breaker assembly
- Complies with the requirements of the Buy American Act of 1933.
- CFNow! Item Ships in 3 Days
Common Questions
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with 2 handles, a ceramic 1/4-turn cartridge, a hose thread outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 8".
Specifications
- Type: Wall-mounted manual faucet with 8" centers
- Size: 1/2"
- Connection: NPT
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 540-LD897WXF317XKC
- Temperature: 40°F to 140°F
- Certifications: ADA, ASME A112.18.1/CSA B125.1, NSF-61
- Centers: 8"
- Spout Motion: Rigid
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Ceramic 1/4-Turn
- Outlet Type: Hose Thread
- Mount Type: Wall-Mount
- Handle Style: Wristblade
- Coating / Finish: Polished Chrome
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Backflow Device: Atmospheric Vacuum Breaker
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | 540 | Device Type | Wall-mounted manual faucet with 8" centers |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Min Temp °F | 40.0 °F |
| Baa | USA | Backflow device | Atmospheric Vacuum Breaker |
| Coating | Polished Chrome | Handle style | Wristblade |
| Lead time days | 3 | Mount type | Wall-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Quick ship | Yes | Vandal resistant | Yes |
| Cartridge type | Ceramic 1/4-Turn | Centers | 8" |
| Handle count | 2 | Handle index | Hot and Cold |
| Outlet type | Hose Thread | Spout motion | Rigid |
Certifications & Standards
| ADA | ASME A112.18.1/CSA B125.1 |
| NSF-61 | — |
