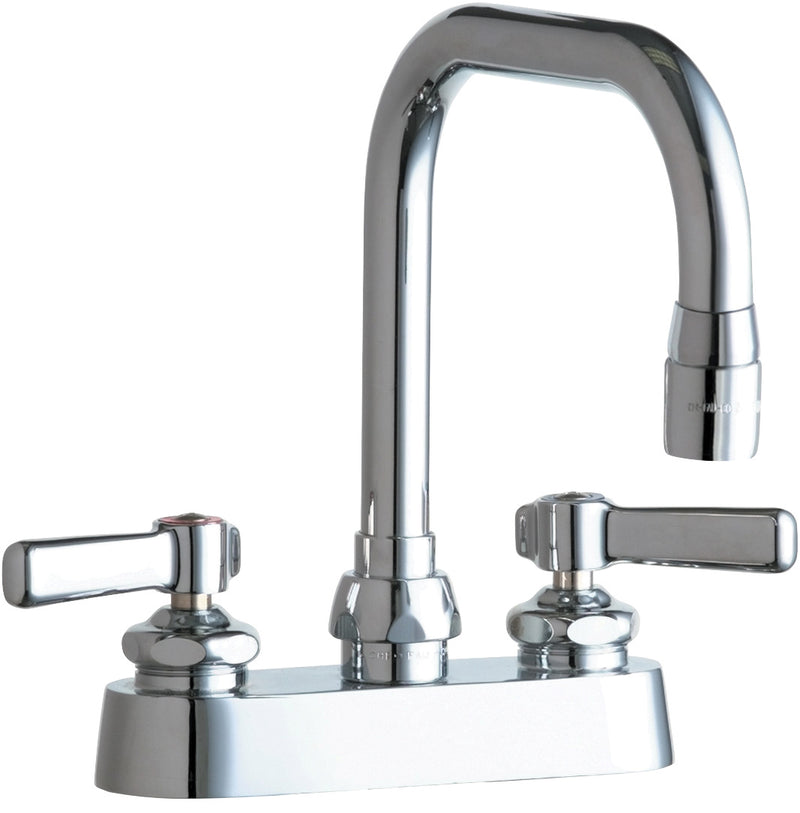

Chicago Faucets 526-E35ABCP Lead-Free Deck-mounted manual faucet with 4" centers, Brass, NPSM

The Chicago Faucets 526-E35ABCP is a lead-free deck-mounted manual faucet with 4" centers with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

Chicago Faucets No. 526-E35ABCP, Sink Faucet for hot and cold water, deck-mounted with 4" fixed centers, chrome plated. Rigid/swing, double-bend spout, 6-1/4" center-to-center. 1.5 GPM (5.7 L/min) pressure compensating Softflo® aerator. 2-3/8" metal, vandal-proof, lever handles with sixteen-point, tapered broach and secured blue and red index buttons. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser. ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and Certified to NSF/ANSI 61, Section 9.

Features

• Handles include color-coded index
• 4" fixed centers
• 6-1/4" Rigid/swing double-bend spout
• Pressure compensating Softflo® aerator, 1.5 GPM
• Vandal Proof 2-3/8" Lever handle (pair)
• Quaturn® compression operating cartridge, right-hand
• Quaturn® compression operating cartridge, left-hand
• ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
• Complies with the requirements of the Buy American Act of 1933.

Common Questions

Is this safe for drinking water?

Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.

Is this ADA compliant?

Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.

Does it meet water-conservation codes?

Yes, it is certified to WaterSense.

Is it vandal-resistant?

Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.

What does it include?

It ships with 2 handles, a quaturn compression cartridge, an aerator outlet.

Specifications

• Type: Deck-mounted manual faucet with 4" centers
• Size: 1/2"
• Connection: NPSM
• Body Material: Brass
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 526-E35ABCP
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1, ADA, NSF-61, WaterSense
• Lead-Free: Yes
• Centers: 4"
• Spout Motion: Rigid/Swing
• Number of Handles: 2
• Handle Index: Hot and Cold
• Cartridge Type: Quaturn Compression
• Outlet Type: Aerator
• Pressure Compensating: Yes
• Mount Type: Deck-Mount
• Handle Style: Lever
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 1.5
• Vandal Resistant: Yes
• Max Operating Pressure (PSI): 125
• Lead Time (days): 5
