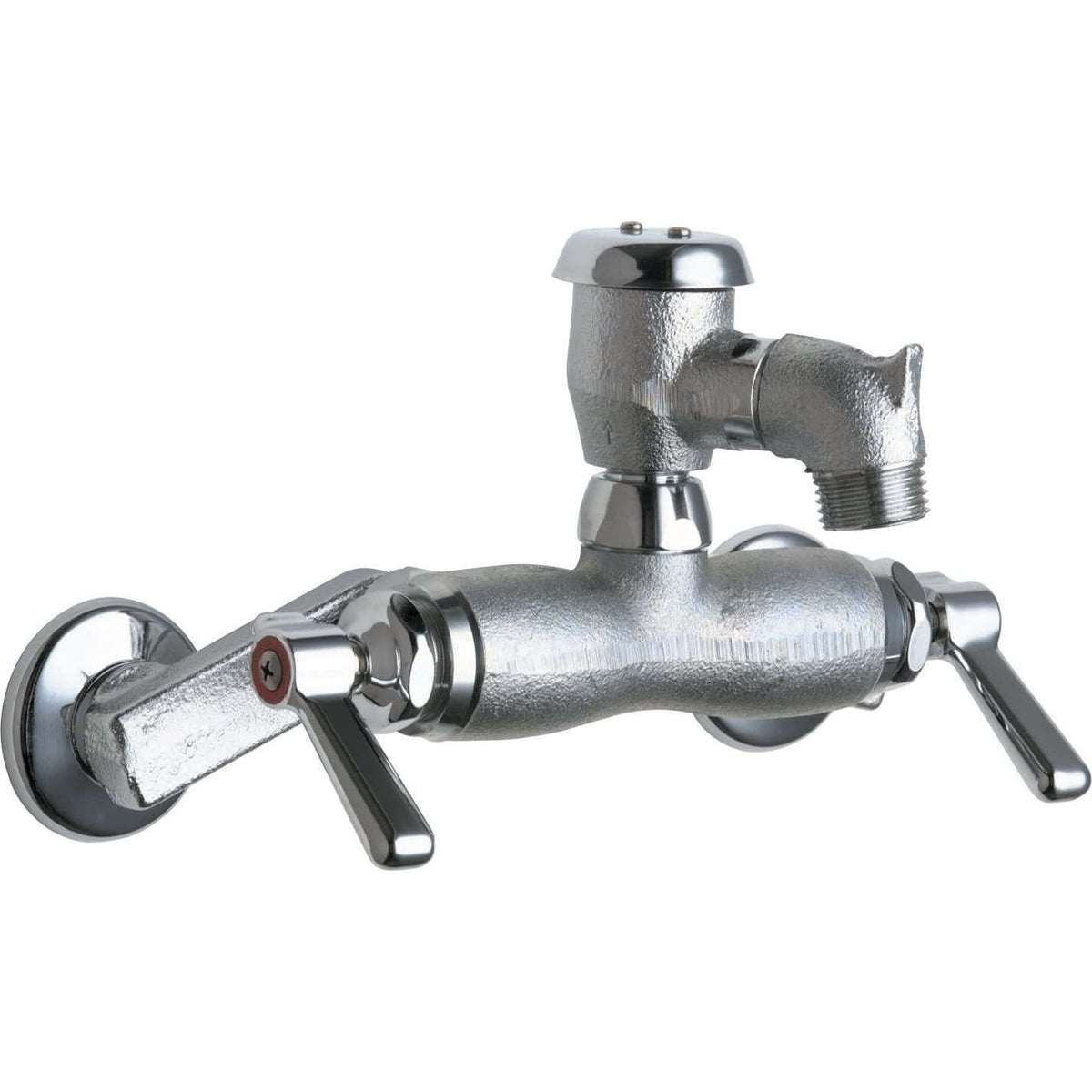

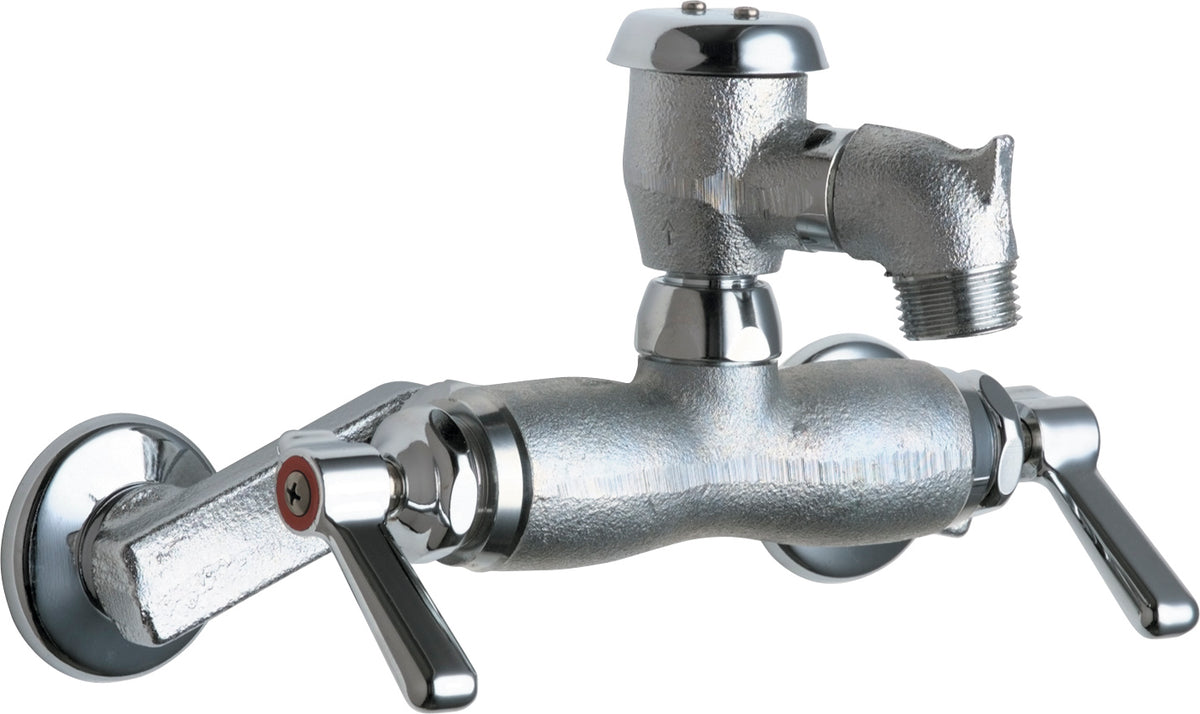

The Chicago Faucets 305-VBXKCRCF is a wall-mounted manual faucet with adjustable centers with NPT connections. It is rated to 40°F to 140°F.
Chicago Faucets No. 305-VBXKCRCF, Sink Faucet for hot and cold water, wall mounted 3-3/8" body with adjustable arms for 3" - 8-3/8" centers. Rough chrome plated. Rigid spout with atmospheric vacuum breaker, pail hook, and 3/4" hose thread, 2-3/8" center-to-center. 2-3/8" metal, vandal-proof, lever handles with sixteen-point, tapered broach and secured blue and red index buttons. Ceramic quarter- turn operating cartridge with integrated check valve. 2-1/2" offset inlet supply arm with 1/2" NPT female thread inlet. 2-5/16" diameter slip flange. NOTE: Atmospheric vacuum breaker is NOT intended for continuous pressure applications. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, and ASSE 1001.
Features
- Handles include color-coded index
- 3-3/8" body, adjustable arms 3" - 8-3/8" centers
- 2-3/8" Rigid atmospheric vacuum breaker spout with 3/4" hose thread
- Vandal Proof 2-3/8" Lever handle (pair)
- Ceramic 1/4-turn operating cartridge with integrated check valve, right-hand
- Ceramic 1/4-turn operating cartridge with integrated check valve, left-hand
- 2-1/2" Offset inlet supply arm
- Vacuum breaker assembly
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is this ADA compliant?
- Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with 2 handles, a ceramic 1/4-turn cartridge, a hose thread outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 8-3/8".
Specifications
- Type: Wall-mounted manual faucet with adjustable centers
- Size: 1/2"
- Connection: NPT
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 305-VBXKCRCF
- Temperature: 40°F to 140°F
- Certifications: ADA, ASME A112.18.1/CSA B125.1, ASSE-1001
- Centers: 8-3/8"
- Spout Motion: Rigid
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Ceramic 1/4-Turn
- Outlet Type: Hose Thread
- Mount Type: Wall-Mount
- Handle Style: Lever
- Coating / Finish: Rough Chrome
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Backflow Device: Atmospheric Vacuum Breaker
- Hose Length (in): 4.0
- Lead Time (days): 5
Product Information
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | 305 | Device Type | Wall-mounted manual faucet with adjustable centers |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Backflow device | Atmospheric Vacuum Breaker | Coating | Rough Chrome |
| Handle style | Lever | Hose length in | 4.0 |
| Lead time days | 5 | Mount type | Wall-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Vandal resistant | Yes | Cartridge type | Ceramic 1/4-Turn |
| Centers | 8-3/8" | Handle count | 2 |
| Handle index | Hot and Cold | Outlet type | Hose Thread |
| Spout motion | Rigid | — | — |
Certifications & Standards
| ADA | ASME A112.18.1/CSA B125.1 |
| ASSE-1001 | — |
Compare with similar products
| Series | 305
| 897
| 737
| 737
| 305
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | |||||
| Install Sheet | — | ||||
| Device Type | Wall-mounted manual faucet with adjustable centers
| Wall-mounted manual faucet with 8" centers
| Wall-mounted manual faucet with 3-3/8" centers
| Wall-mounted manual faucet with 3-3/8" centers
| Wall-mounted manual faucet with adjustable centers
|
| Size Nominal | 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| End Connection | NPT
| NPT
| NPT
| NPT
| NPT
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ADA, ASME A112.18.1/CSA B125.1, ASSE-1001
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1001
| ADA, ASME A112.18.1/CSA B125.1
| ADA, ASME A112.18.1/CSA B125.1
| ADA, ASME A112.18.1/CSA B125.1, ASSE-1001
|
| Pack Qty | 1
| 1
| 1
| 1
| 1
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
