Description

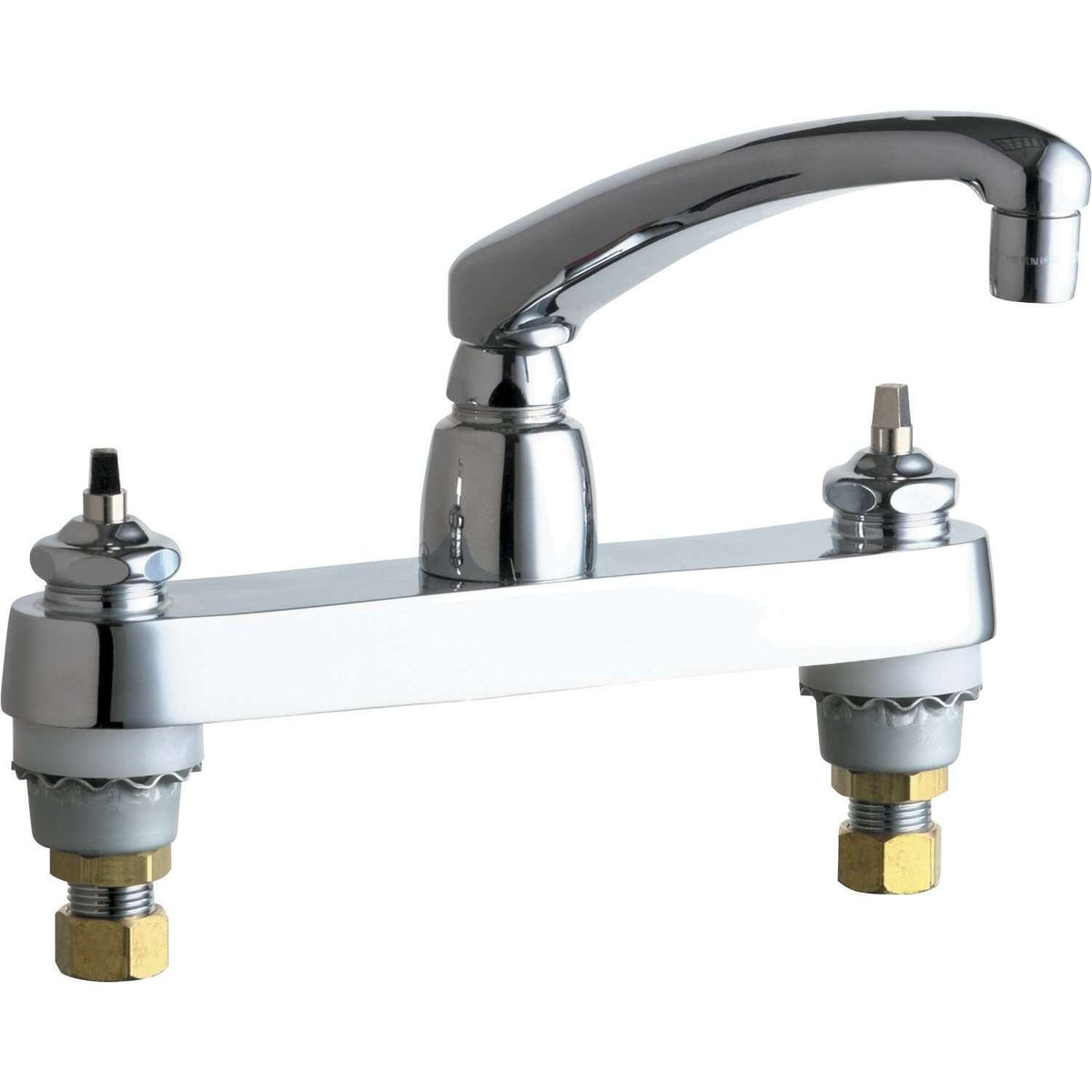

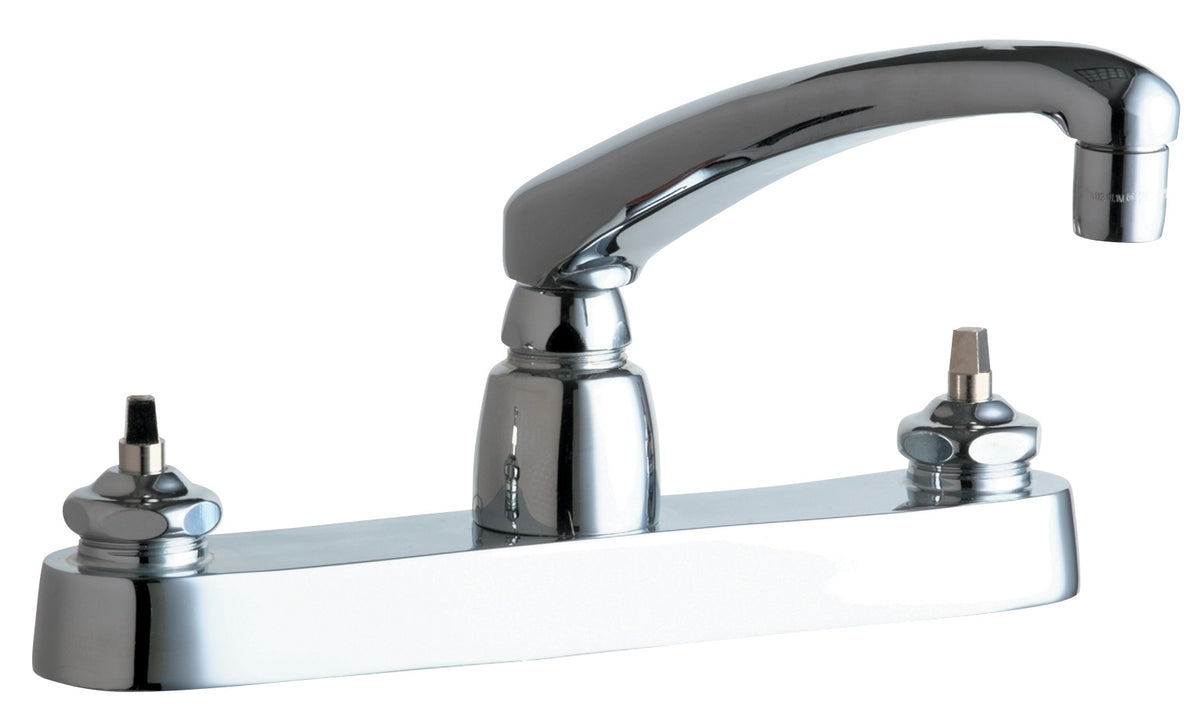

The Chicago Faucets 1100-LEHAB is a lead-free deck-mounted manual faucet with 8" centers with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 1100-LEHAB, Sink Faucet for hot and cold water, deck-mounted with 8" fixed centers, chrome plated. L-Type swing spout, 8" center-to-center. 2.2 GPM (8.3 L/min) pressure compensating Softflo® aerator. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser. ECAST® construction with less than 0.25% lead content by weighted average. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, and NSF/ANSI 372 Low Lead Content.
Features
- 8" fixed centers
- 8" L-type swing spout
- Pressure compensating Softflo® aerator, 2.2 GPM
- Less Handle
- Quaturn® compression operating cartridge, right-hand
- Quaturn® compression operating cartridge, left-hand
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- CFNow! Item Ships in 3 Days
Common Questions
- Is this safe for drinking water?
- Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.
- What does it include?
- It ships with a l-type spout, a quaturn compression cartridge, an aerator outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 8".
Specifications
- Type: Deck-mounted manual faucet with 8" centers
- Size: 1/2"
- Connection: NPSM
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 1100-LEHAB
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61, NSF-372
- Lead-Free: Yes
- Centers: 8"
- Spout Type: L-Type
- Spout Motion: Swing
- Spout Reach (in): 8.0
- Number of Handles: 0
- Cartridge Type: Quaturn Compression
- Outlet Type: Aerator
- Pressure Compensating: Yes
- Mount Type: Deck-Mount
- Handle Style: Less Handle
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 2.2
- Max Operating Pressure (PSI): 125
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 1100-LEHAB | 611943579500 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Size Nominal | 1/2" | End Connection | NPSM |
Details
| Series | 1100 | Device Type | Deck-mounted manual faucet with 8" centers |
| Lead Free | Yes | Body Material | Brass |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Polished Chrome | Flow rate gpm | 2.2 GPM |
| Handle style | Less Handle | Lead time days | 3 |
| Mount type | Deck-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Quick ship | Yes |
| Cartridge type | Quaturn Compression | Centers | 8" |
| Handle count | 0 | Outlet type | Aerator |
| Pressure compensating | Yes | Spout motion | Swing |
| Spout reach in | 8.0 | Spout type | L-Type |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 |
| NSF-372 | — |
