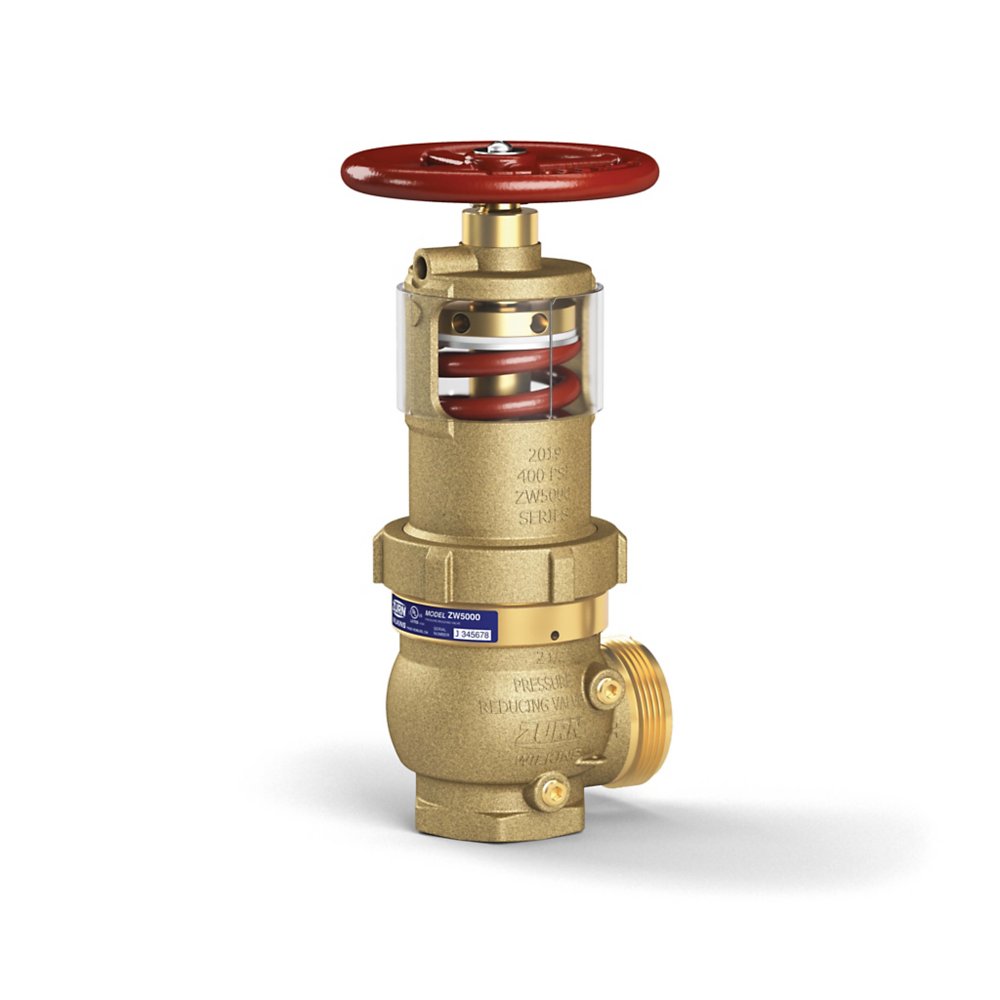

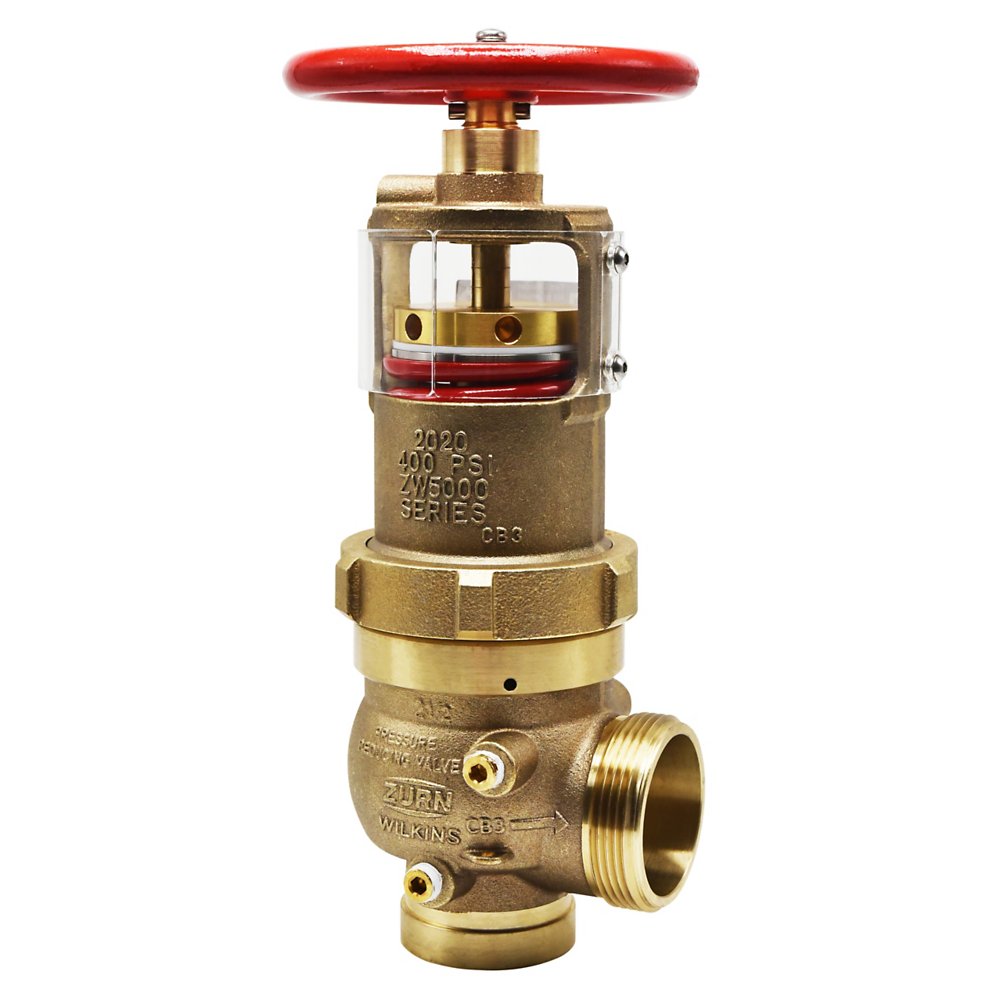

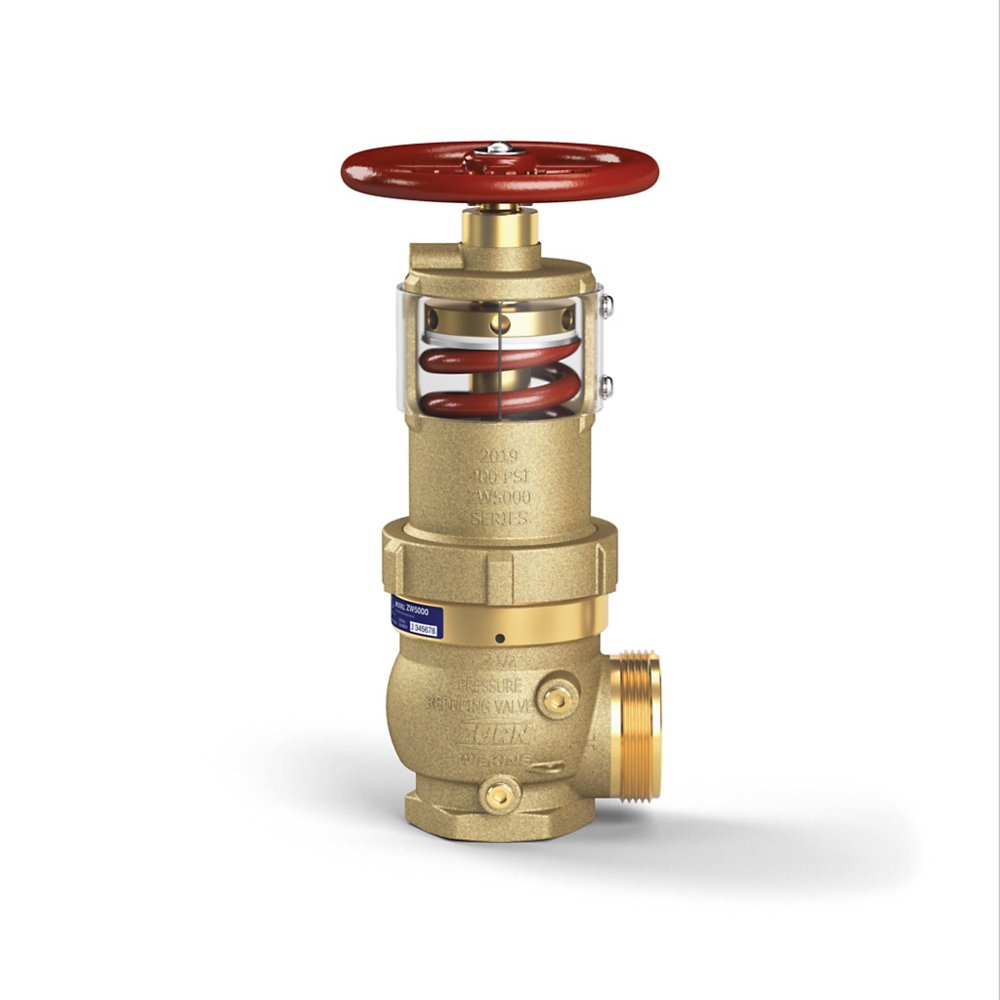

Zurn ZW5000IL 2-1/2" Pressure Tru® Pressure Reducing Hose Valve - Field Adjustable

The Zurn Wilkins ZW5000IL is a 2-1/2" Pressure-Tru® field-adjustable fire hose valve, factory set or adjusted in the field, regulating outlet pressure under both flow and no-flow conditions up to a 400 psi maximum inlet pressure. It features a bronze body. Rated to 400 psi.

The Pressure-Tru® ZW5000 Series Pressure Reducing Valve is listed as a standpipe valve for individual hose stations in CLASS I and CLASS III systems. The valve regulates pressure under both FLOW and NO-FLOW conditions. It can be field adjusted with ease thanks to its low torque design – requiring only 9 ft lb of torque to adjust. The compact profile fits in tighter spaces and the larger handwheel ensures trouble-free operation. The ZW5000 Series delivers optimal flow performance, making it ideal for any application, retrofit or new.

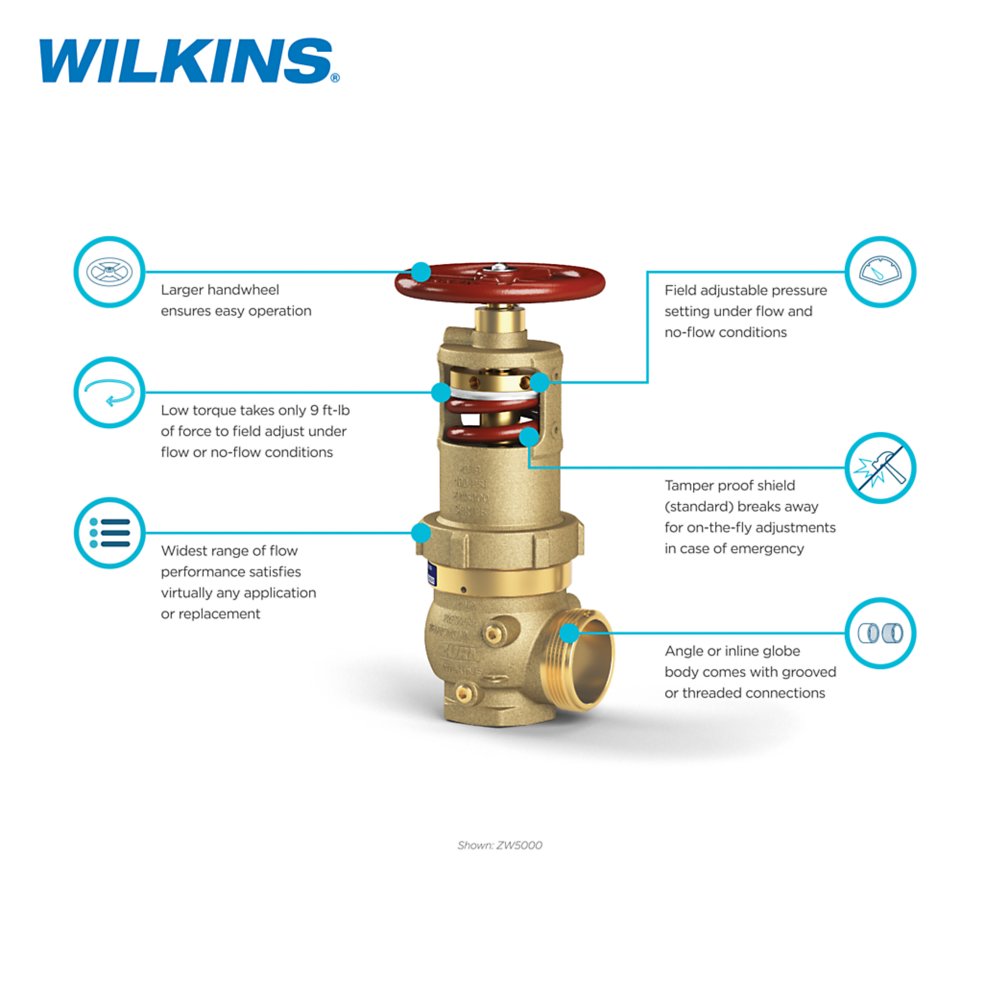

Features

• Widest range of flow performance satisfies virtually any application or replacement of any competitor's valve
• Low torque takes only 9 ft lb of force to field adjust under flow or no-flow conditions
• Tamper-proof shield (standard) drops out of the way for easy start-up adjustments in the field for new construction and breaks away for on-the-fly adjustments in cases of emergency
• Larger handwheel ensures trouble-free operation
• Lightweight aluminum adjusting rod aids field adjustments
• Provides up to 30 psi higher residual outlet pressure than competitor models
• UL® and C-UL® Listed
• Tapped and plugged inlet and outlet for pressure gauge

Common Questions

Can I change the pressure setting after it’s installed?

Yes -- that is the point of this series. The ZW5000/ZW5004 can be factory set or adjusted in the field, unlike the ZW4000/ZW4004 series, which is factory-set only.

Specifications

• Type: Pressure Tru® Pressure Reducing Hose Valve - Field Adjustable
• Size: 2-1/2"
• Connection: FNPT
• Body Material: Bronze
• Max Pressure (psi): 400
• MPN: ZW5000IL
• Certifications: UL, C-UL
• Regulating Type: Pressure-Reducing Field-Adjustable
• Body Pattern: In-Line
