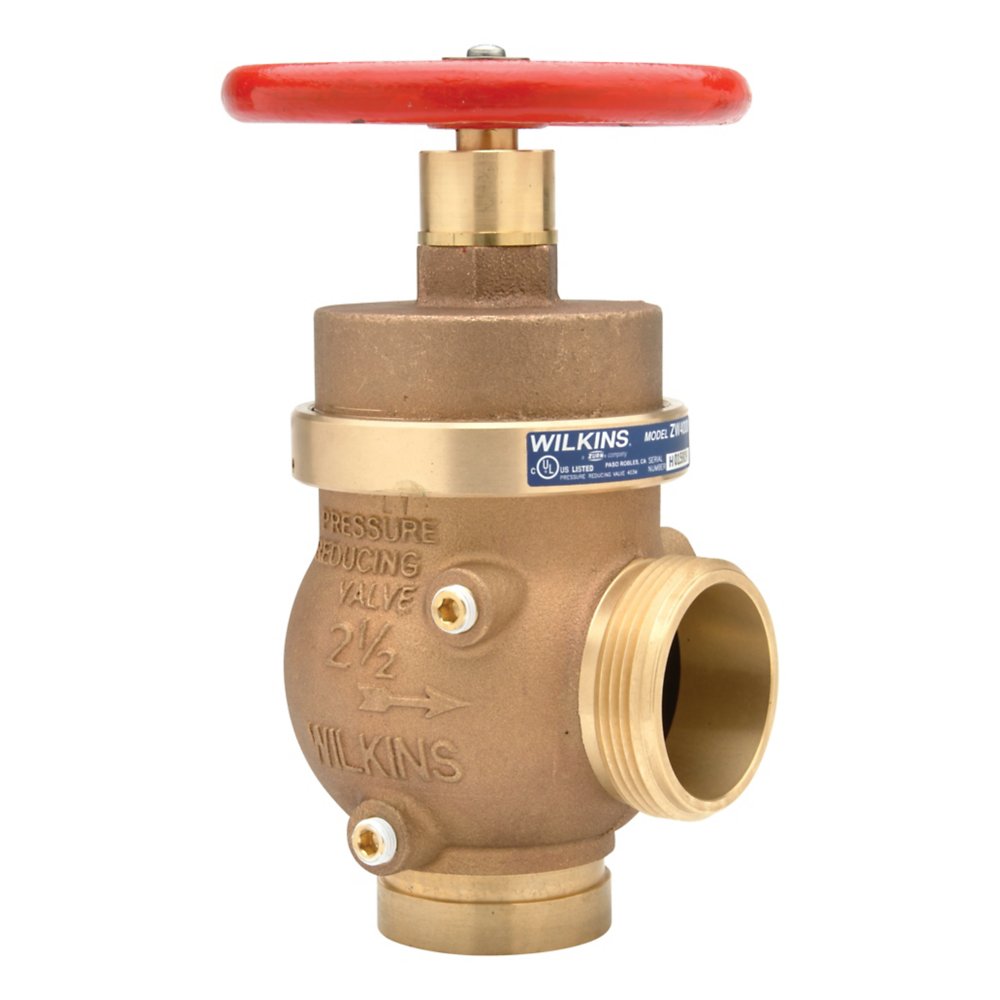

Zurn ZW4000G-Q 2-1/2" Pressure-Tru® 2-1/2" Pressure Reducing Fire Hose Valve, Bronze, Grooved

The Zurn Wilkins ZW4000G-Q is a 2-1/2" factory-set Pressure-Tru® fire hose valve, bonnet type Q, rated for a maximum inlet pressure of 310 psi, regulating outlet pressure under both flow and no-flow conditions. It features a bronze body. Rated to 310 psi.

The Pressure-Tru® 2-1/2" Pressure Reducing Fire Hose Valve with grooved inlet and male hose thread is factory set, and listed as a standpipe valve for individual hose stations in CLASS I and CLASS III systems.

Features

• Regulates pressure under both FLOW and NO-FLOW conditions
• Factory set outlet pressure setting
• Special hose threads available as an option
• Available with rough chrome finish

Common Questions

What does the bonnet letter mean?

Bonnet type Q sets the maximum rated inlet pressure at 310 psi and the residual-outlet curve this valve was built to. Choose the bonnet from Zurn’s residual-pressure chart using your inlet flow pressure and GPM demand, not by picking the highest number.

Is this factory-set or field-adjustable?

Factory-set. This is a Pressure-Tru® ZW4000/ZW4004 series valve, set at the factory to the bonnet’s rated pressure; it is not field-adjustable. If you need to set or change the outlet pressure on site, use the ZW5000/ZW5004 field-adjustable series instead.

Specifications

• Type: Pressure-Tru® 2-1/2" Pressure Reducing Fire Hose Valve
• Size: 2-1/2"
• Connection: Grooved
• Body Material: Bronze
• Max Pressure (psi): 310
• MPN: ZW4000G-Q
• Certifications: UL, C-UL
• Regulating Type: Pressure-Reducing Factory-Set
• Bonnet Type (Max Inlet Code): Q
• Body Pattern: Angle
