Specifications
Description

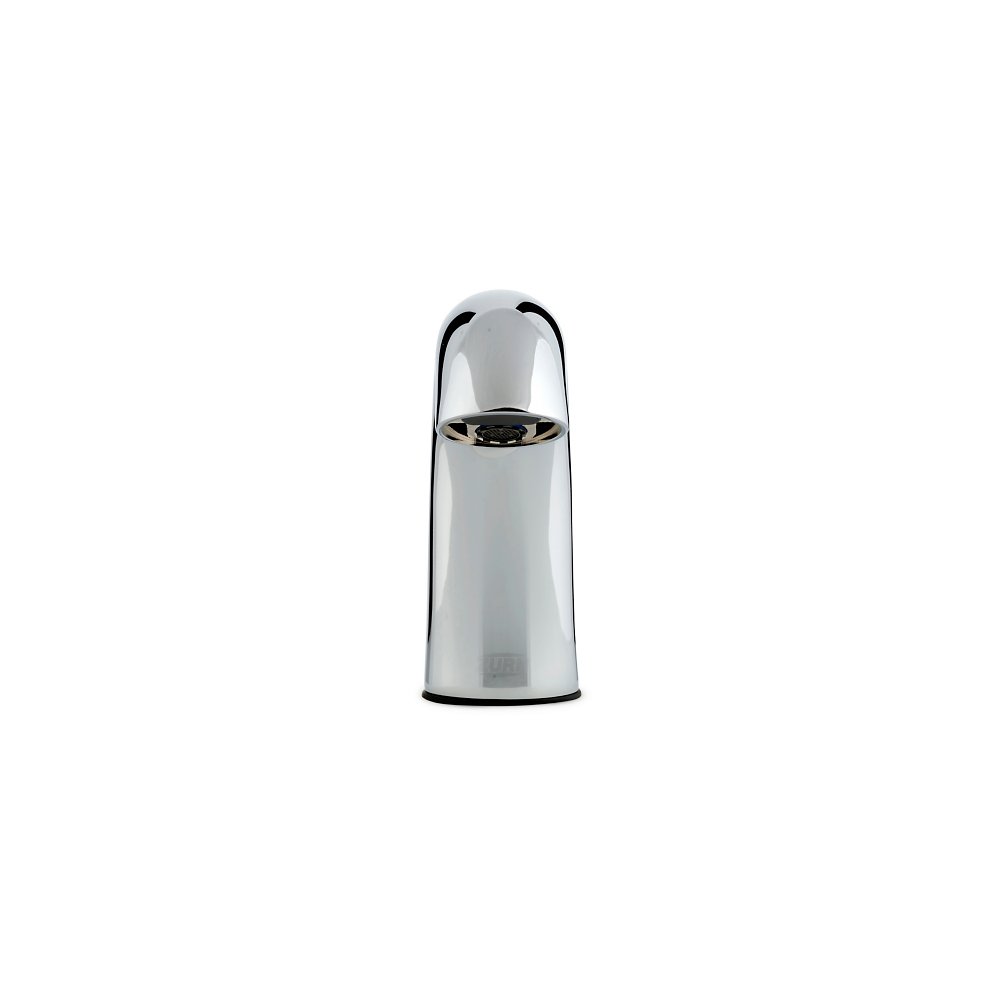

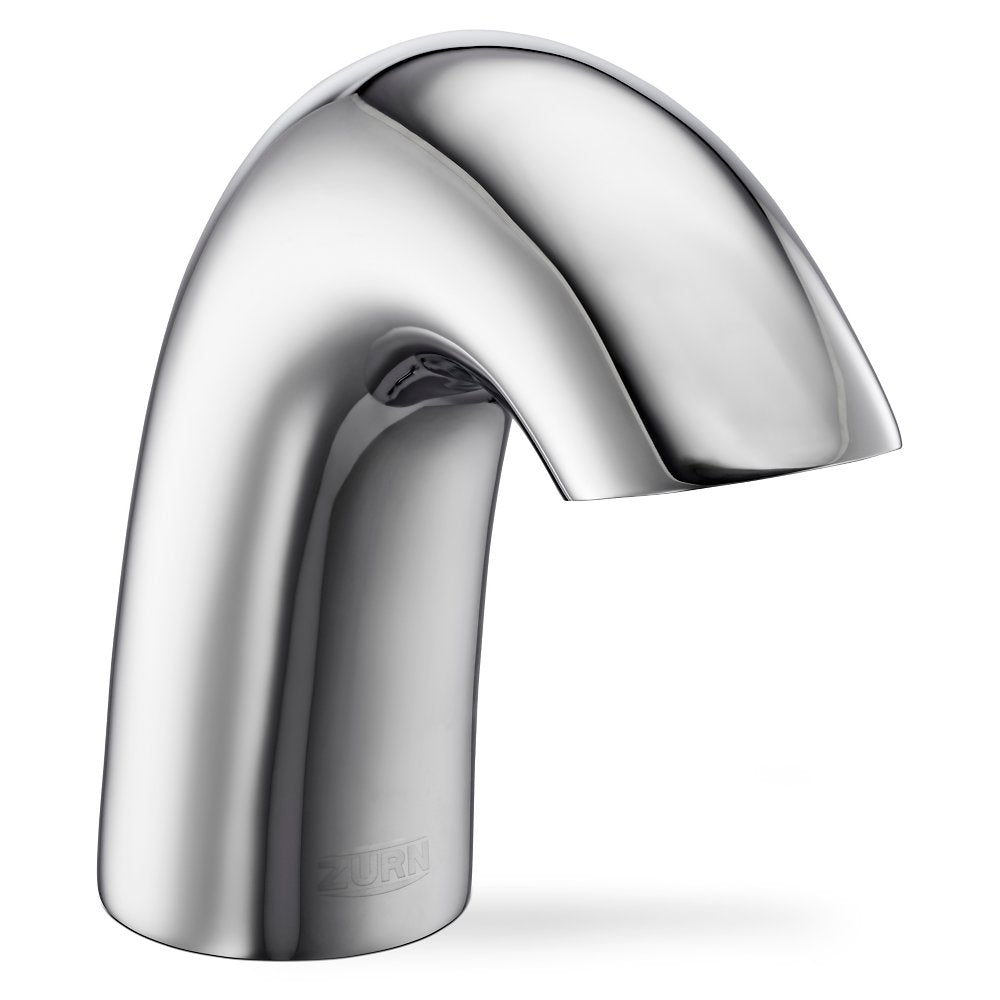

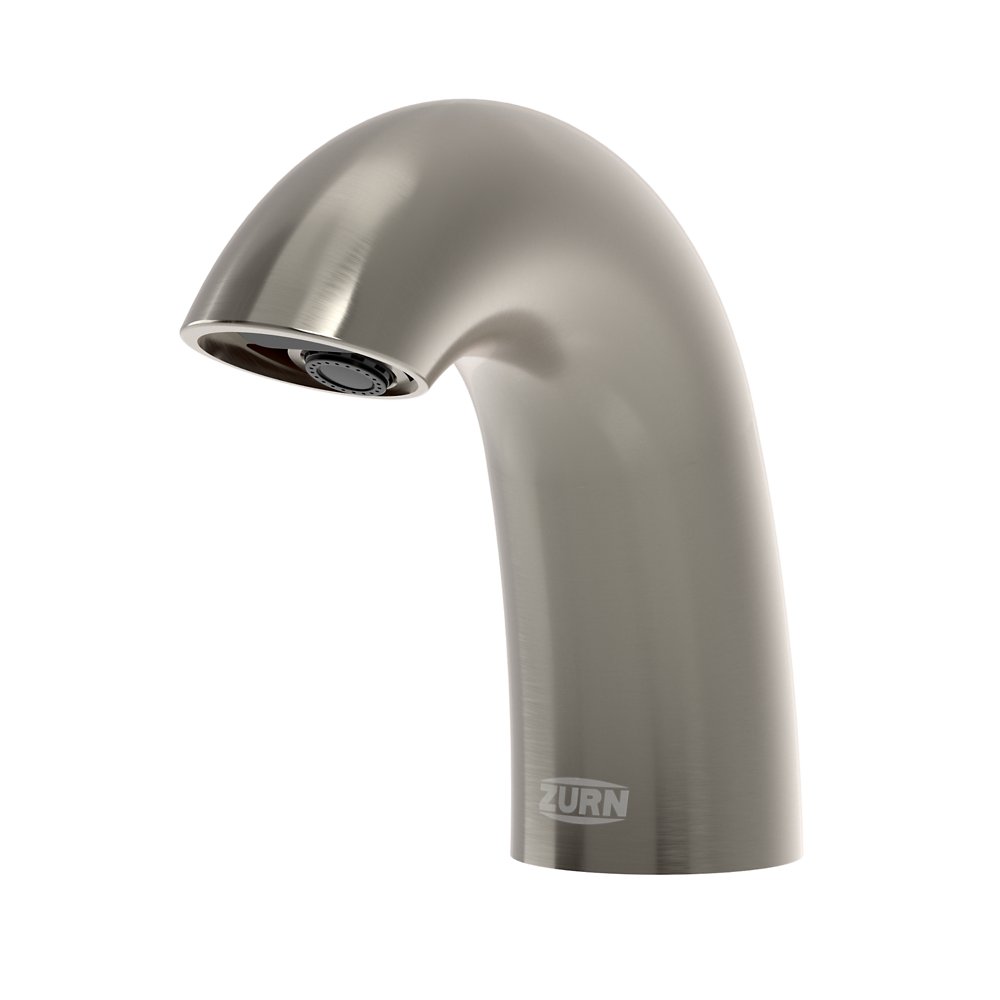

The Zurn ZG6950-TMV-1 is a sensor faucet. It includes a thermostatic mixing valve.
Create a more hygienic, sustainable and reliable restroom experience. This sensor faucet has a gear-driven ceramic cartridge with no solenoids to replace. Hydro•X Power® technology offers renewable hydropower. The high-efficiency, low-flow rate and 30-second timeout help save water to meet sustainability goals. Customize usage settings using Zurn Elkay's Bluetooth app. Upgrade to the plumbSMART™ connected option for remote monitoring that provides real-time usage insights to your connected plumbing ecosystem.
Features
- Uses EZ Gear technology, a gear-driven ceramic cartridge that is less susceptible to debris and buildup for easy maintenance; outlasts and outperforms solenoids
- Hydro•X Power® technology option delivers sustainable performance by providing renewable, uninterrupted hydropower designed to last the life of a commercial restroom
- Intuitive and effortless, no delay touchless sensor water activation
- Bluetooth app standard for point-of-use wireless programmable metering, on-demand or automatic line flushing, timeout and sensor sensitivity settings
- Shipped standard with high-efficiency water flow rates of 0.5 GPM; other flow rates available
- Quiet water flow and soft-close technology that eliminates water hammer
- ADA Compliant
Common Questions
- What makes this different from a solenoid sensor faucet?
- It uses Zurn's EZ Gear technology — a motor gear-driven ceramic cartridge, not a solenoid — which Zurn states outlasts and outperforms solenoid mechanisms.
- Does it include scald protection?
- Yes, an ASSE 1070 thermostatic mixing valve.
- How long does the water run before it shuts off?
- 30 seconds of continuous presence, then the auto-timeout closes it.
Specifications
- Type: Serio Series® Sensor Faucet With Gear-driven Ceramic Cartridge
- MPN: ZG6950-TMV-1
- Certifications: NSF-61, NSF-372, ASME A112.18.1/CSA B125.1, ADA, WaterSense
- Run Time (s): 30
- Connectivity: Wireless (Cloud Monitoring)
- Cartridge Type: Gear-Driven Ceramic
- Mixing Valve: Thermostatic Mixing Valve
- Body Style: Exposed
- Mount Type: Deck-Mount
- Coating / Finish: Polished Chrome
- Vandal Resistant: No
Details
| Series | ZG6950-TMV-1 | Device Type | Serio Series® Sensor Faucet With Gear-driven Ceramic Cartridge |
| Coating | Polished Chrome | Mount type | Deck-Mount |
| Vandal resistant | No | Cartridge type | Gear-Driven Ceramic |
| Run time s | 30 | — | — |
Certifications & Standards
| NSF-61 | NSF-372 |
| ASME A112.18.1/CSA B125.1 | ADA |
| WaterSense | — |
