Zurn ZERK-U-WS1-TM Top Mount Exposed Sensor Flush Valve Retrofit Kit for Urinal W/Gear-driven Ceramic Cartridge, Battery, AV Diaphragm

The Zurn ZERK-U-WS1-TM is a sensor-operated diaphragm-type flush valve for an urinal. It delivers 1.0 gallons per flush. It features a aquaflush filtered diaphragm seat.

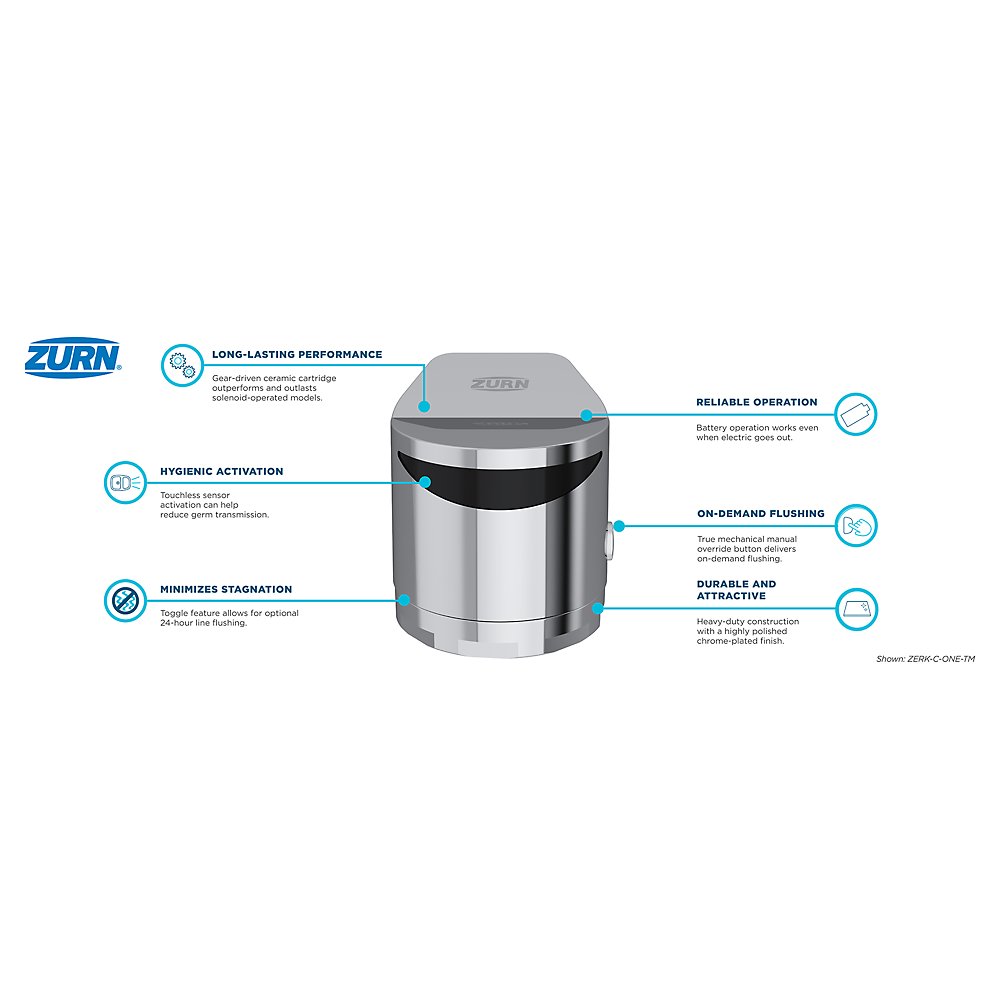

The Zurn top mount sensor flush valve with gear-driven operation provides long-lasting reliability with its updated design. It uses EZ Gear technology, which means a gear-driven ceramic cartridge acts as a pilot valve to operate the filtered diaphragm, making it a highly durable flush valve, which can help lower maintenance costs. It also includes a mechanical override button for on-demand flushing. Don’t worry if the power goes out — this flush valve is battery operated with the option for hardwiring with battery backup, which provides uninterrupted flushing, preventing standing water. These features, along with motion sensor activation provide a more hygienic restroom experience.

Features

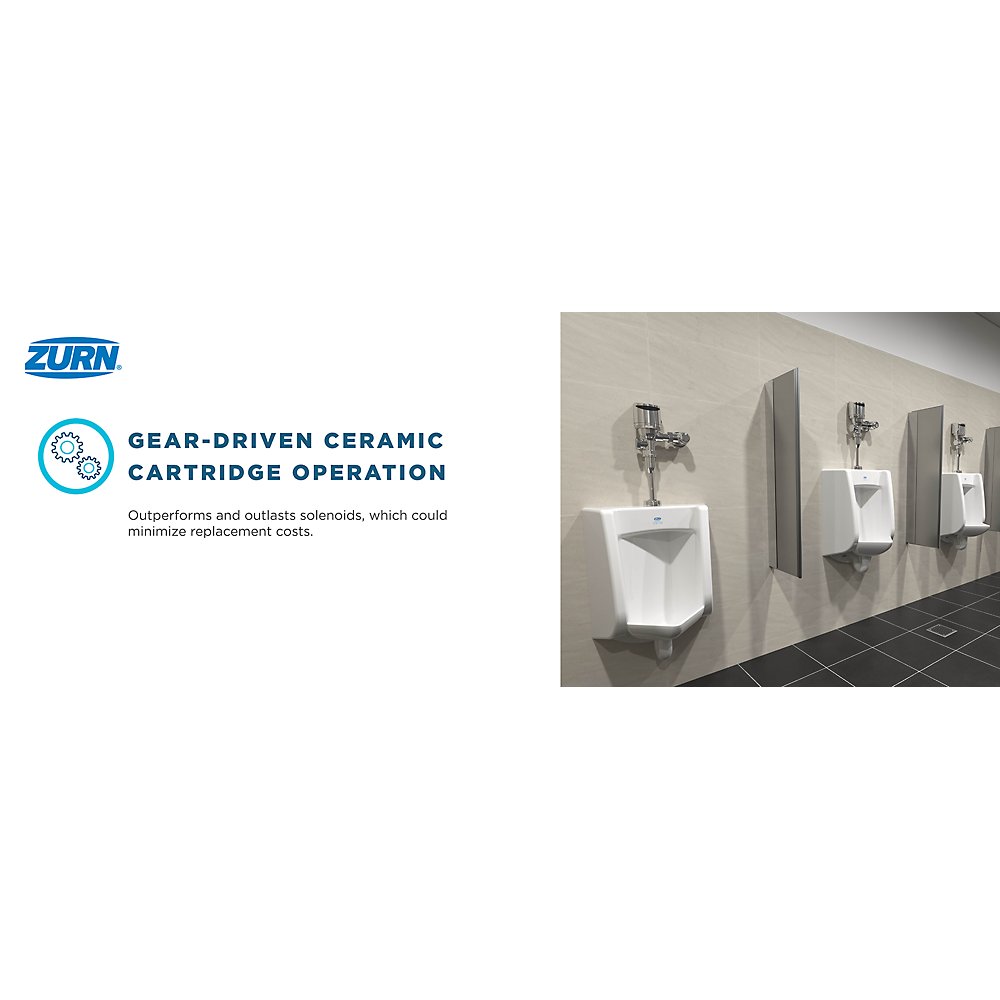

• Uses EZ Gear technology, a gear-driven ceramic cartridge that is less susceptible to debris and buildup for easy maintenance; outlasts and outperforms solenoids

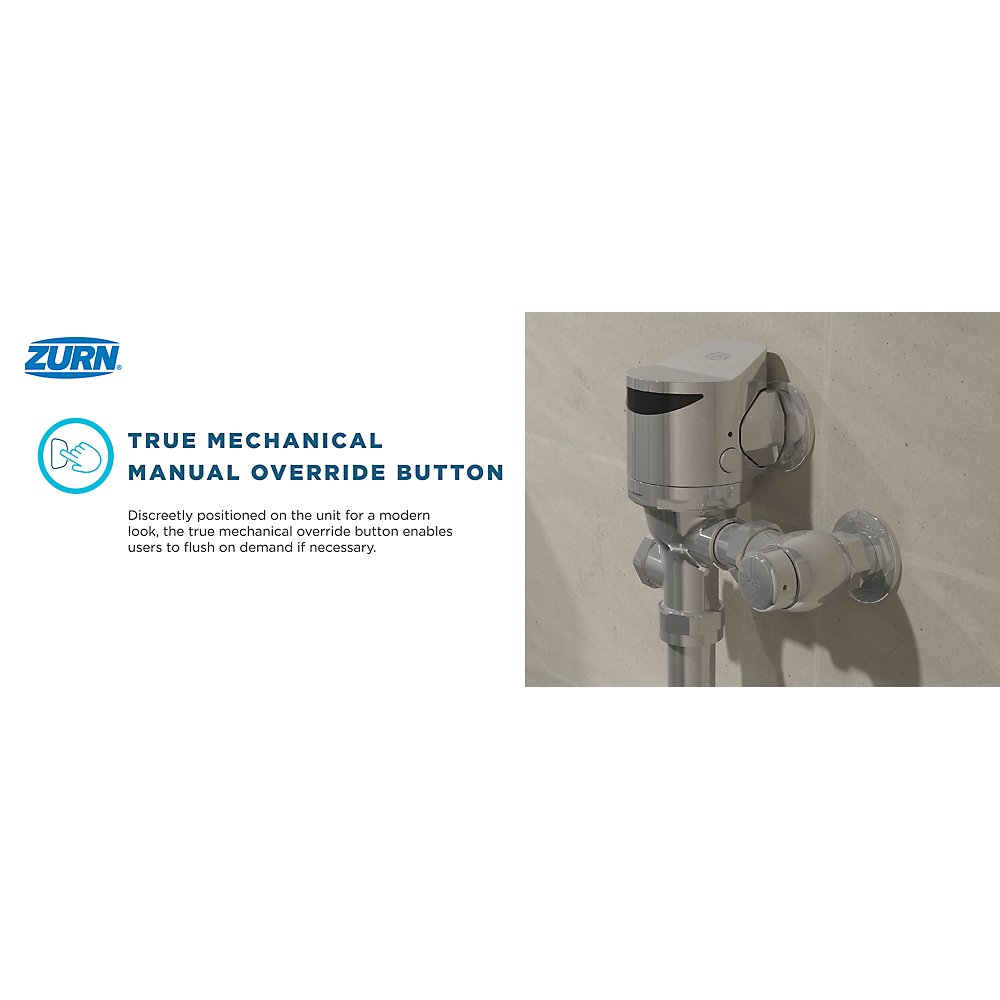

• True mechanical manual override button delivers on-demand flushing
• Standard battery operation; optional hardwire w/battery backup for uninterrupted operation even when electric goes out
• Industry-leading, filtered AquaVantage® diaphragm, gaskets and seals are made of chemical-resistant thermoplastic elastomer, which lasts 8-10 times longer than traditional rubber, reducing maintenance costs
• Toggle feature allows for optional 24-hour line flushing to help minimize stagnation and maintain fixture trap seals to protect against sewer gases during periods of inactivity
• Automatic touchless sensor activation reduces guest visits without a flush and can help reduce germ transmission
• Precision gear activation for a consistent flush
• ADA Compliant

Common Questions

How much water does this use per flush?

1.0 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.

How is the sensor powered?

Battery-powered -- no wiring required.

What fixture is this for?

A urinal, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.

What rough-in does this need?

11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.

Specifications

• Type: Top Mount Exposed Sensor Flush Valve Retrofit Kit for Urinal W/Gear-driven Ceramic Cartridge, Battery, AV Diaphragm
• Outlet Size: 3/4"
• Diaphragm Material: AquaFlush Filtered Diaphragm
• Operation: Sensor
• MPN: ZERK-U-WS1-TM
• Certifications: WaterSense
• Fixture Served: Urinal
• Body Style: Exposed
• Rough-In (in): 11-1/2"
• Volume per Flush (gal): 1.0
• Mount Type: Wall-Mount
• Finish: Polished Chrome
• Power Source: DC (Battery)
