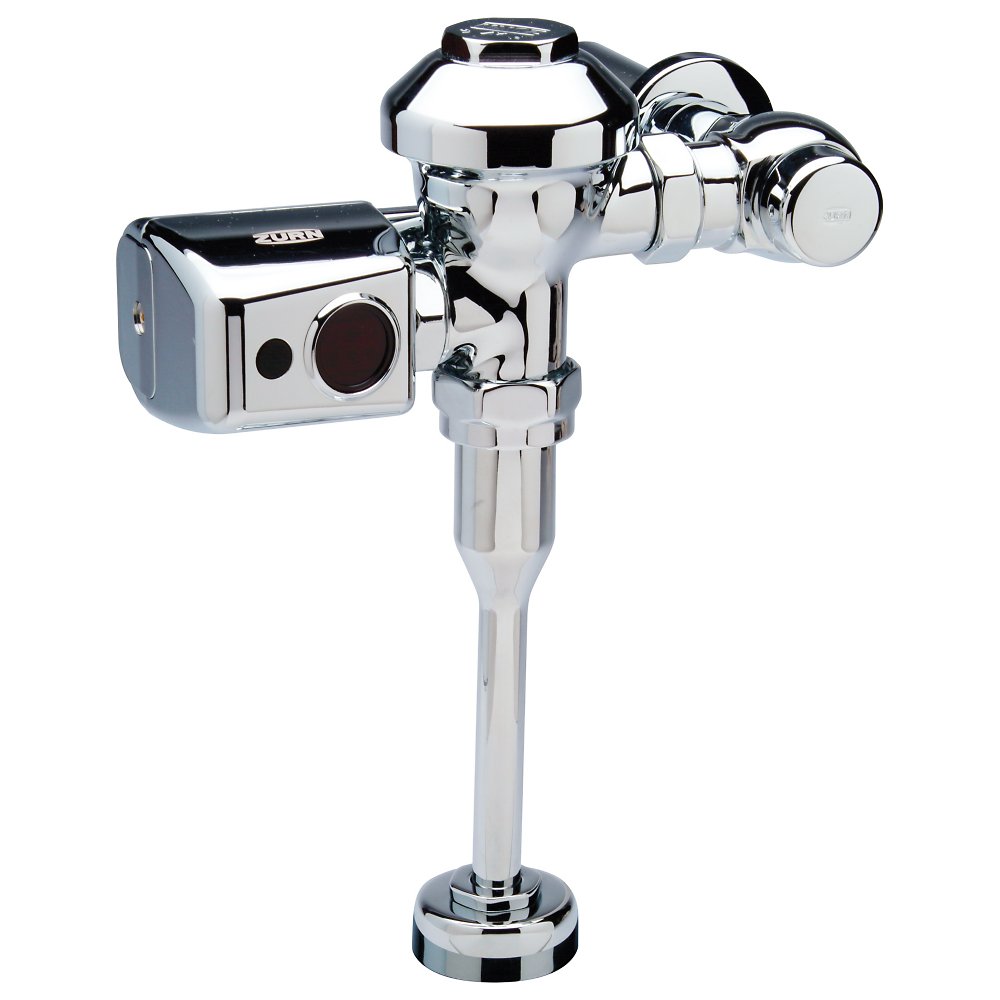

Zurn ZER6003PL-EWS-SM AquaSense® AV Exposed Flush Valve

The Zurn ZER6003PL-EWS-SM is a sensor-operated flush valve for an urinal. It delivers 0.5 gallons per flush. It features a aquaflush filtered diaphragm seat.

Sensor Flush Valve ZER6003 is ADA compliant and comes with quiet diaphragm-type which has chrome plated 1.25 GPF flushometer valve with a polished exterior. Automatic flush valve has internal seals which are made of chloramine resistant materials.

Features

• Clog-resistant linear bypass diaphragm
• Chemical resistant gaskets and seals for extended service life with lower maintenance costs
• Chrome-plated metal E-Z Flush sensor unit with 3-year battery life
• 3-year limited warranty
• WaterSense Compliant Options

Common Questions

How much water does this use per flush?

0.5 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.

How is the sensor powered?

Battery-powered -- no wiring required.

What fixture is this for?

A urinal, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.

What rough-in does this need?

11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.

Specifications

• Type: AquaSense® AV Exposed Flush Valve
• Outlet Size: 3/4"
• Diaphragm Material: AquaFlush Filtered Diaphragm
• Operation: Sensor
• MPN: ZER6003PL-EWS-SM
• Fixture Served: Urinal
• Body Style: Exposed
• Rough-In (in): 11-1/2"
• Volume per Flush (gal): 0.5
• Mount Type: Wall-Mount
• Finish: Polished Chrome
• Power Source: DC (Battery)
