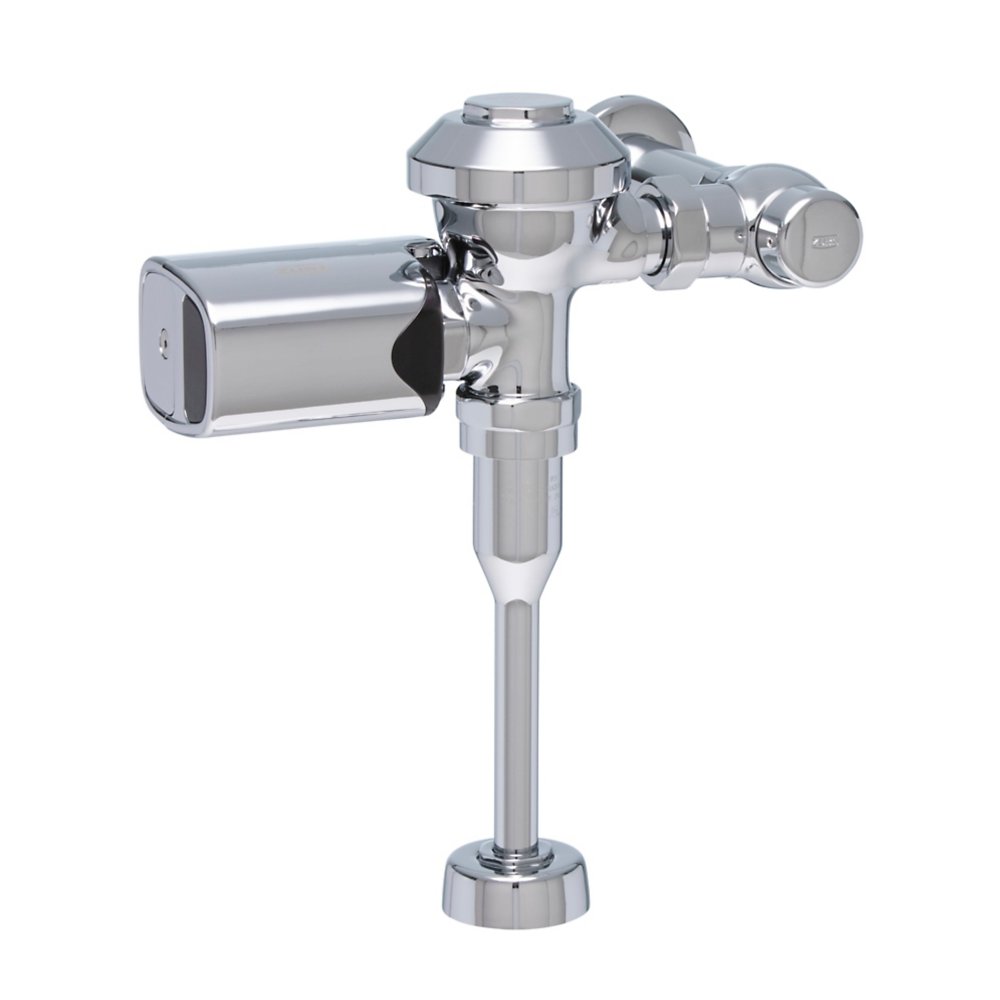

Zurn ZER6003AV-EWS-SM ZER-SM Series E-Z Flush® Sensor Diaphragm Urinal Flush Valve

The Zurn ZER6003AV-EWS-SM is a sensor-operated diaphragm-type flush valve for an urinal. It delivers 0.5 gallons per flush. It features a aquavantage tpe diaphragm seat.

Zurn’s AquaVantage ZER6003AV-SM Exposed Sensor Flush Valves are engineered to perform efficiently and reliably. Its battery-powered sensor accurately detects the user for efficient hands-free urinal operation. Flush volumes range from 1.5 gpf down to 0.125 gpf. Equipped with a durable, chrome-plated plastic cover, this diaphragm-type flush valve features a clog-resistant, triple filtered bypass and chloramine-resistant internal seals to minimize maintenance costs and hassle. The ZER6003AV-SM comes with a sweat solder kit and wall flange with set screw for the finishing touch, making it an ideal water-saving solution for any commercial retrofit or new construction project.

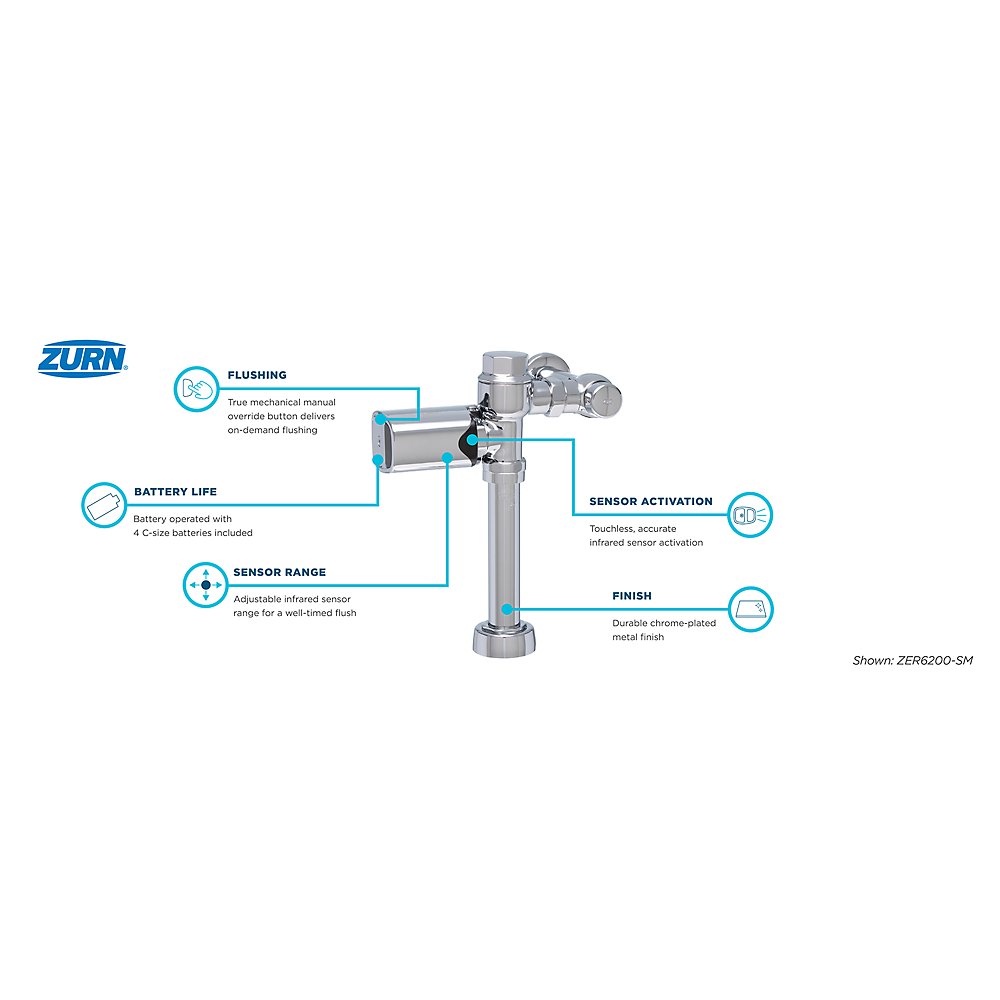

Features

• Battery-powered sensor supports a hygienic environment by eliminating touchpoints
• Dual seal diaphragm features a clog-resistant, triple filtered by-pass to ensure smooth water flow

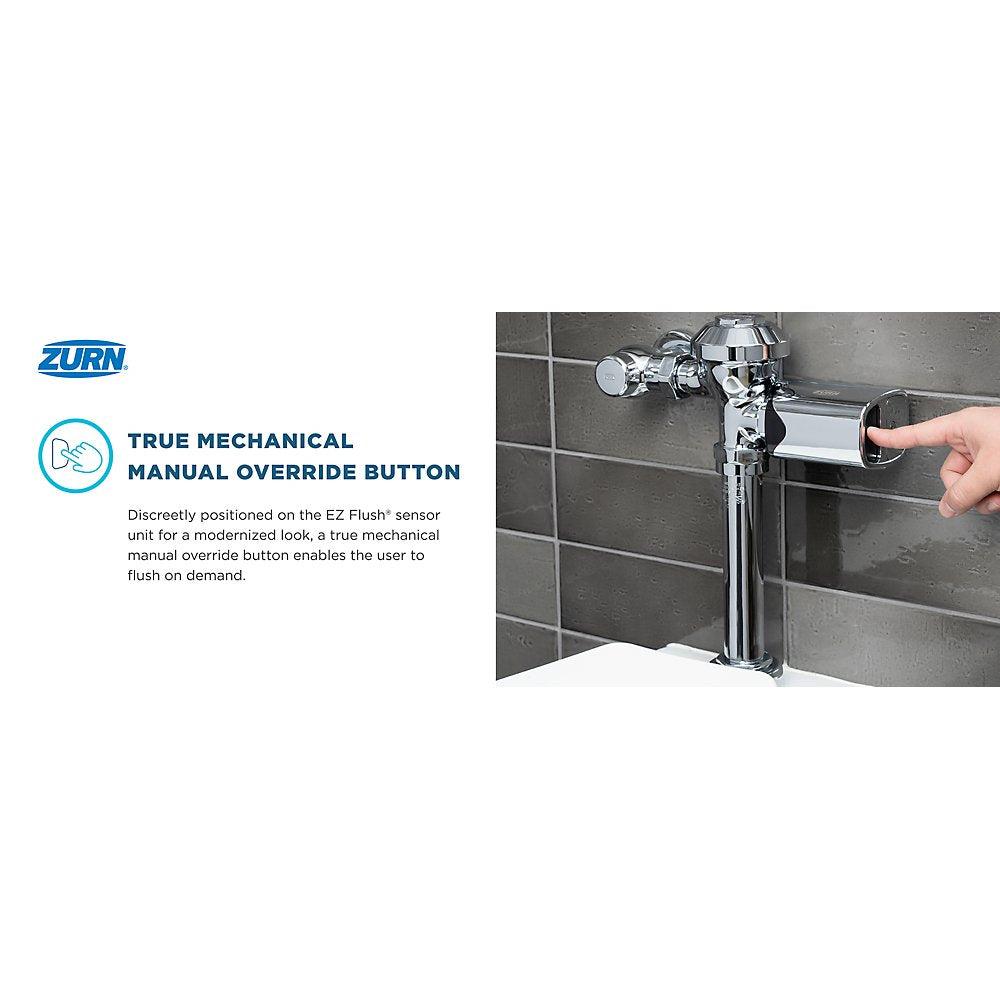

• True mechanical manual override button delivers on-demand flushing
• Control stop has internal siphon-guard protection, sweat solder kit and wall flange with set screw
• Durable polycarbonate housing allows for high-impact resistance
• Adjustable tailpiece allows for flexibility in installation
• ADA compliant

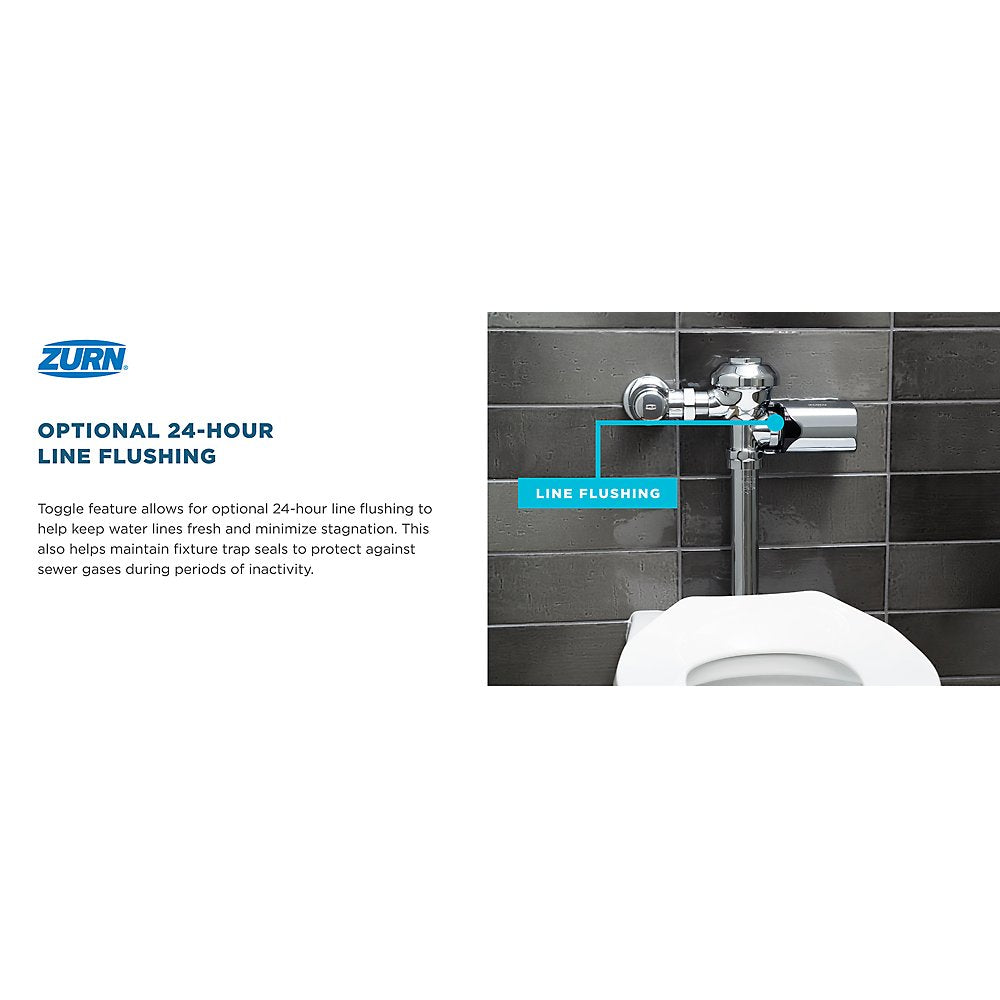

• Toggle feature allows for optional 24-hour line flushing to help minimize stagnation and maintain fixture trap seals to protect against sewer gases during periods of inactivity

Common Questions

How much water does this use per flush?

0.5 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.

How is the sensor powered?

Battery-powered -- no wiring required.

What fixture is this for?

A urinal, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.

What rough-in does this need?

11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.

How does this connect to the fixture?

A Top Spud connection, per Zurn's own spec for this model.

Specifications

• Type: ZER-SM Series E-Z Flush® Sensor Diaphragm Urinal Flush Valve
• Outlet Size: 3/4"
• Diaphragm Material: AquaVantage TPE Diaphragm
• Operation: Sensor
• MPN: ZER6003AV-EWS-SM
• Certifications: ADA, WaterSense, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11-1/2"
• Volume per Flush (gal): 0.5
• Backflow Device: Vacuum Breaker
• Mount Type: Wall-Mount
• Finish: Polished Chrome
• Power Source: DC (Battery)
