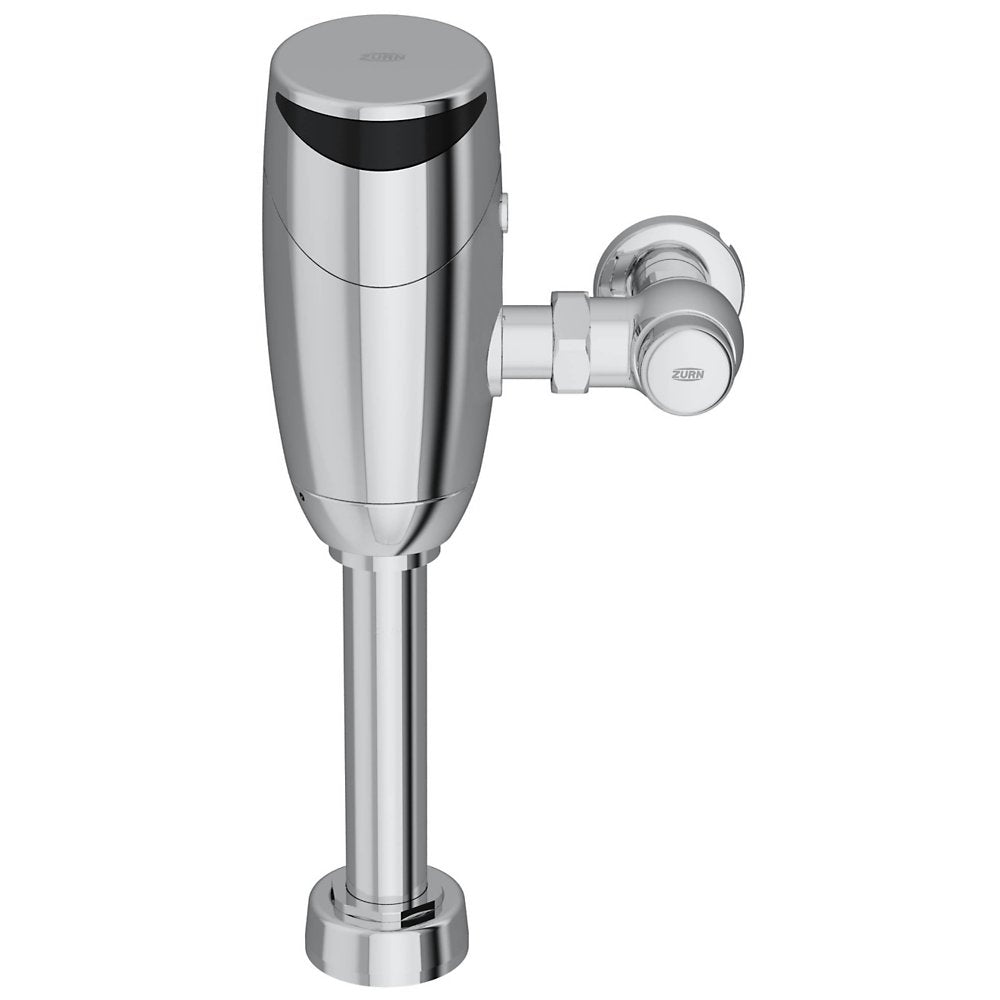

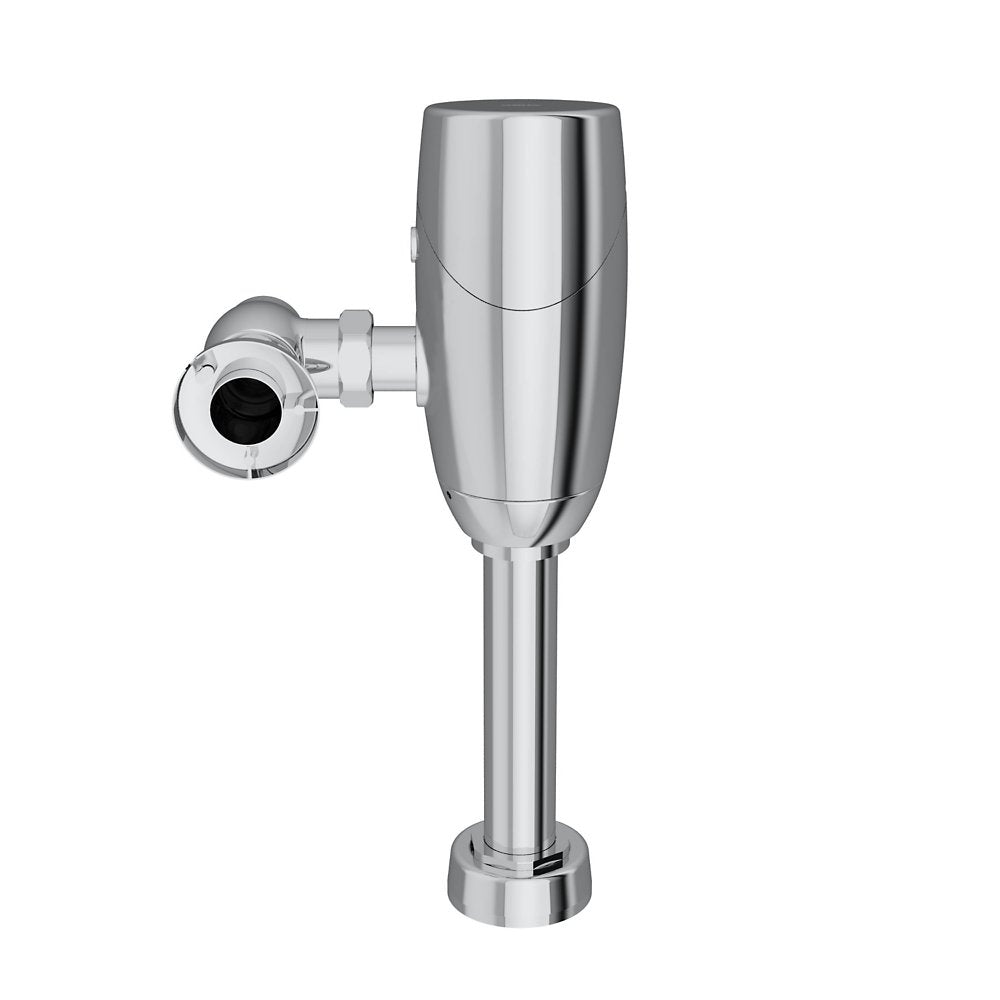

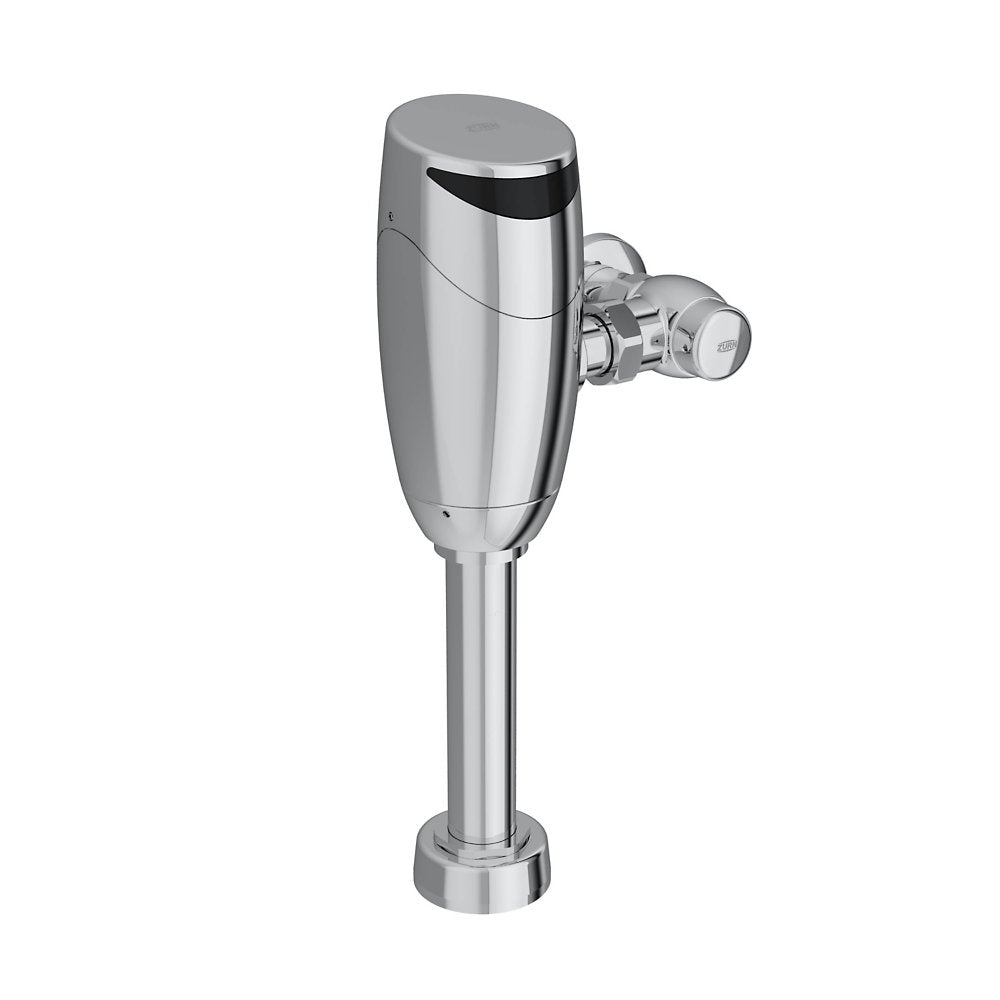

Zurn ZER6000AV-ONE-HYD-BN Top Mount Exposed Sensor Flush Valve for Water Closet With Gear-driven Ceramic Cartridge, Hydropower, AquaVantage® Diaphragms

The Zurn ZER6000AV-ONE-HYD-BN is a sensor-operated diaphragm-type flush valve for a water closet. It delivers 1.1 gallons per flush. It features a aquavantage tpe diaphragm seat.

Experience reliable, hands-free operation designed to last the life expectancy of a commercial restroom. This sensor flush valve for water closets requires no hard wiring or battery replacement, which means lower installation and maintenance costs. The gear-operated flush valve features a clog-resistant filtered diaphragm. It is sensor activated to support a more hygienic environment by eliminating touch points. Pair with Hydro•X Power® faucets to maximize sustainable restroom goals. Customize usage settings using Zurn Elkay's Bluetooth app or upgrade to the smart connected option for fleet management, including real-time data.

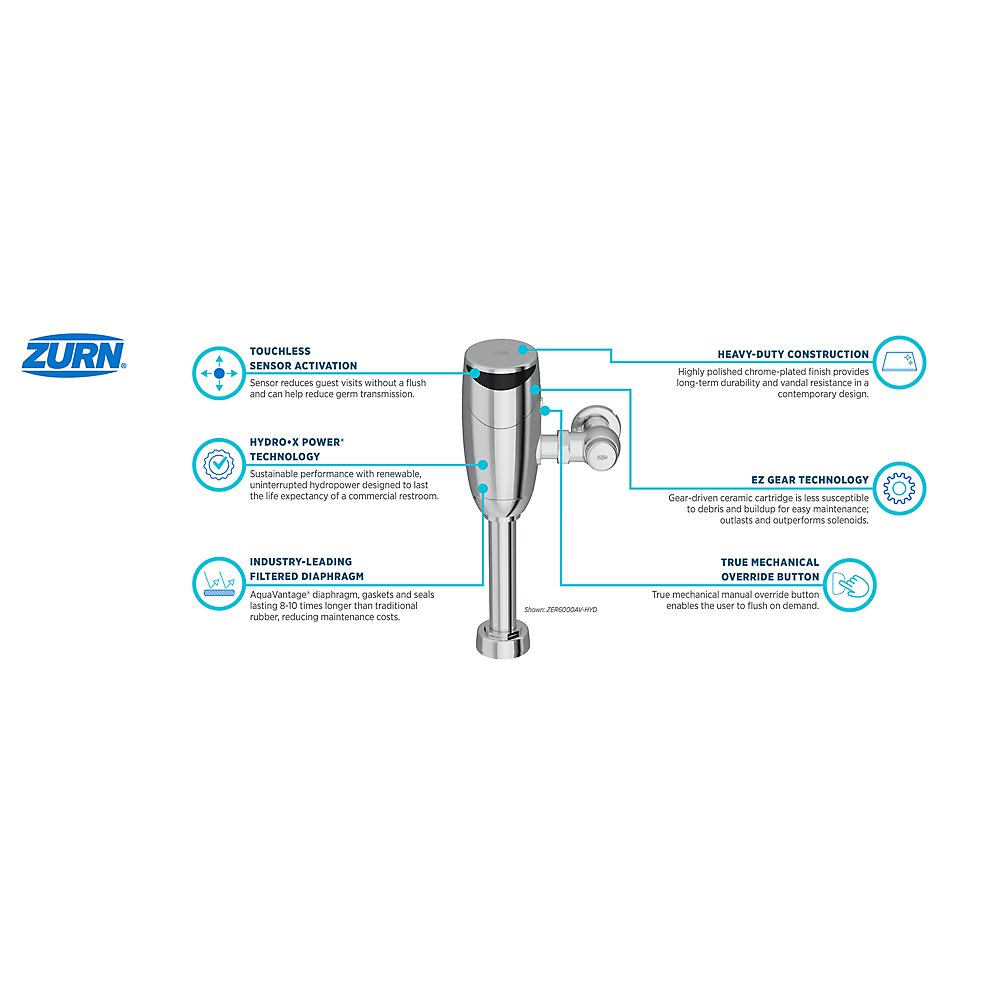

Features

• Hydro•X Power® technology delivers sustainable performance by providing renewable, uninterrupted hydropower designed to last the life expectancy of a commercial restroom
• Uses EZ Gear technology, a gear-driven ceramic cartridge that is less susceptible to debris and buildup for easy maintenance; outlasts and outperforms solenoids
• Industry-leading, filtered AquaVantage® diaphragm, gaskets and seals are made of chemical-resistant thermoplastic elastomer, which lasts 8-10 times longer than traditional rubber, reducing maintenance costs
• Automatic touchless sensor activation reduces guest visits without a flush and can help reduce germ transmission
• True mechanical override button delivers on-demand manual flushing
• Heavy-duty construction with a standard highly polished chrome-plated finish – or optional PVD Brushed Nickle, Matte Black finishes – provides long-term durability and vandal resistance in a contemporary design
• Standard 24-hour line flushing to help minimize stagnation and maintain fixture trap seals to protect against sewer gases during periods of inactivity
• Available in water closet flush volumes 1.1 gpf, 1.28 gpf 1.6 gpf, dual flush 1.6/1.1 gpf, dual flush 1.28 / 1.1
• Bluetooth app standard for point-of-use wireless power source stratus, on-demand or automatic line flushing, timeout and sensor sensitivity settings
• User-in-view LED indicator light

Common Questions

How much water does this use per flush?

1.1 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.

How is the sensor powered?

Hydro•X Power®: a self-contained water-flow turbine generates its own power every flush, so there is no battery to replace and no wiring to run.

What fixture is this for?

A water closet, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.

What rough-in does this need?

11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.

Specifications

• Type: Top Mount Exposed Sensor Flush Valve for Water Closet With Gear-driven Ceramic Cartridge, Hydropower, AquaVantage® Diaphragms
• Outlet Size: 1-1/2"
• Diaphragm Material: AquaVantage TPE Diaphragm
• Operation: Sensor
• MPN: ZER6000AV-ONE-HYD-BN
• Certifications: ADA, WaterSense
• Fixture Served: Water Closet
• Body Style: Exposed
• Rough-In (in): 11-1/2"
• Volume per Flush (gal): 1.1
• Mount Type: Wall-Mount
• Finish: Brushed Nickel
• Vandal Resistant: Yes
• Power Source: SSPS (Turbine)
• Power Supply Detail: Hydro•X Power® Turbine (No Battery or Wiring)
• Connectivity: Wireless (Cloud Monitoring)
