Description

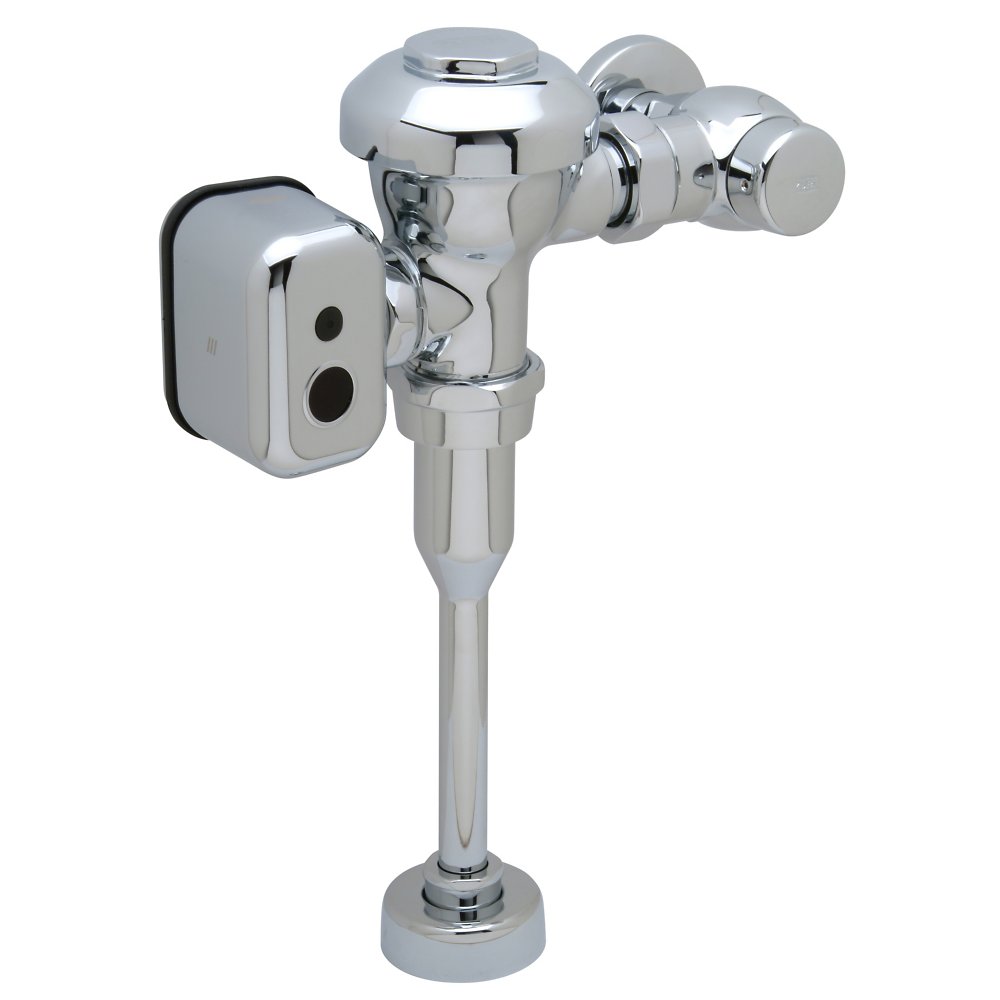

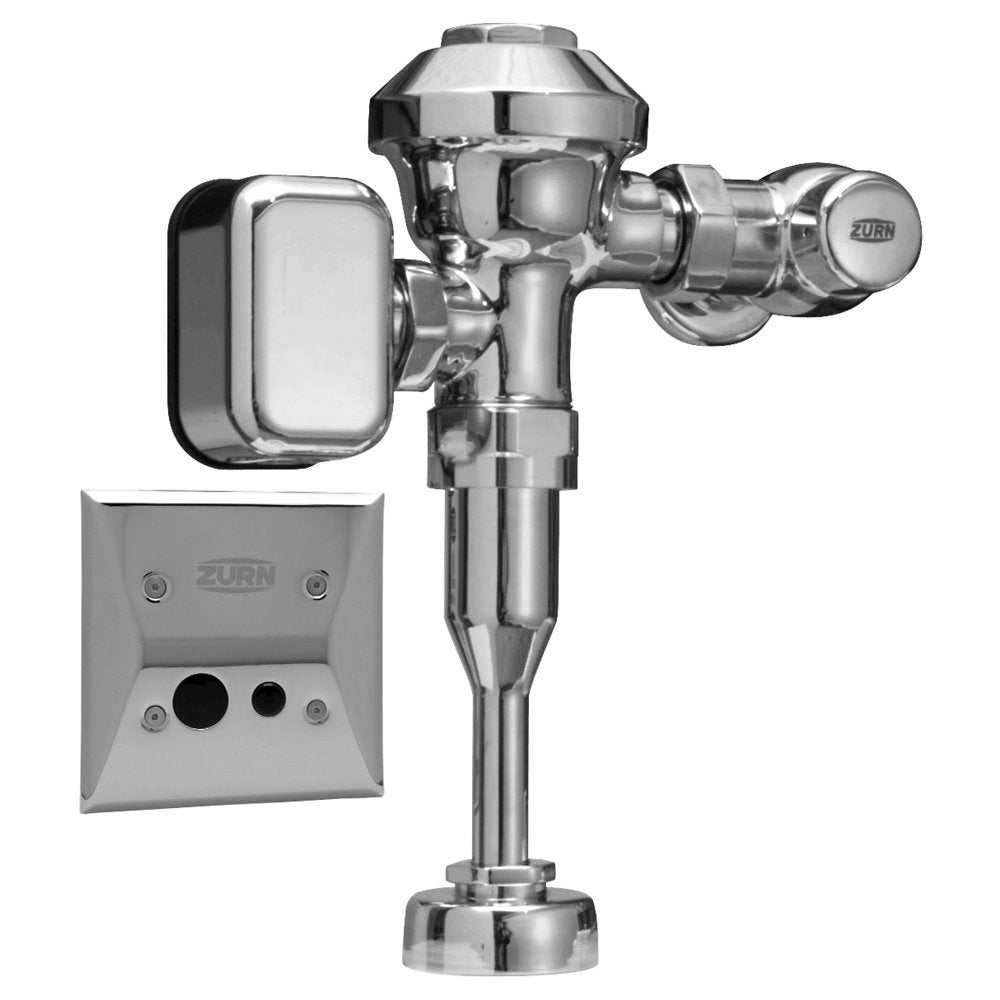

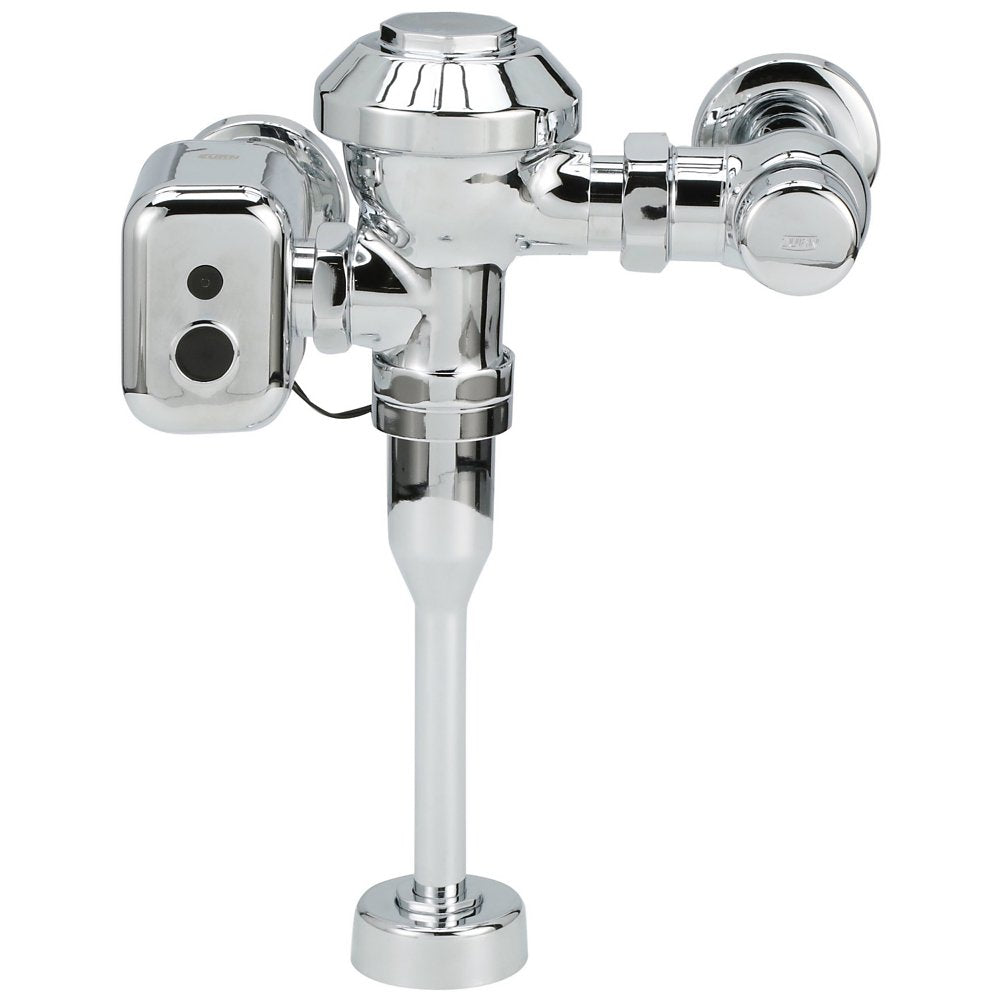

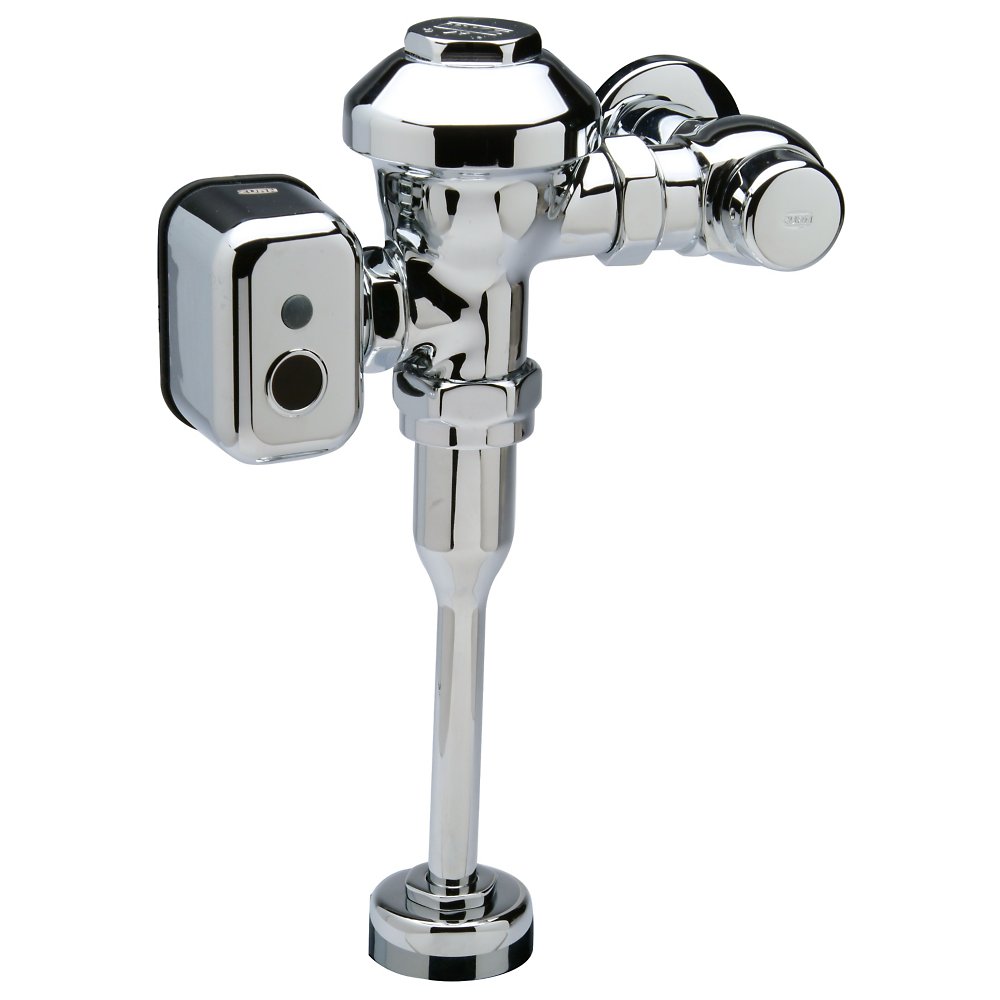

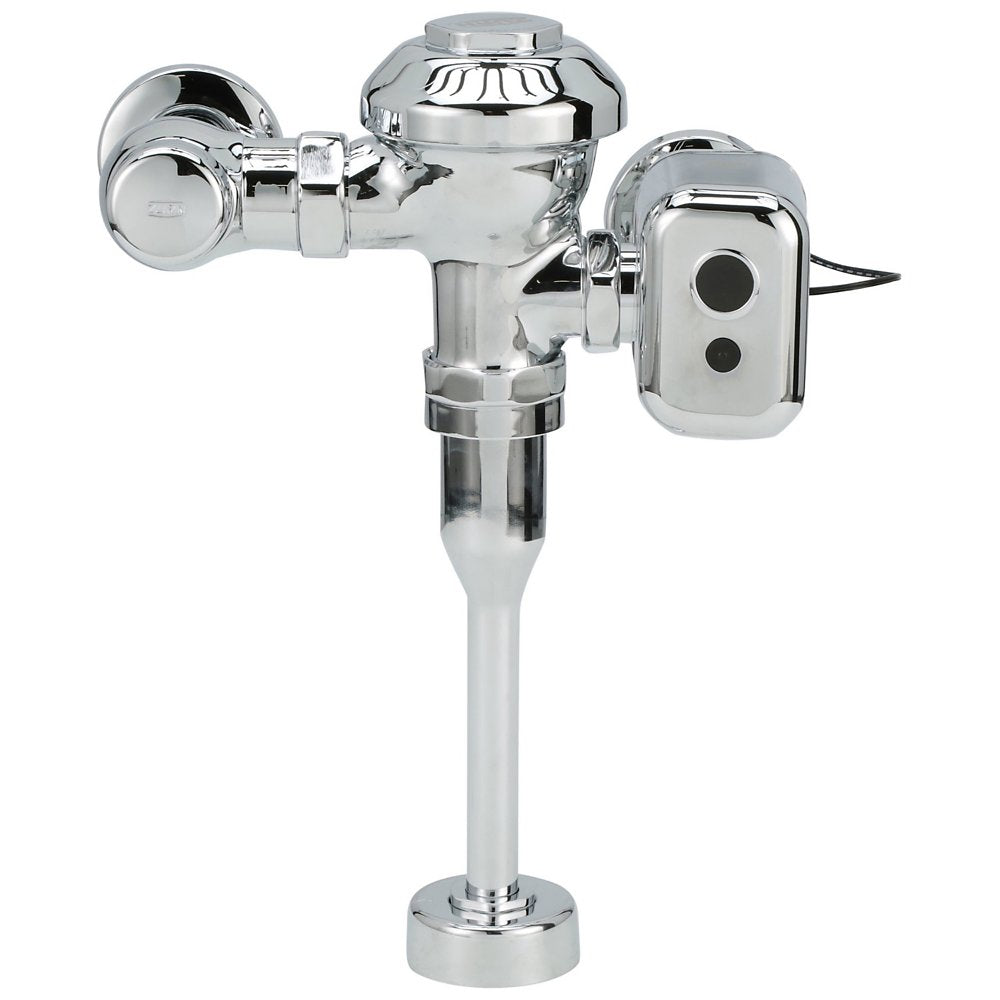

The Zurn ZEMS6003PL-ULF-IS is a sensor-operated flush valve for an urinal. It delivers 0.125 gallons per flush. It features a aquaflush filtered diaphragm seat.
Aquaflush® ZEMS Exposed Hardwired Sensor Diaphragm Flush Valve with 0.5 gpf, 11-1/2" Rough-In, 3/4" Top Spud, Cast Wall Flange, and Sweat Solder Kit in Chrome
Features
- Clog-resistant linear bypass diaphragm
- Chemical resistant gaskets and seals for extended service life with lower maintenance costs
- Low voltage, integrated sensor, and side-mounted motor operator for easy installation and usage
- 3-year limited warranty
Common Questions
- How much water does this use per flush?
- 0.125 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.
- How is the sensor powered?
- Hardwired 120 VAC -- plan for an electrician to run power to the fixture; no battery to replace.
- What fixture is this for?
- A urinal, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.
- What rough-in does this need?
- 11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.
- How does this connect to the fixture?
- A Top Spud connection, per Zurn's own spec for this model.
Specifications
- Type: AquaFlush Exposed Hardwired Automatic Sensor Flush Valve For 3/4" Urinals
- Outlet Size: 3/4"
- Diaphragm Material: AquaFlush Filtered Diaphragm
- Operation: Sensor
- MPN: ZEMS6003PL-ULF-IS
- Certifications: ADA, WaterSense, ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11-1/2"
- Volume per Flush (gal): 0.125
- Backflow Device: Vacuum Breaker
- Mount Type: Wall-Mount
- Finish: Polished Chrome
- Power Source: Hardwired AC
- Sensor Type: Infrared
Dimensions
| Outlet Size | 3/4" | — | — |
Details
| Series | ZEMS6003PL-ULF-IS | Device Type | AquaFlush Exposed Hardwired Automatic Sensor Flush Valve For 3/4" Urinals |
| Seat Material | AquaFlush Filtered Diaphragm | Operation | Sensor |
| Fixture Served | Urinal | Backflow device | Vacuum Breaker |
| Coating | Polished Chrome | Cycle volume gal | 0.125 gal |
| Mount type | Wall-Mount | Rough in in | 11-1/2" |
| Spud connection | Top Spud | Power source | Hardwired AC |
Certifications & Standards
| ADA | WaterSense |
| ASSE-1037 | — |
