Description

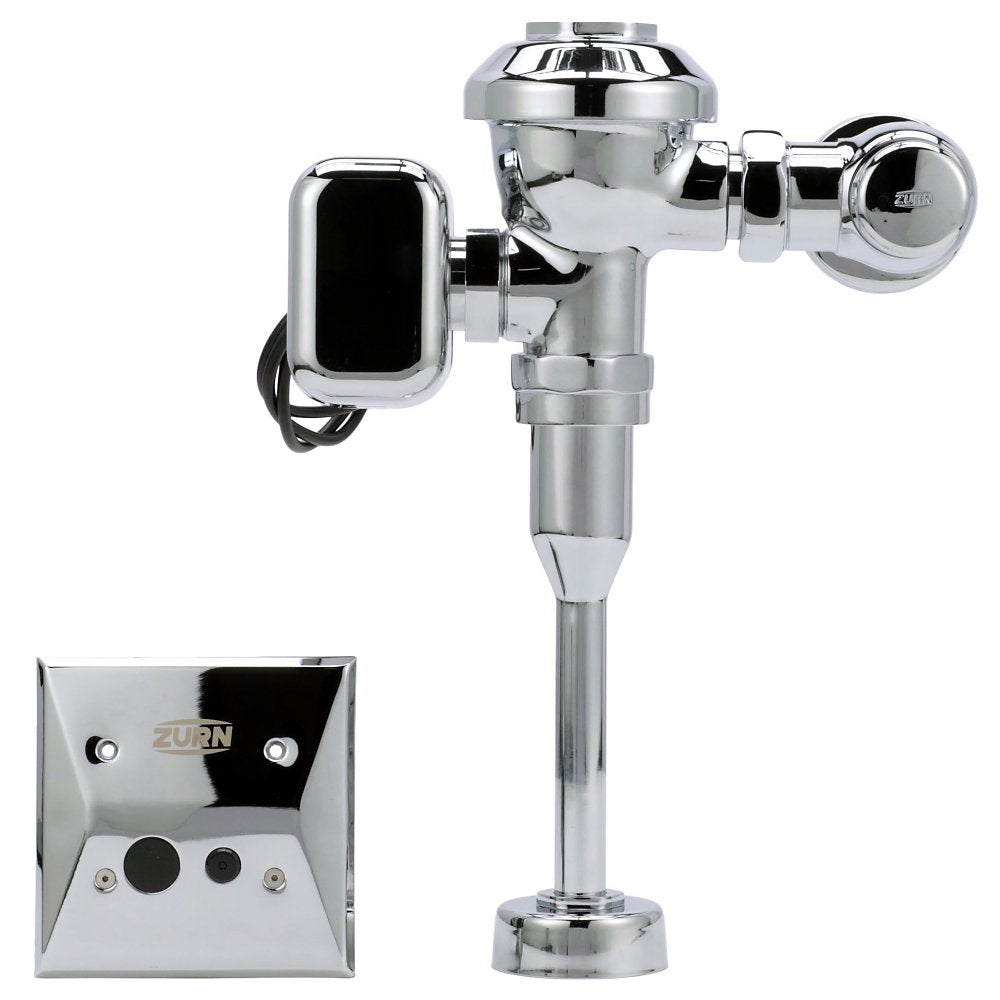

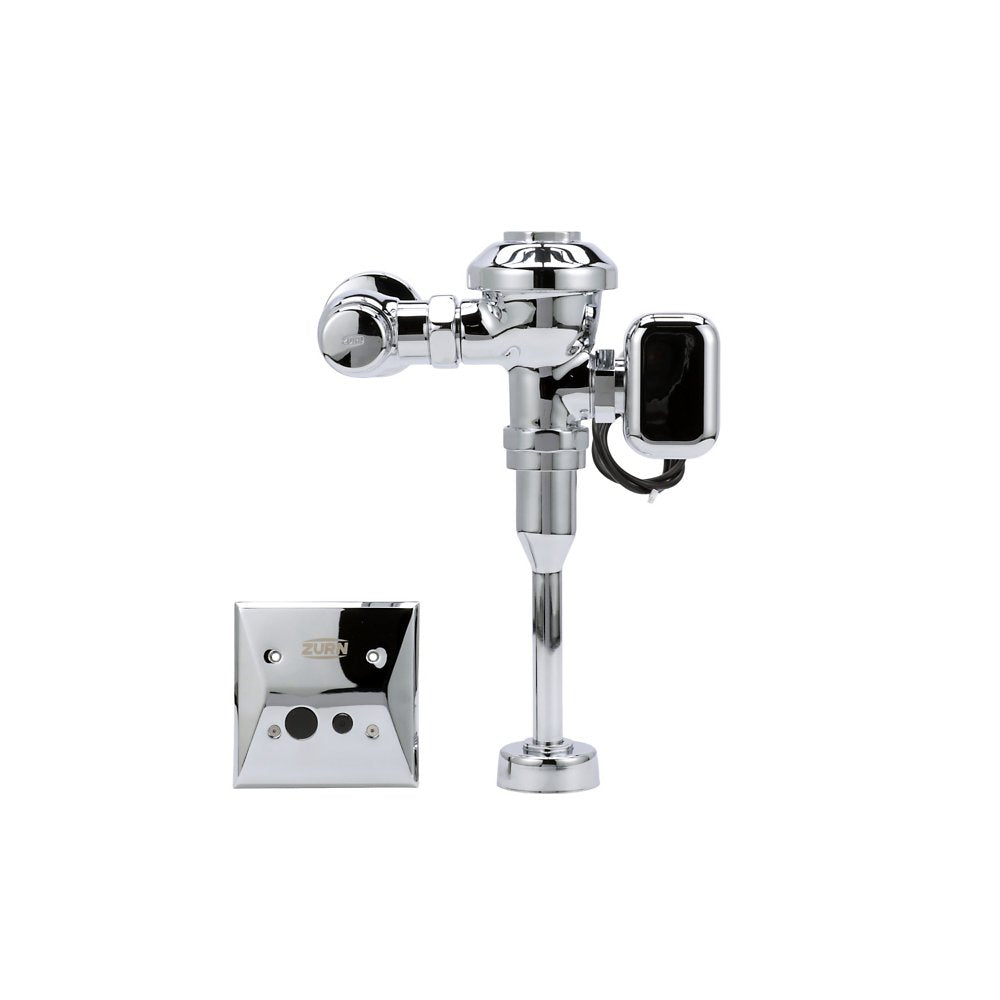

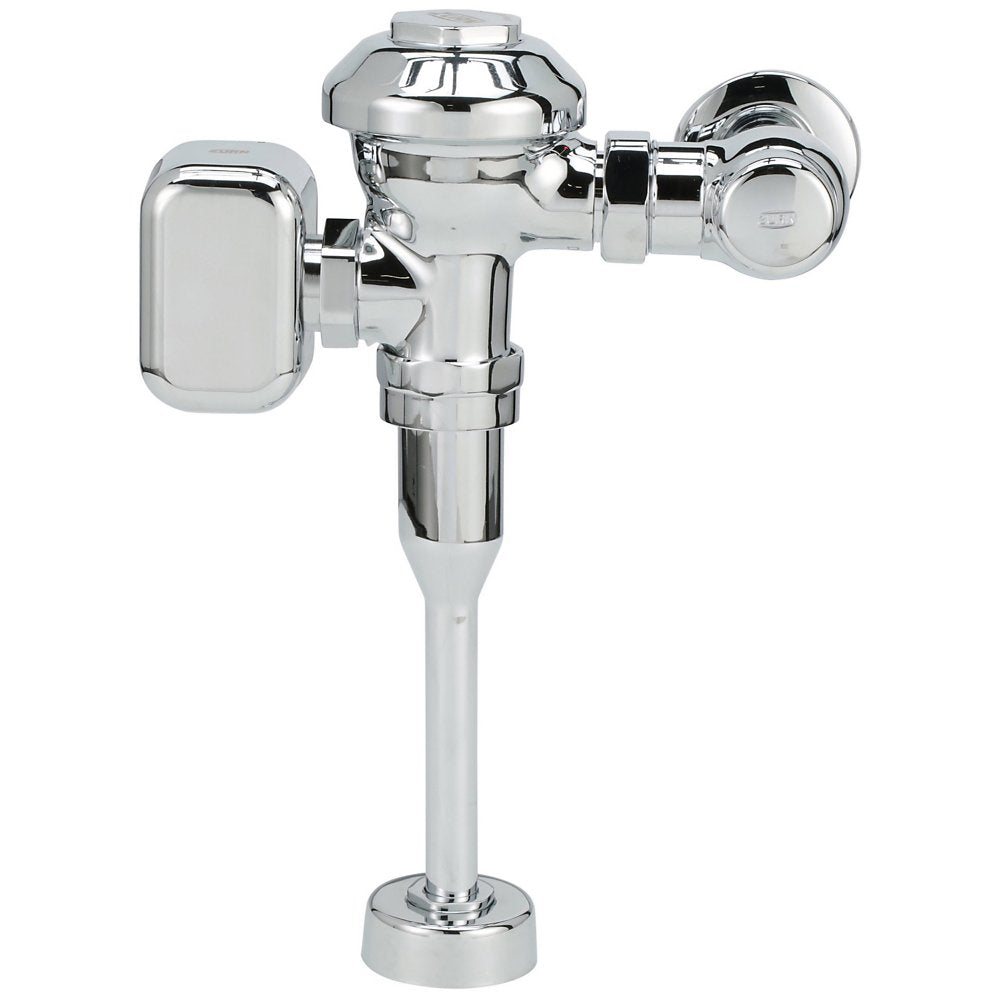

The Zurn ZEMS6003AV-ULF.0003 is a sensor-operated flush valve for an urinal. It delivers 0.125 gallons per flush. It features a aquavantage tpe diaphragm seat.
Although products with certain combinations of options and features will meet or comply with these standards and/or certifications, not every combination of options and features will result in such compliance. If you have any questions about your particular product, please contact our Customer Care Dept. at 1-855-ONE-ZURN (United States) or 1-877-892-5216 (Canada) for confirmation.
Features
- Clog-resistant triple filter diaphragm
- Chemical resistant gaskets and seals for extended service life with lower maintenance costs
- Low voltage, hardwired in wall sensor, and override button with side mount motor operator
- 3-year limited warranty
Common Questions
- How much water does this use per flush?
- 0.125 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.
- How is the sensor powered?
- Hardwired 120 VAC -- plan for an electrician to run power to the fixture; no battery to replace.
- What fixture is this for?
- A urinal, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.
- What rough-in does this need?
- 11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.
Specifications
- Type: AquaSense® AV Hardwired Exposed Low Consumption Sensor Flush Valve for Urinals
- Outlet Size: 3/4"
- Diaphragm Material: AquaVantage TPE Diaphragm
- Operation: Sensor
- MPN: ZEMS6003AV-ULF.0003
- Fixture Served: Urinal
- Body Style: Exposed
- Rough-In (in): 11-1/2"
- Volume per Flush (gal): 0.125
- Mount Type: Wall-Mount
- Power Source: Hardwired AC
Dimensions
| Outlet Size | 3/4" | — | — |
Details
| Series | ZEMS6003AV-ULF | Device Type | AquaSense® AV Hardwired Exposed Low Consumption Sensor Flush Valve for Urinals |
| Seat Material | AquaVantage TPE Diaphragm | Operation | Sensor |
| Fixture Served | Urinal | Cycle volume gal | 0.125 gal |
| Mount type | Wall-Mount | Rough in in | 11-1/2" |
| Power source | Hardwired AC | — | — |
