Description

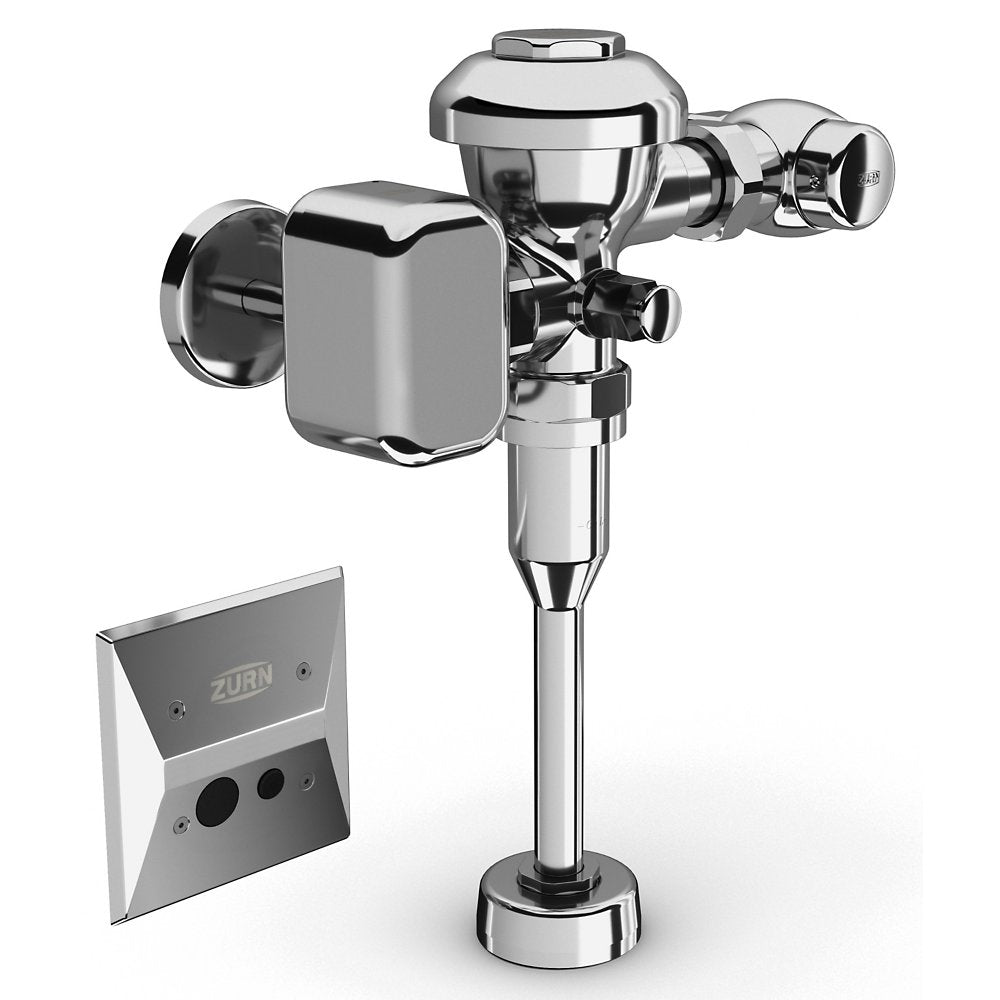

The Zurn ZEMS6003AV-MOB-W1 is a sensor-operated flush valve for an urinal. It delivers 1.5 gallons per flush. It features a brass body and a aquavantage tpe diaphragm seat.
Sensor Flush Valve ZEMS6003AV-MOB-W1 comes with wireless monitoring technology which tracks data around set parameters for usage, water consumption, and preventative maintenance - providing real time insights for more control over your plumbing systems.
Features
- Exposed, chrome plated 0.125 gpf sensor flush valve with wireless usage monitoring
- Clog-resistant triple filter diaphragm
- Chemical resistant gaskets and seals for extended service life with lower maintenance costs
- Low voltage, hardwired in wall sensor, and override button with side mount motor operator
- Customizable alert parameters for usage, water consumption and preventative maintenance
- Opt in to real-time notifications via email or text
- View dashboard-style device alerts, performance data and trends via a secure web portal with 24/7 access
Common Questions
- How much water does this use per flush?
- 1.5 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.
- How is the sensor powered?
- Hardwired 120 VAC -- plan for an electrician to run power to the fixture; no battery to replace.
- What fixture is this for?
- A urinal, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.
- What rough-in does this need?
- 11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.
- How does this connect to the fixture?
- A Top Spud connection, per Zurn's own spec for this model.
Specifications
- Type: Connected Hardwired Sensor Flush Valve For Urinals
- Outlet Size: 3/4"
- Body Material: Brass
- Diaphragm Material: AquaVantage TPE Diaphragm
- Operation: Sensor
- MPN: ZEMS6003AV-MOB-W1
- Certifications: ADA, WaterSense
- Fixture Served: Urinal
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11-1/2"
- Volume per Flush (gal): 1.5
- Backflow Device: Vacuum Breaker
- Mount Type: Wall-Mount
- Finish: Polished Chrome
- Vandal Resistant: Yes
- Power Source: Hardwired AC
- Connectivity: Wireless (Cloud Monitoring)
Dimensions
| Outlet Size | 3/4" | — | — |
Details
| Series | ZEMS6003AV-MOB-W1 | Device Type | Connected Hardwired Sensor Flush Valve For Urinals |
| Body Material | Brass | Seat Material | AquaVantage TPE Diaphragm |
| Operation | Sensor | Fixture Served | Urinal |
| Backflow device | Vacuum Breaker | Coating | Polished Chrome |
| Cycle volume gal | 1.5 gal | Mount type | Wall-Mount |
| Rough in in | 11-1/2" | Spud connection | Top Spud |
| Vandal resistant | Yes | Power source | Hardwired AC |
Certifications & Standards
| ADA | WaterSense |
