Description

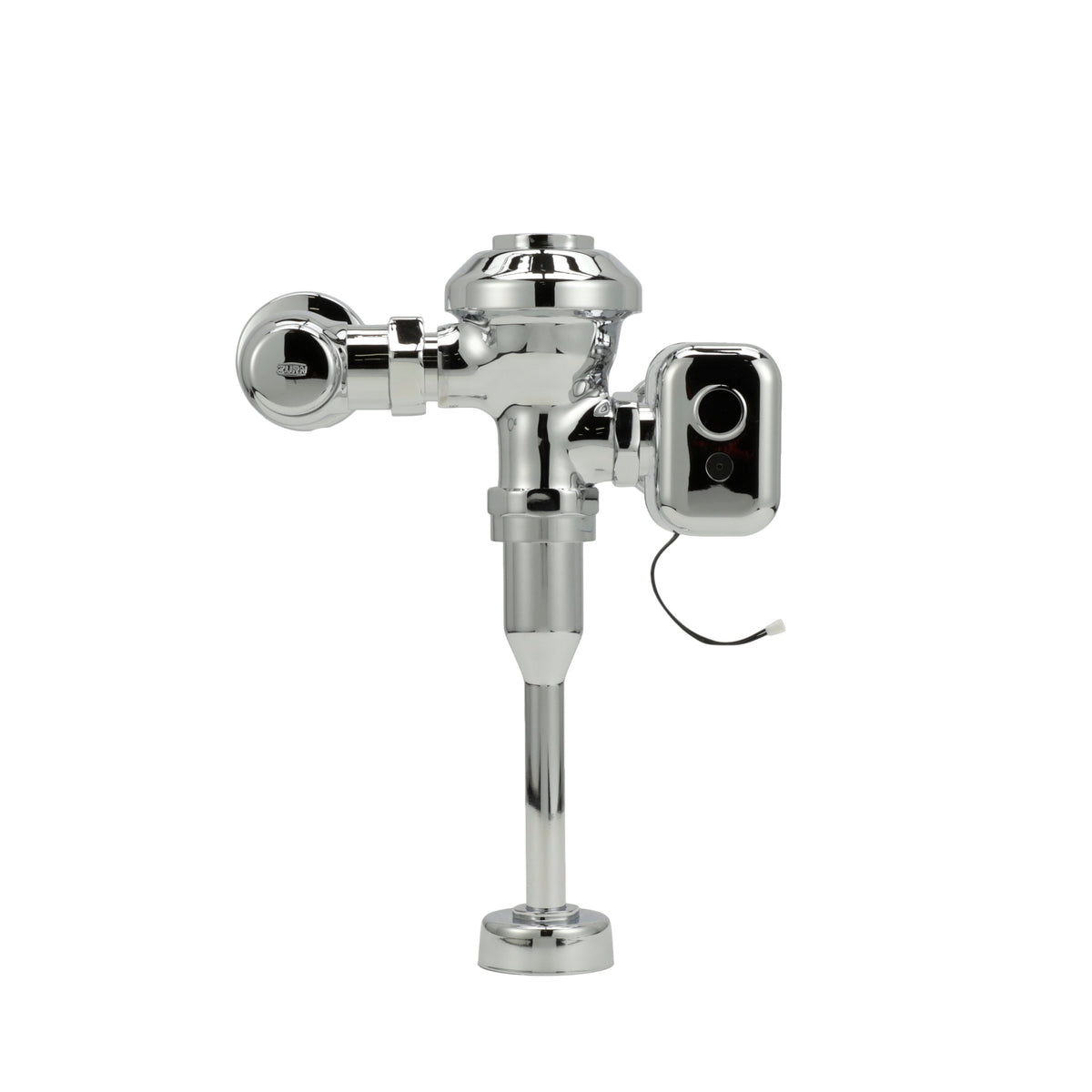

The Zurn ZEMS6003AV-IS-EWS is a sensor-operated flush valve for an urinal. It delivers 0.5 gallons per flush. It features a brass body and a aquavantage tpe diaphragm seat.
Although products with certain combinations of options and features will meet or comply with these standards and/or certifications, not every combination of options and features will result in such compliance. If you have any questions about your particular product, please contact our Customer Care Dept. at 1-855-ONE-ZURN (United States) or 1-877-892-5216 (Canada) for confirmation.
Features
- Clog-resistant triple filter diaphragm
- Chemical resistant gaskets and seals for extended service life with lower maintenance costs
- Low voltage, integrated sensor, and side-mounted motor operator for easy installation and usage
- 3-year limited warranty
Common Questions
- How much water does this use per flush?
- 0.5 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.
- How is the sensor powered?
- Zurn's copy for this exact model does not state a power source in the data we hold.
- What fixture is this for?
- A urinal, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.
- What rough-in does this need?
- 11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.
- How does this connect to the fixture?
- A Top Spud connection, per Zurn's own spec for this model.
Specifications
- Type: Exposed Flush Valve for 3/4" Urinals
- Outlet Size: 3/4"
- Body Material: Brass
- Diaphragm Material: AquaVantage TPE Diaphragm
- Operation: Sensor
- MPN: ZEMS6003AV-IS-EWS
- Certifications: ADA, WaterSense, ASSE-1037
- Fixture Served: Urinal
- Body Style: Exposed
- Spud Connection: Top Spud
- Rough-In (in): 11-1/2"
- Volume per Flush (gal): 0.5
- Backflow Device: Vacuum Breaker
- Mount Type: Wall-Mount
- Finish: Polished Chrome
- Vandal Resistant: Yes
Dimensions
| Outlet Size | 3/4" | — | — |
Details
| Series | ZEMS6003AV-IS-EWS | Device Type | Exposed Flush Valve for 3/4" Urinals |
| Body Material | Brass | Seat Material | AquaVantage TPE Diaphragm |
| Operation | Sensor | Fixture Served | Urinal |
| Backflow device | Vacuum Breaker | Coating | Polished Chrome |
| Cycle volume gal | 0.5 gal | Mount type | Wall-Mount |
| Rough in in | 11-1/2" | Spud connection | Top Spud |
| Vandal resistant | Yes | — | — |
Certifications & Standards
| ADA | WaterSense |
| ASSE-1037 | — |
Compare with similar products
| Fixture Served | Urinal
| Urinal
| Urinal
| Urinal
|
| Series | ZEMS6003AV-IS-EWS
| SLOAN 8186
| ZEMS6003AV-ULF-IS
| ZEMS6003AV-WS1-IS
|
| Spec Sheet | ||||
| Install Sheet | ||||
| Device Type | Exposed Flush Valve for 3/4" Urinals
| Flushometer
| Exposed Flush Valve for 3/4" Urinals
| Exposed Flush Valve for 3/4" Urinals
|
| Outlet Size | 3/4"
| 3/4"
| 3/4"
| 3/4"
|
| Body Material | Brass
| Semi-Red Brass
| Brass
| Brass
|
| Seat Material | AquaVantage TPE Diaphragm
| High-Chloramine-Resistant PERMEX Diaphragm
| AquaVantage TPE Diaphragm
| AquaVantage TPE Diaphragm
|
| Operation | Sensor
| Sensor
| Sensor
| Sensor
|
| Certifications | ADA, WaterSense, ASSE-1037
| ADA, Buy American Act, BABA, IAPMO, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
| ADA, WaterSense, ASSE-1037
|
