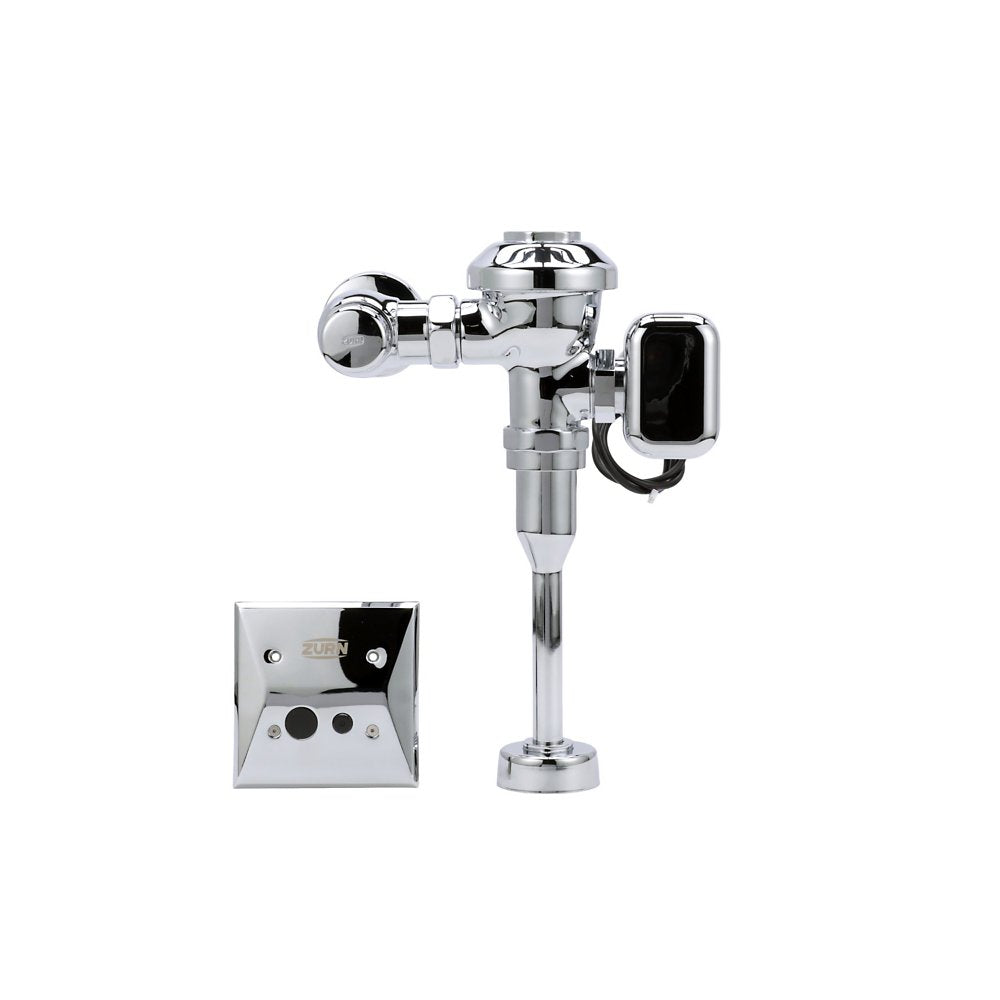

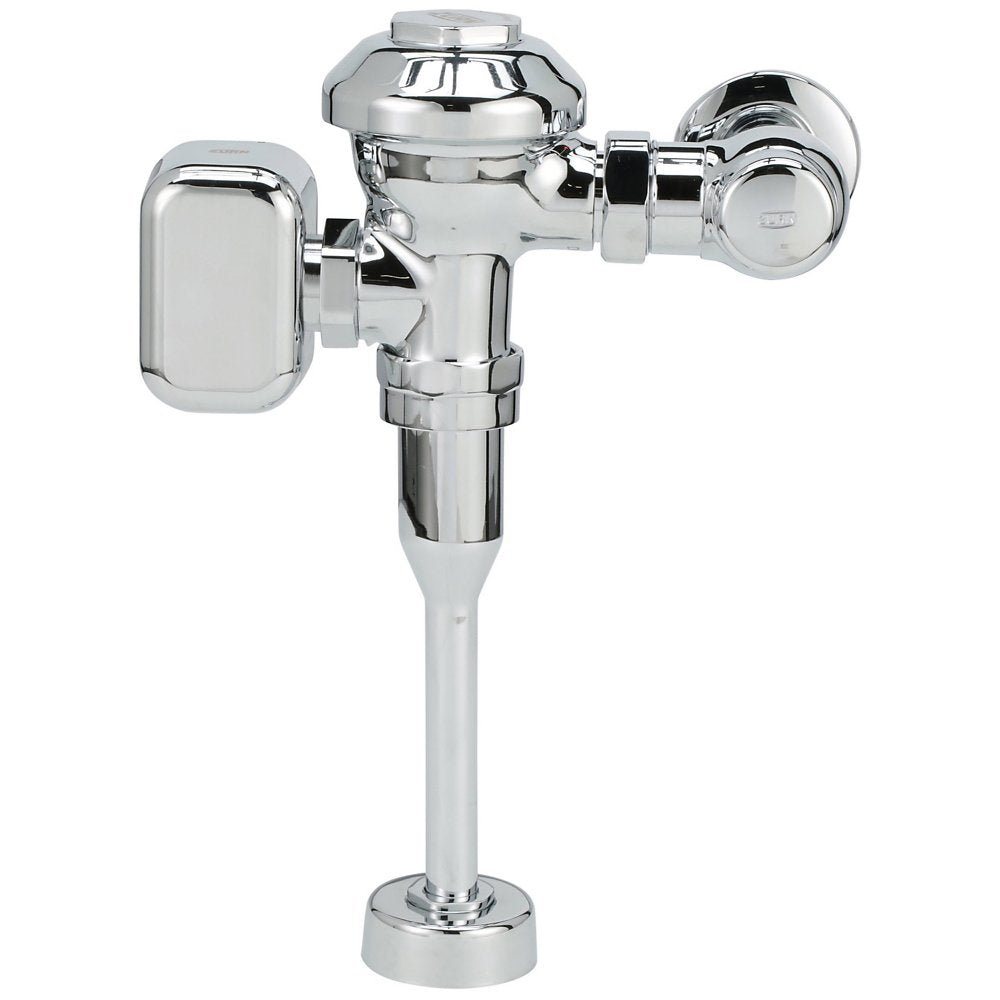

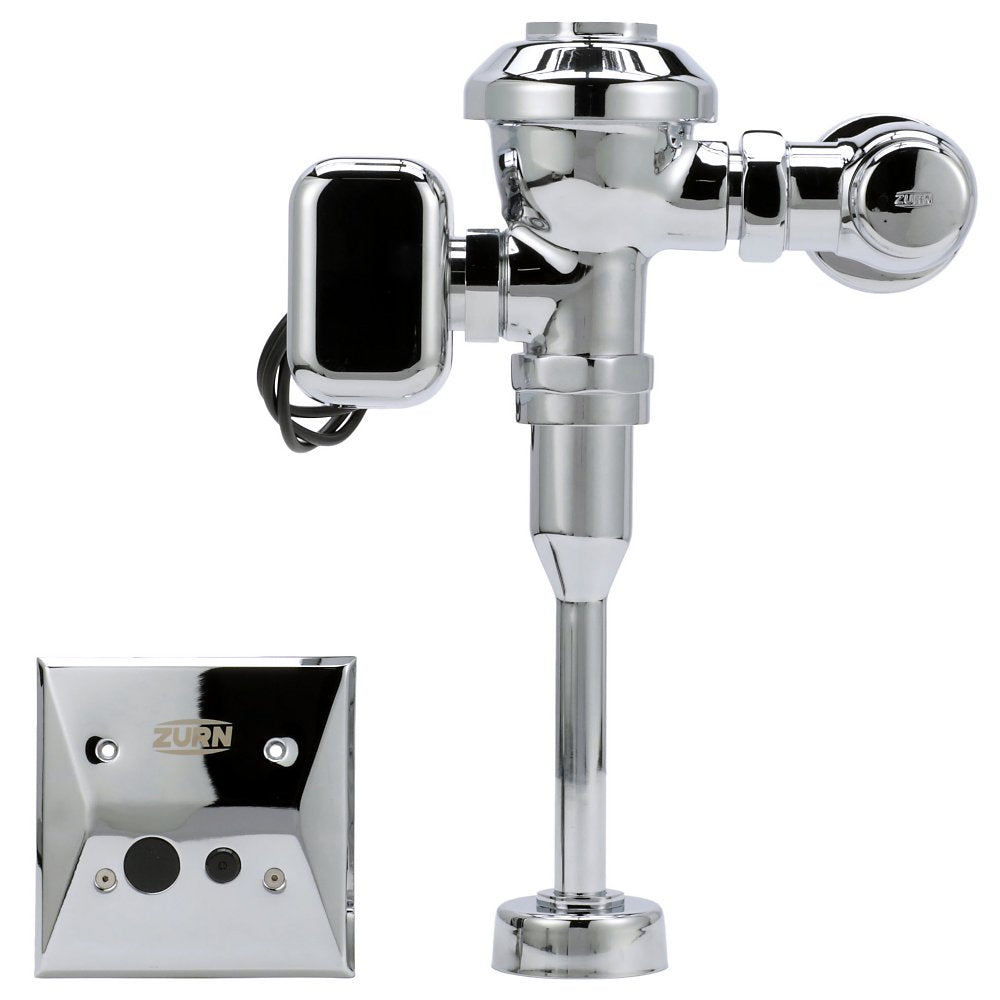

Zurn ZEMS6003AV-EWS.0004 AquaSense® AV Hardwired Exposed Low Consumption Sensor Flush Valve for Urinals

The Zurn ZEMS6003AV-EWS.0004 is a sensor-operated flush valve for an urinal. It delivers 0.5 gallons per flush. It features a aquavantage tpe diaphragm seat.

Although products with certain combinations of options and features will meet or comply with these standards and/or certifications, not every combination of options and features will result in such compliance. If you have any questions about your particular product, please contact our Customer Care Dept. at 1-855-ONE-ZURN (United States) or 1-877-892-5216 (Canada) for confirmation.

Features

• Clog-resistant triple filter diaphragm
• Chemical resistant gaskets and seals for extended service life with lower maintenance costs
• Low voltage, hardwired in wall sensor, and override button with side mount motor operator
• 3-year limited warranty

Common Questions

How much water does this use per flush?

0.5 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.

How is the sensor powered?

Hardwired 120 VAC -- plan for an electrician to run power to the fixture; no battery to replace.

What fixture is this for?

A urinal, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.

What rough-in does this need?

11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.

Specifications

• Type: AquaSense® AV Hardwired Exposed Low Consumption Sensor Flush Valve for Urinals
• Outlet Size: 3/4"
• Diaphragm Material: AquaVantage TPE Diaphragm
• Operation: Sensor
• MPN: ZEMS6003AV-EWS.0004
• Fixture Served: Urinal
• Body Style: Exposed
• Rough-In (in): 11-1/2"
• Volume per Flush (gal): 0.5
• Mount Type: Wall-Mount
• Power Source: Hardwired AC
