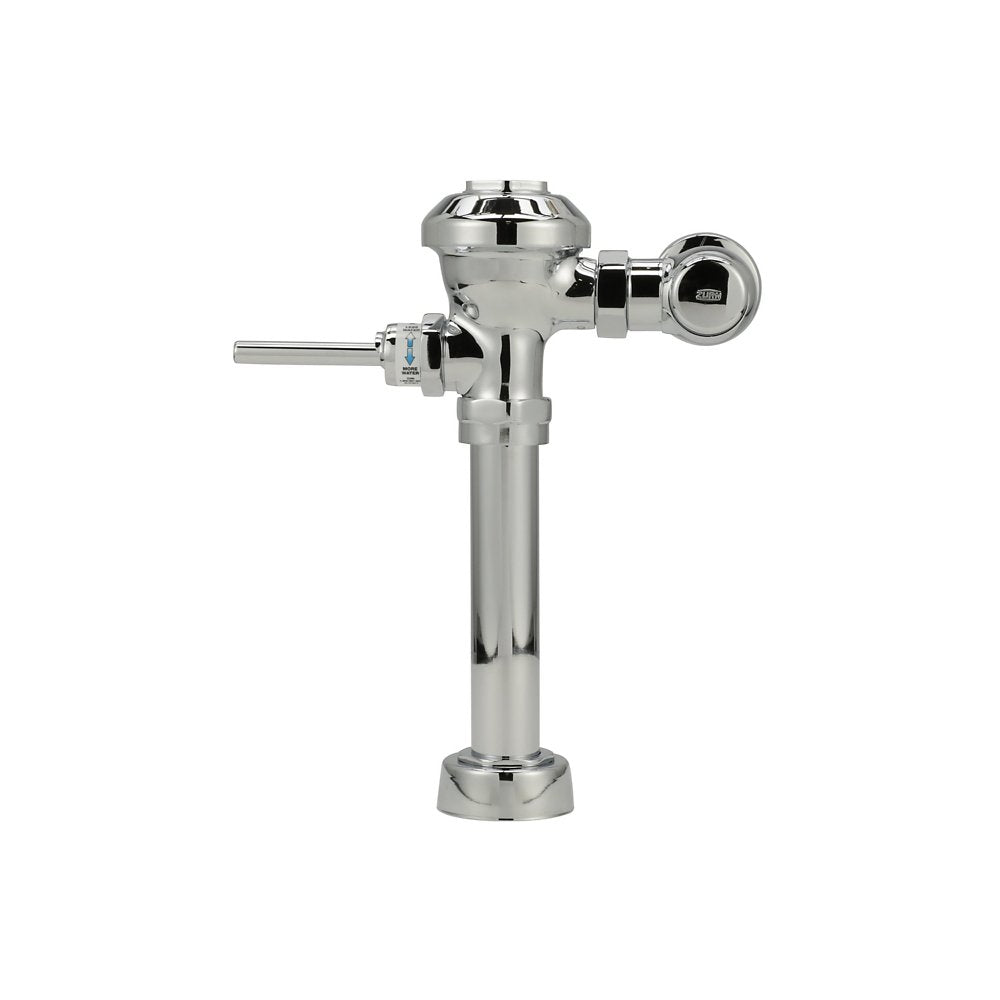

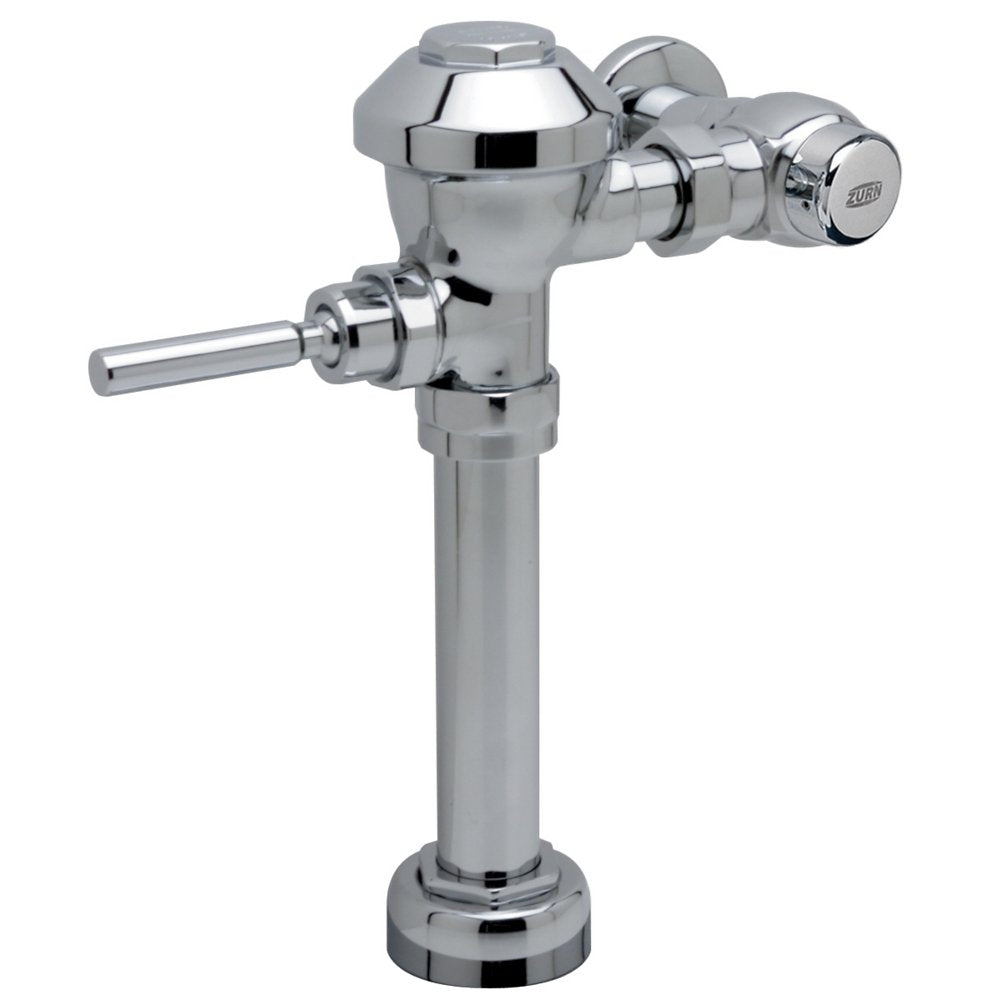

Zurn ZEMS6003-WS1-YB-YC AquaVantage® ‘AV’ Exposed Closet Flush Valve

The Zurn ZEMS6003-WS1-YB-YC is a sensor-operated flush valve for an urinal. It delivers 1.0 gallons per flush. It features a aquaflush filtered diaphragm seat.

Engineered for performance, Zurn's AquaVantage® Exposed Manual Diaphragm Flush Valves provide consistent and reliable water closet operation. They feature a streamlined design while providing high-level performance, unsurpassed water conservation, and long-lasting savings. Each flush valve contains a quiet chemical and clog-resistant GO BLUE® triple-filter diaphragm, reducing maintenance expenses and extending their lifespan. The Z6000AV is available with flush rates ranging from a 3.5 gpf full flush to a maximum water-conserving 1.1 gpf. It even offers a dual-flush option. AquaVantage flush valves include a vandal-resistant control stop cover, a high-pressure vacuum breaker, a cast wall flange with set screw, and an ADA-compliant no-leak handle. Their advanced features make this line a leading solution for any commercial retrofit or new construction project.

Features

• Clog-resistant triple filter diaphragm

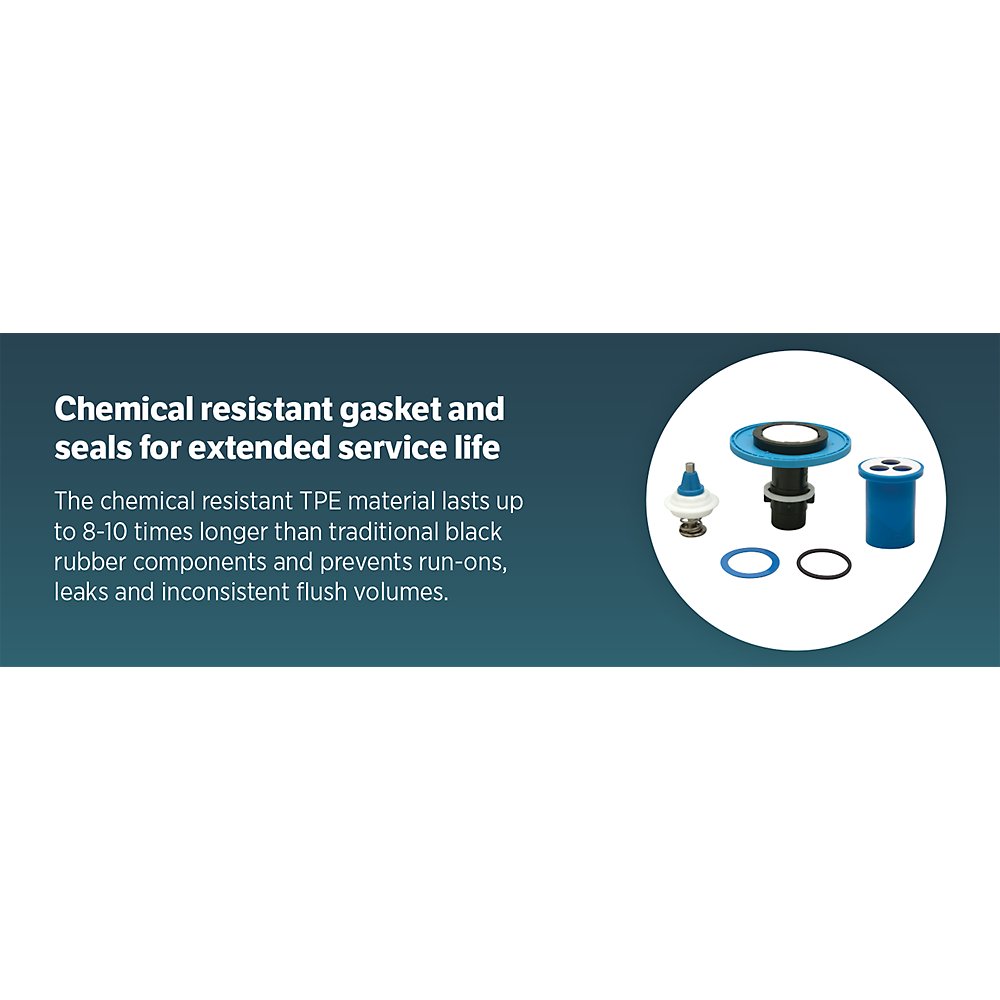

• Chemical resistant gaskets and seals for extended service life with lower maintenance costs
• Manual ADA compliant handle with no-leak seal technology
• 3-year limited warranty

Common Questions

How much water does this use per flush?

1.0 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.

How is the sensor powered?

Zurn's copy for this exact model does not state a power source in the data we hold.

What fixture is this for?

A urinal, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.

What rough-in does this need?

11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.

Specifications

• Type: AquaVantage® ‘AV’ Exposed Closet Flush Valve
• Outlet Size: 3/4"
• Diaphragm Material: AquaFlush Filtered Diaphragm
• Operation: Sensor
• MPN: ZEMS6003-WS1-YB-YC
• Certifications: ADA, WaterSense
• Fixture Served: Urinal
• Body Style: Exposed
• Rough-In (in): 11-1/2"
• Volume per Flush (gal): 1.0
• Backflow Device: Vacuum Breaker
• Mount Type: Wall-Mount
• Finish: Polished Chrome
• Vandal Resistant: Yes
