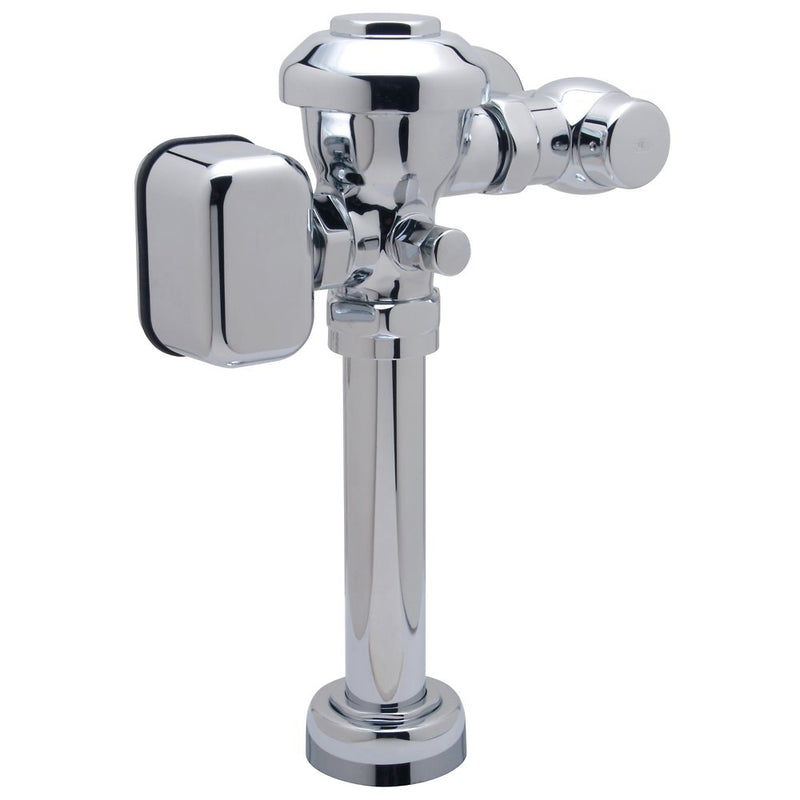

Zurn ZEMS6000AV-WS1-MOB Hardwired Automatic Sensor Flush Valve for Water Closets, Brass

Zurn AquaVantage AV Exposed Hardwired Sensor Diaphragm Flush Valve with 1.6 GPF, 11-1/2" Rough-In, 1-1/2" Top Spud, Manual Override Button, and In-Wall Sensor in Chrome ZEMS6000AV-WS1-MOB

Roll over image to zoom in

Zurn ZEMS6000AV-WS1-MOB Hardwired Automatic Sensor Flush Valve for Water Closets, Brass

Name: Zurn ZEMS6000AV-WS1-MOB Hardwired Automatic Sensor Flush Valve for Water Closets, Brass
Brand: Zurn
SKU: ZEMS6000AV-WS1-MOB
Price: 685.22 USD
Availability: InStock

Save $88.51

ZurnSKU: ZEMS6000AV-WS1-MOB

Call an expert

713-224-1643

Chat Call

Questions? Call (713) 224-1643

The Zurn ZEMS6000AV-WS1-MOB is a sensor-operated flush valve for a water closet. It delivers 1.6 gallons per flush. It features a brass body and a aquavantage tpe diaphragm seat.

Although products with certain combinations of options and features will meet or comply with these standards and/or certifications, not every combination of options and features will result in such compliance. If you have any questions about your particular product, please contact our Customer Care Dept. at 1-855-ONE-ZURN (United States) or 1-877-892-5216 (Canada) for confirmation.

Features

Clog-resistant triple filter diaphragm
Chemical resistant gaskets and seals for extended service life with lower maintenance costs
Low voltage, hardwired in wall sensor, and override button with side mount motor operator
3-year limited warranty

Common Questions

How much water does this use per flush?: 1.6 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.
How is the sensor powered?: Hardwired 120 VAC -- plan for an electrician to run power to the fixture; no battery to replace.
What fixture is this for?: A water closet, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.
What rough-in does this need?: 11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.
How does this connect to the fixture?: A Top Spud connection, per Zurn's own spec for this model.

Specifications

Type: Hardwired Automatic Sensor Flush Valve for Water Closets
Outlet Size: 1-1/2"
Body Material: Brass
Diaphragm Material: AquaVantage TPE Diaphragm
Operation: Sensor
MPN: ZEMS6000AV-WS1-MOB
Certifications: ADA, WaterSense, ASSE-1037
Fixture Served: Water Closet
Body Style: Exposed
Spud Connection: Top Spud
Rough-In (in): 11-1/2"
Volume per Flush (gal): 1.6
Backflow Device: Vacuum Breaker
Mount Type: Wall-Mount
Finish: Polished Chrome
Vandal Resistant: Yes
Power Source: Hardwired AC
