Description

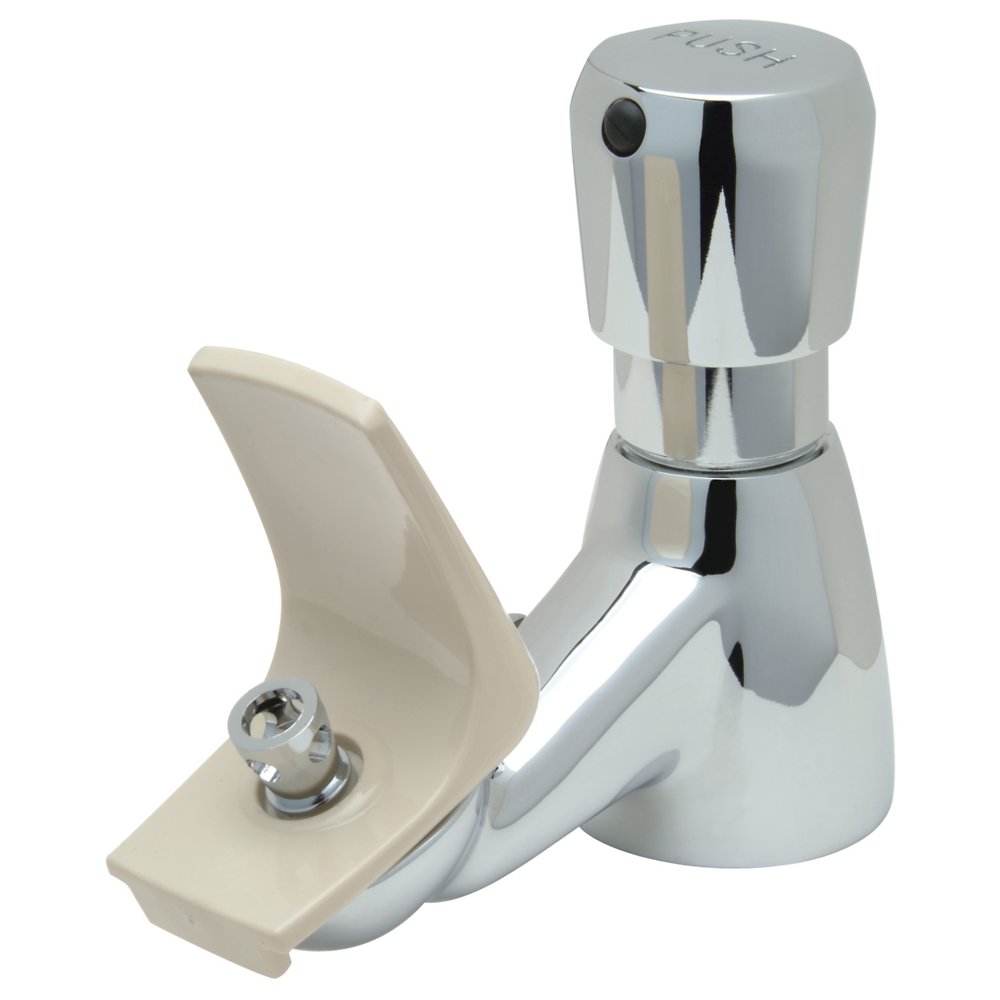

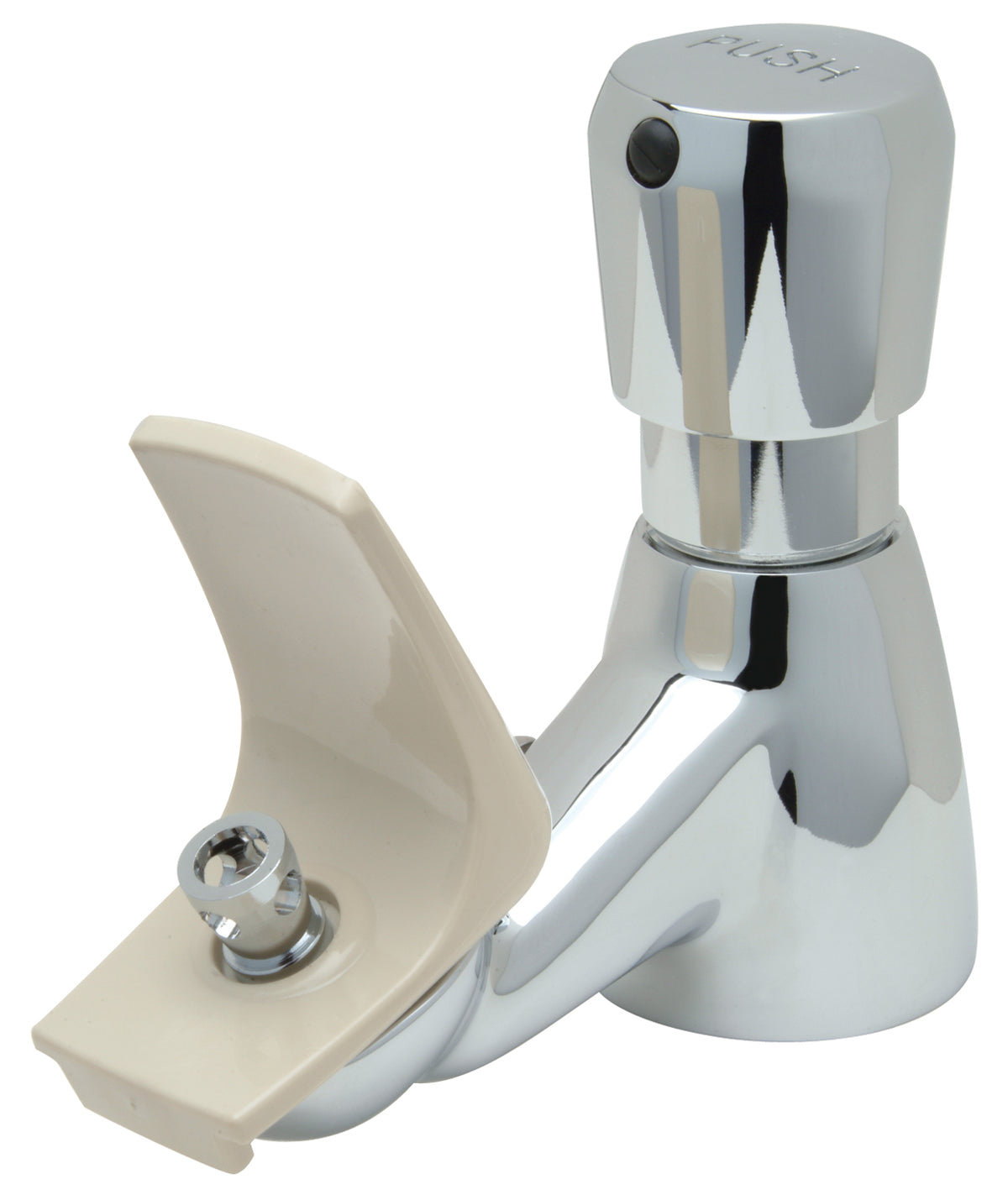

The Zurn Z83600-XL is a lead-free polished chrome plated cast brass self-closing bubbler. It features a brass body. This model is certified lead-free for potable-water installations.
Although products with certain combinations of options and features will meet or comply with these standards and/or certifications, not every combination of options and features will result in such compliance. If you have any questions about your particular product, please contact our Customer Care Dept. at 1-855-ONE-ZURN (United States) or 1-877-892-5216 (Canada) for confirmation.
Features
- Polymer metering cartridge sleeve for long life reliability
- Angled stream nozzle with volume control
- Cast metal push handle and flexible mouth guard with Biosafe ZurnSHIELD™ technology
- 3-year limited warranty
Common Questions
- Does this faucet shut off on its own?
- Yes, it is a self-closing metering faucet with an adjustable cycle time.
Specifications
- Type: Polished Chrome Plated Cast Brass Self-Closing Bubbler
- Connection: NPSM
- Body Material: Brass
- Operation: Metering (Self-Closing)
- MPN: Z83600-XL
- Certifications: NSF-372, ADA
- Lead-Free: Yes
- Body Style: Exposed
- Mount Type: Deck-Mount
- Coating / Finish: Polished Chrome
- Vandal Resistant: No
Dimensions
| End Connection | NPSM | — | — |
Details
| Series | Z83600-XL | Device Type | Polished Chrome Plated Cast Brass Self-Closing Bubbler |
| Lead Free | Yes | Body Material | Brass |
| Operation | Metering (Self-Closing) | Coating | Polished Chrome |
| Mount type | Deck-Mount | Vandal resistant | No |
Certifications & Standards
| NSF-372 | ADA |
Compare with similar products
| Series | Z83600-XL
| 897
| 786
| 50
| B-1230
| 895
|
| Warranty | — | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| One Year (Limited)
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | ||||||
| Install Sheet | — | — | — | — | ||
| Device Type | Polished Chrome Plated Cast Brass Self-Closing Bubbler
| Wall-mounted manual faucet with 8" centers
| Deck-mounted manual faucet with adjustable centers
| Deck-mounted manual faucet, single-hole mounting
| — | Deck-mounted manual faucet with 4" centers
|
| Size Nominal | — | 1/2"
| 1/2"
| 3/8"
| — | 1/2"
|
| Lead Free | Yes | — | Yes | Yes | Yes | Yes |
| End Connection | NPSM
| NPT
| NPSM
| Compression
| MNPT
| NPSM
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Max Temp °F | — | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | NSF-372, ADA
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1001
| ASME A112.18.1/CSA B125.1, ADA, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, NSF-61, WaterSense
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA
| ASME A112.18.1/CSA B125.1, ADA, NSF-61, WaterSense
|
| Pack Qty | — | 1
| 1
| 1
| — | 1
|
| Min Temp °F | — | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
