Specifications
Description

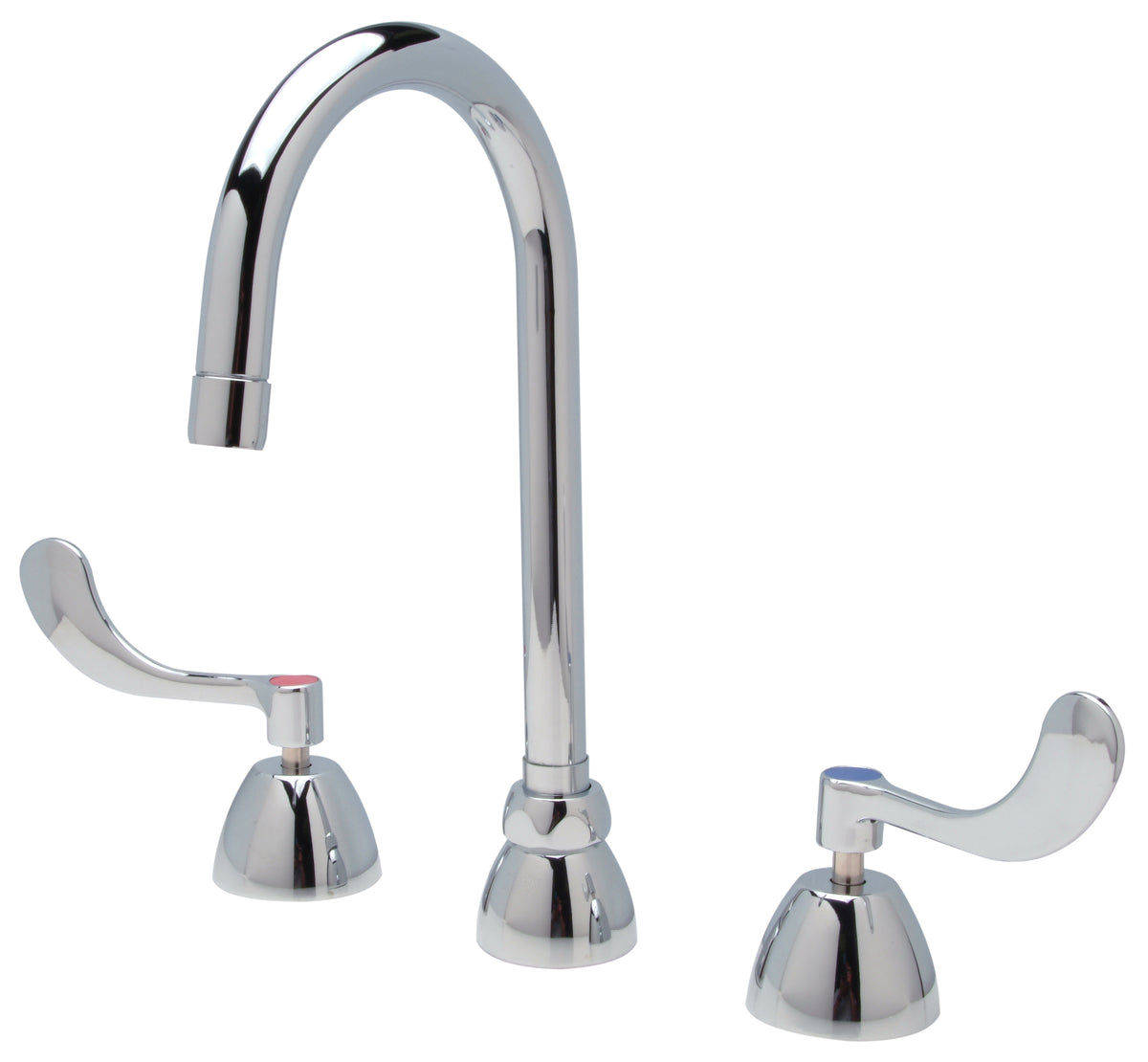

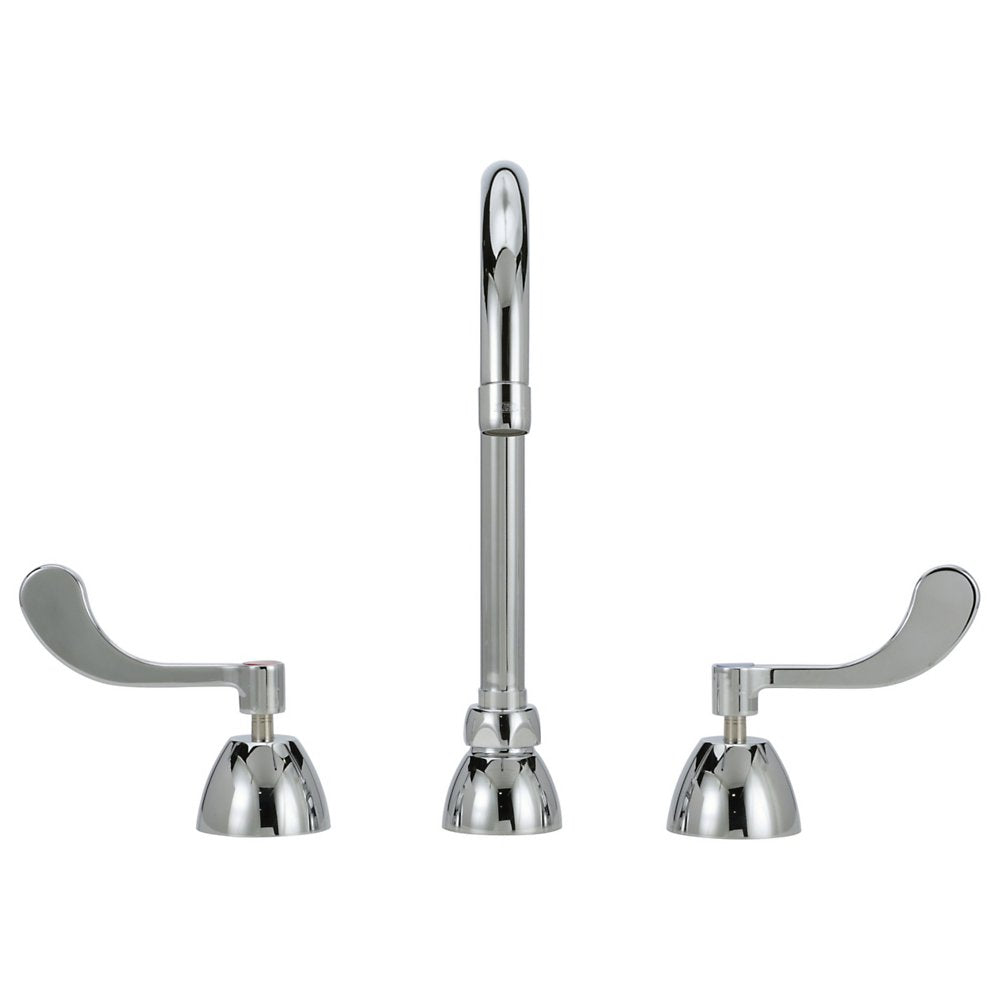

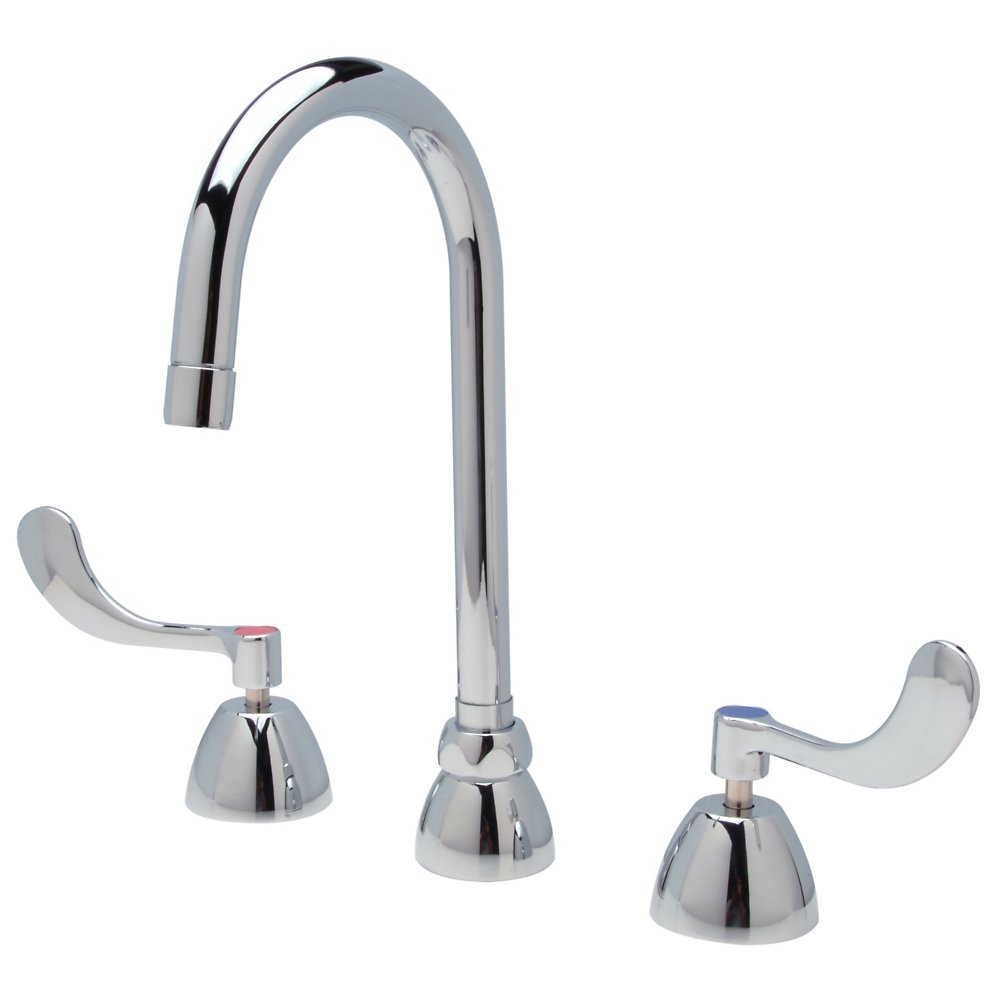

The Zurn Z831B4-XL is a lead-free aquaspec® widespread faucet with 5-3/8" centerline gooseneck and 4" wrist blade handles. It delivers 2.2 GPM. It features a brass body. This model is certified lead-free for potable-water installations.
Zurn AquaSpec® faucets provide the highest level of durability for commercial applications with cast-brass bodies and lifetime warrantied ceramic disc cartridges.
Features
- Widespread gooseneck faucet in polished chrome-plated finish has a sleek and clean appearance
- 1.5 GPM vandal-resistant, pressure-compensating laminar flow outlet conserves water and money
- Quarter-turn ceramic disc cartridges last up to a million cycles
- Lead-free cast brass body provides durability while complying with the Safe Water Drinking Act
- Adjustable centers allow for installation from 6" to 20" apart and up to 1-1/8" thick
- Interconnecting copper supply tubes for 8" in-line centers
- ADA compliant, vandal-resistant, and color-coded 4" wrist blade handles
- 3-year limited warranty
- Limited lifetime warranty on ceramic disc cartridge
- Chrome-plated cast brass construction
Common Questions
- What is the flow rate?
- 2.2 GPM as shipped.
- Is it vandal-resistant?
- Yes, the handles and/or aerator use tamper-resistant hardware.
Specifications
- Type: AquaSpec® widespread faucet with 5-3/8" centerline gooseneck and 4" wrist blade handles
- Connection: NPSM
- Body Material: Brass
- MPN: Z831B4-XL
- Certifications: NSF-61, NSF-372, ASME A112.18.1/CSA B125.1, ADA
- Lead-Free: Yes
- Cartridge Type: Ceramic 1/4-Turn
- Centers: 6"-20" Adjustable
- Spout Type: Gooseneck
- Spout Motion: Rigid/Swing
- Outlet Type: Aerator
- Body Style: Exposed
- Mount Type: Deck-Mount
- Handle Style: Wristblade
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 2.2
- Vandal Resistant: Yes
Dimensions
| End Connection | NPSM | — | — |
Details
| Series | Z831B4-XL | Device Type | AquaSpec® widespread faucet with 5-3/8" centerline gooseneck and 4" wrist blade handles |
| Lead Free | Yes | Body Material | Brass |
| Coating | Polished Chrome | Flow rate gpm | 2.2 GPM |
| Mount type | Deck-Mount | Vandal resistant | Yes |
| Cartridge type | Ceramic 1/4-Turn | Outlet type | Aerator |
Certifications & Standards
| NSF-61 | NSF-372 |
| ASME A112.18.1/CSA B125.1 | ADA |
Compare with similar products
| Series | Z831B4-XL
| Z831R4-XL

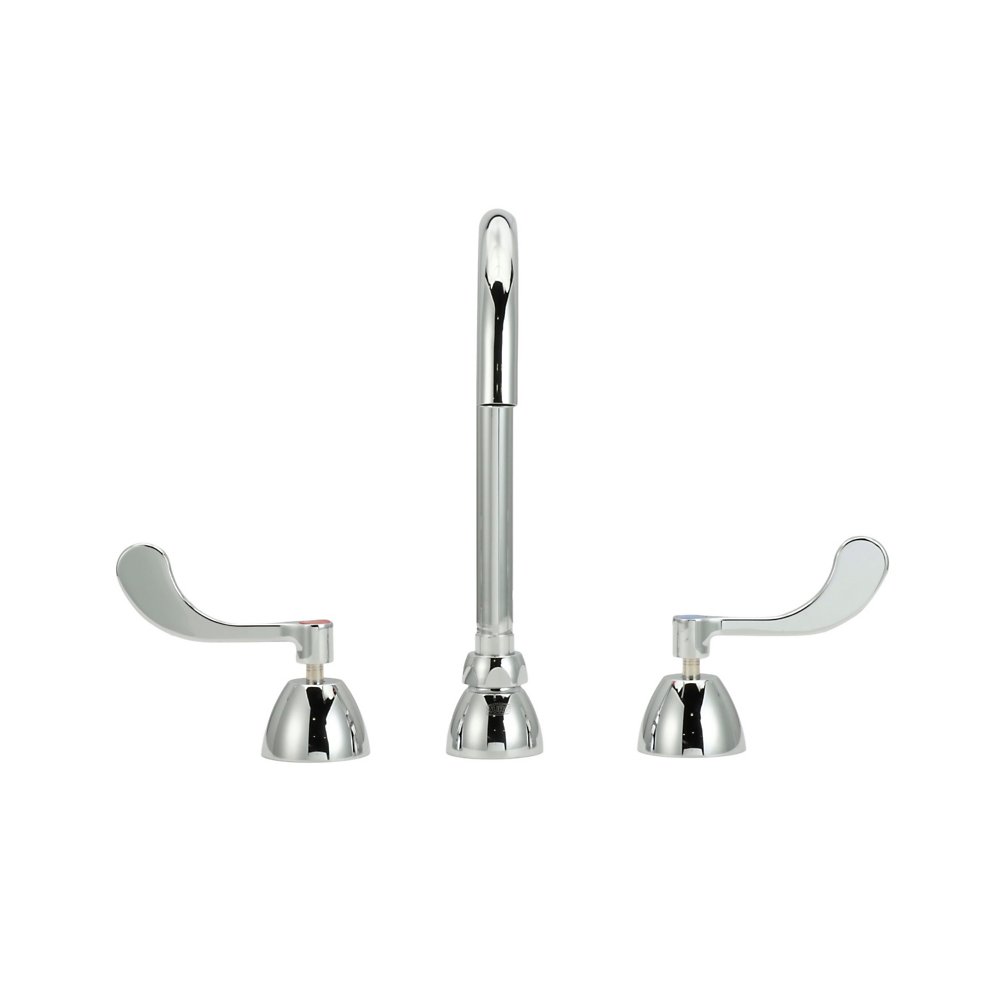

| Z831B4-XL-FC
|
| Spec Sheet | |||
| Install Sheet | |||
| Device Type | AquaSpec® widespread faucet with 5-3/8" centerline gooseneck and 4" wrist blade handles
| Widespread Faucet with 5" cast spout and lever handles
| AquaSpec® widespread faucet with 5-3/8" centerline gooseneck and 4" wrist blade handles
|
| Lead Free | Yes | Yes | Yes |
| End Connection | NPSM
| NPSM
| NPSM
|
| Body Material | Brass
| Brass
| Brass
|
| Certifications | NSF-61, NSF-372, ASME A112.18.1/CSA B125.1, ADA
| NSF-61, NSF-372, ASME A112.18.1/CSA B125.1, ADA
| NSF-61, NSF-372, ASME A112.18.1/CSA B125.1, ADA
|
