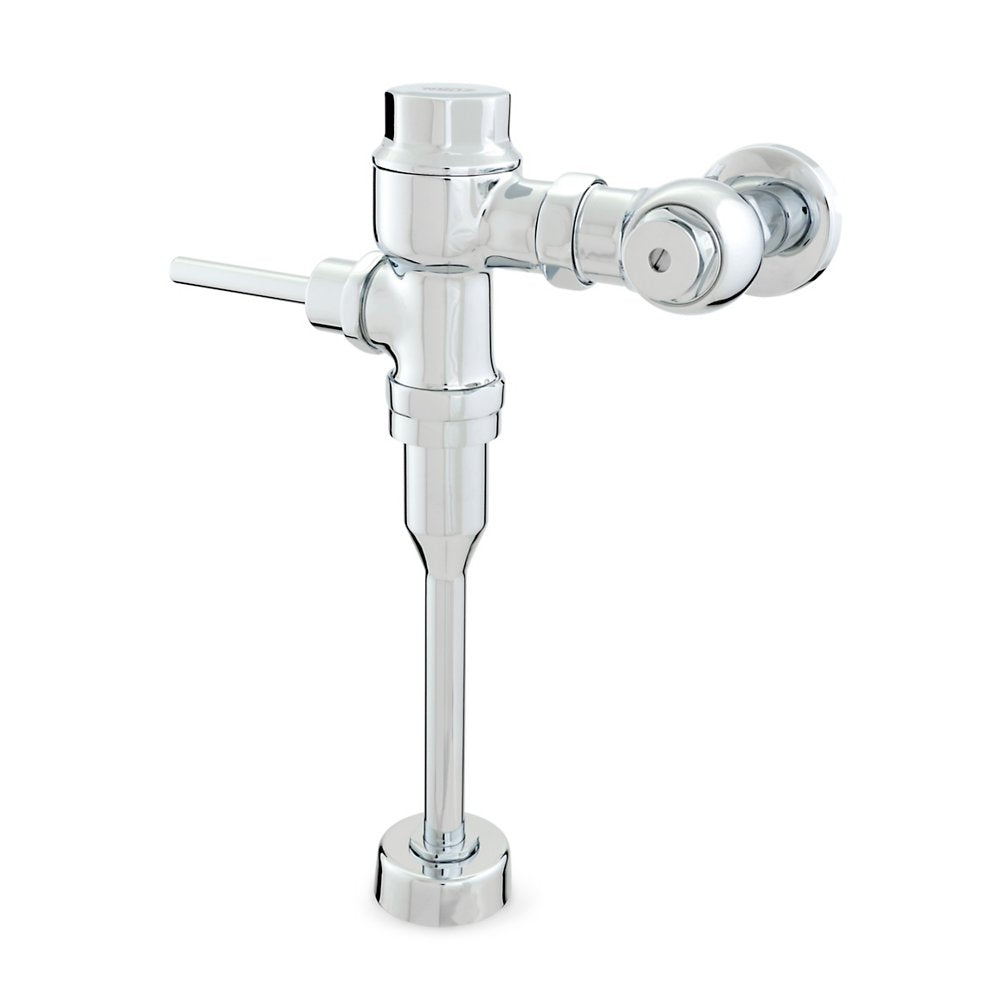

Zurn Z6203-EWS-YB-YC Metroflush® Piston Operated Flush Valve For 3/4" Urinal Valves, Brass

The Zurn Z6203-EWS-YB-YC is a manual piston-type flush valve for an urinal. It delivers 0.5 gallons per flush. It features a brass body.

Although products with certain combinations of options and features will meet or comply with these standards and/or certifications, not every combination of options and features will result in such compliance. If you have any questions about your particular product, please contact our Customer Care Dept. at 1-855-ONE-ZURN (United States) or 1-877-892-5216 (Canada) for confirmation.

Features

• Clog-resistant piston
• Chemical resistant gaskets and seals for extended service life with lower maintenance costs
• Manual ADA compliant handle with no-leak seal technology
• 3-year limited warranty

Common Questions

How much water does this use per flush?

0.5 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.

What fixture is this for?

A urinal, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.

What rough-in does this need?

11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.

How does this connect to the fixture?

A Top Spud connection, per Zurn's own spec for this model.

Specifications

• Type: Metroflush® Piston Operated Flush Valve For 3/4" Urinal Valves
• Outlet Size: 3/4"
• Body Material: Brass
• Operation: Manual
• MPN: Z6203-EWS-YB-YC
• Certifications: ADA, WaterSense, ASSE-1037
• Fixture Served: Urinal
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11-1/2"
• Handle Style: Standard Handle
• Volume per Flush (gal): 0.5
• Backflow Device: Vacuum Breaker
• Mount Type: Wall-Mount
• Vandal Resistant: Yes
