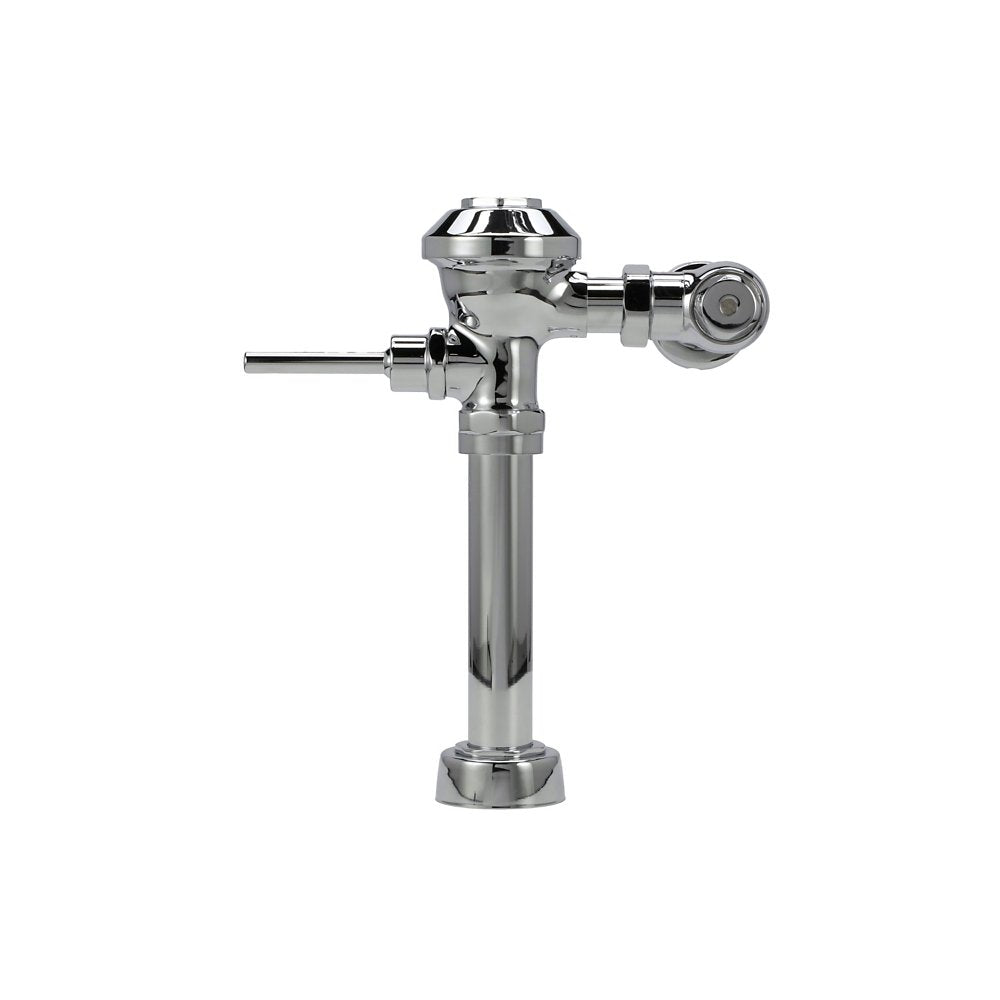

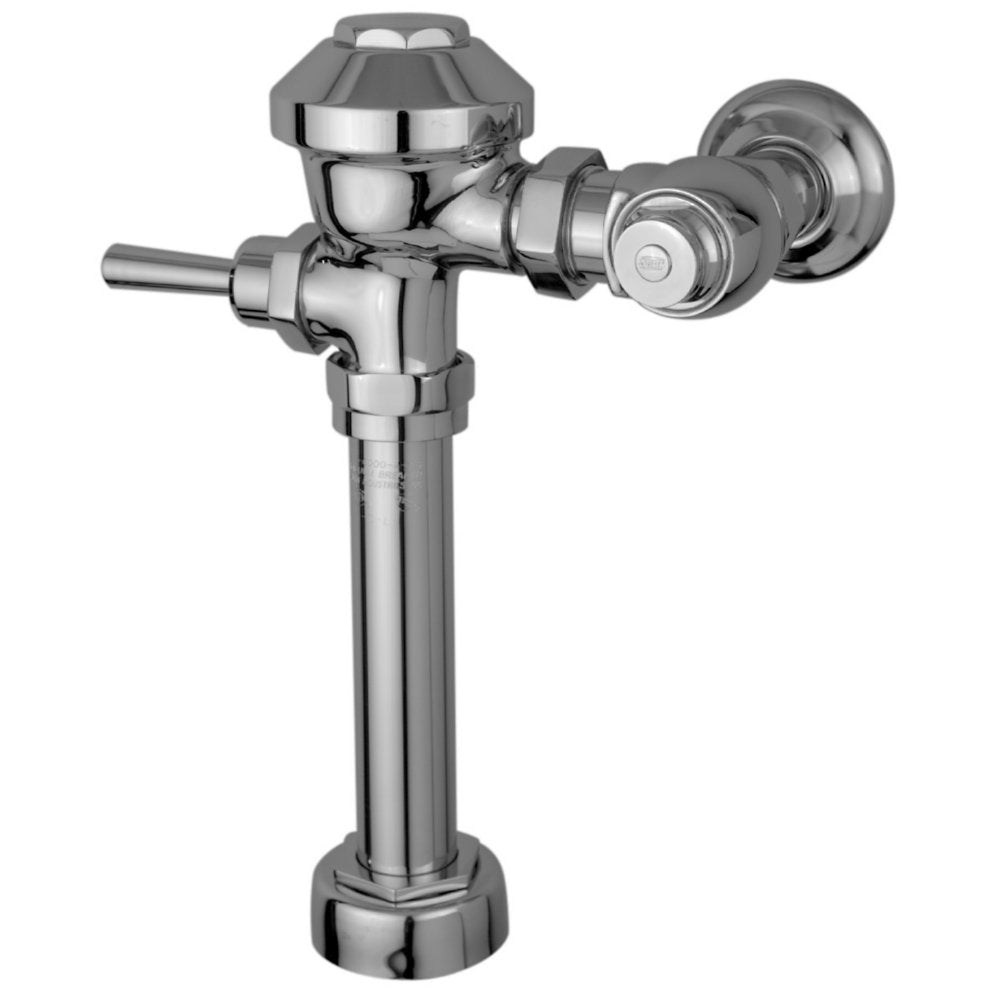

Zurn Z6000-WS1-VC-YB-YC Manual Flush Valve, Z6000 Aquaflush Exposed Closet Flush Valve

The Zurn Z6000-WS1-VC-YB-YC is a manual flush valve for a water closet. It delivers 1.6 gallons per flush. It features a aquaflush filtered diaphragm seat.

Zurn manual flush valves provide a more reliable and sustainable restroom experience. Zurn Aquaflush® exposed quiet diaphragm type flush valve with top spud connection for water closets.

Features

• Clog-resistant linear bypass diaphragm

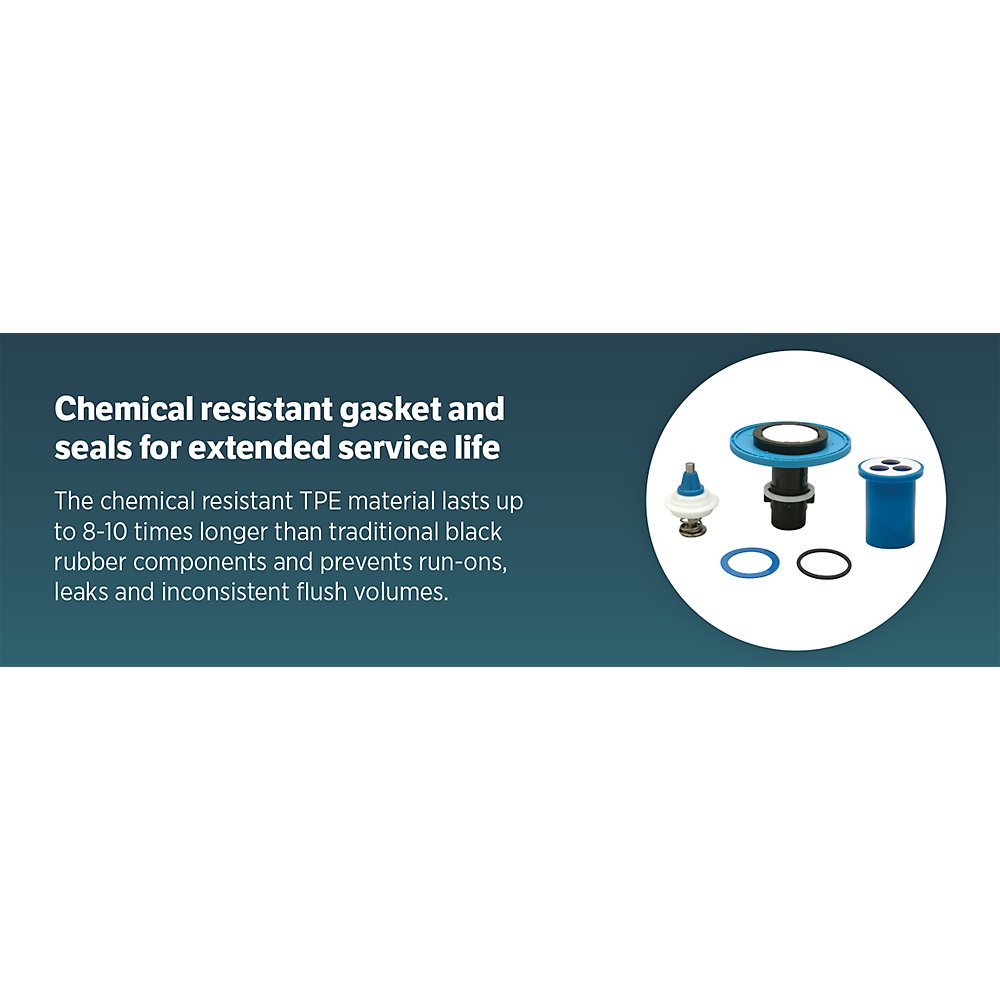

• Chemical resistant gaskets and seals for extended service life with lower maintenance costs
• Quiet operation and soft-close technology that eliminates water hammer
• Polished chrome finish

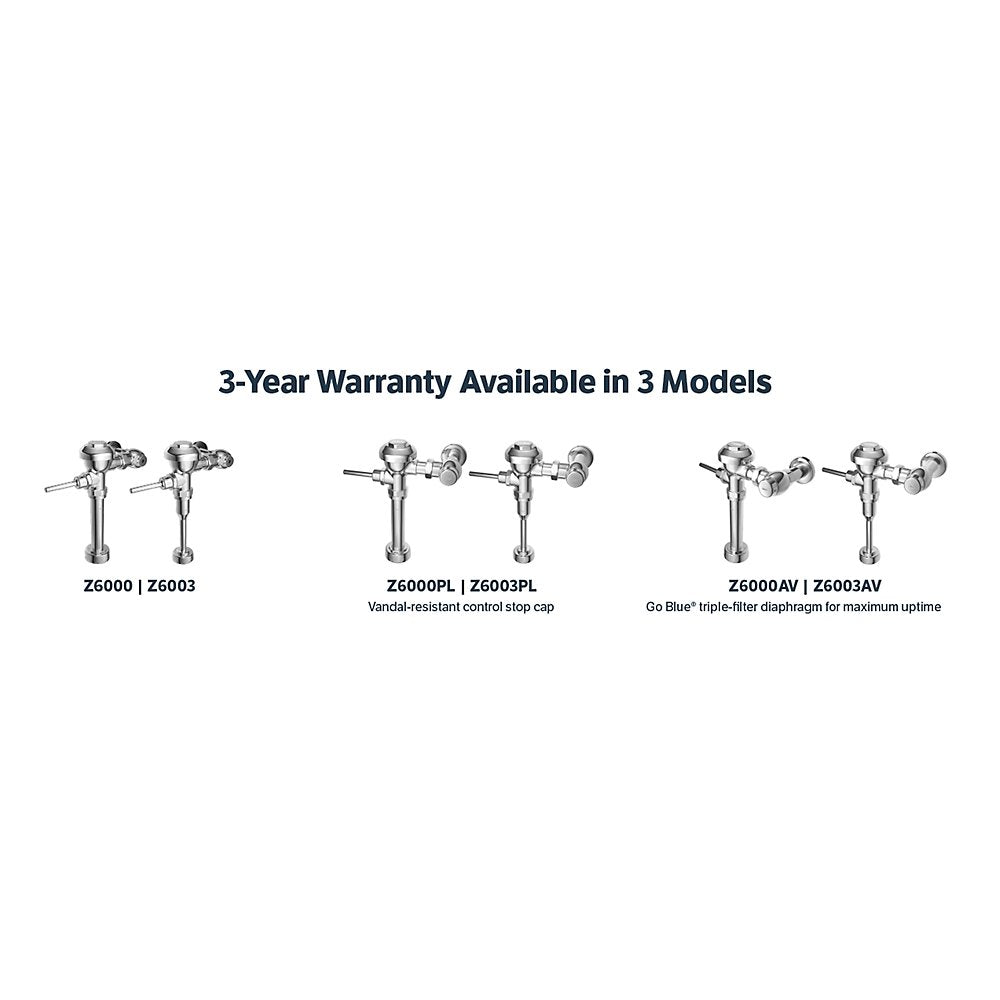

• 3-year warranty
• LEED and WaterSense compliant options
• Low force ADA compliant handle

Common Questions

How much water does this use per flush?

1.6 gallons per flush, per Zurn's own flow-volume rating for this model. This meets the federal EPAct 1.6 gpf (water closet) / 1.0 gpf (urinal) water-conservation ceiling.

What fixture is this for?

A water closet, per Zurn's own product name for this model -- confirm before ordering, since the wrong fixture type is a return, not a preference.

What rough-in does this need?

11-1/2", per Zurn's own valve-height spec for this model. A retrofit must match the existing rough-in of the fixture being replaced.

How does this connect to the fixture?

A Top Spud connection, per Zurn's own spec for this model.

Specifications

• Type: Manual Flush Valve, Z6000 Aquaflush Exposed Closet Flush Valve
• Outlet Size: 1-1/2"
• Diaphragm Material: AquaFlush Filtered Diaphragm
• Operation: Manual
• MPN: Z6000-WS1-VC-YB-YC
• Certifications: ADA, WaterSense, ASSE-1037
• Fixture Served: Water Closet
• Body Style: Exposed
• Spud Connection: Top Spud
• Rough-In (in): 11-1/2"
• Handle Style: Standard Handle
• Volume per Flush (gal): 1.6
• Backflow Device: Vacuum Breaker
• Mount Type: Wall-Mount
• Finish: Polished Chrome
• Vandal Resistant: Yes
