Specifications
Description

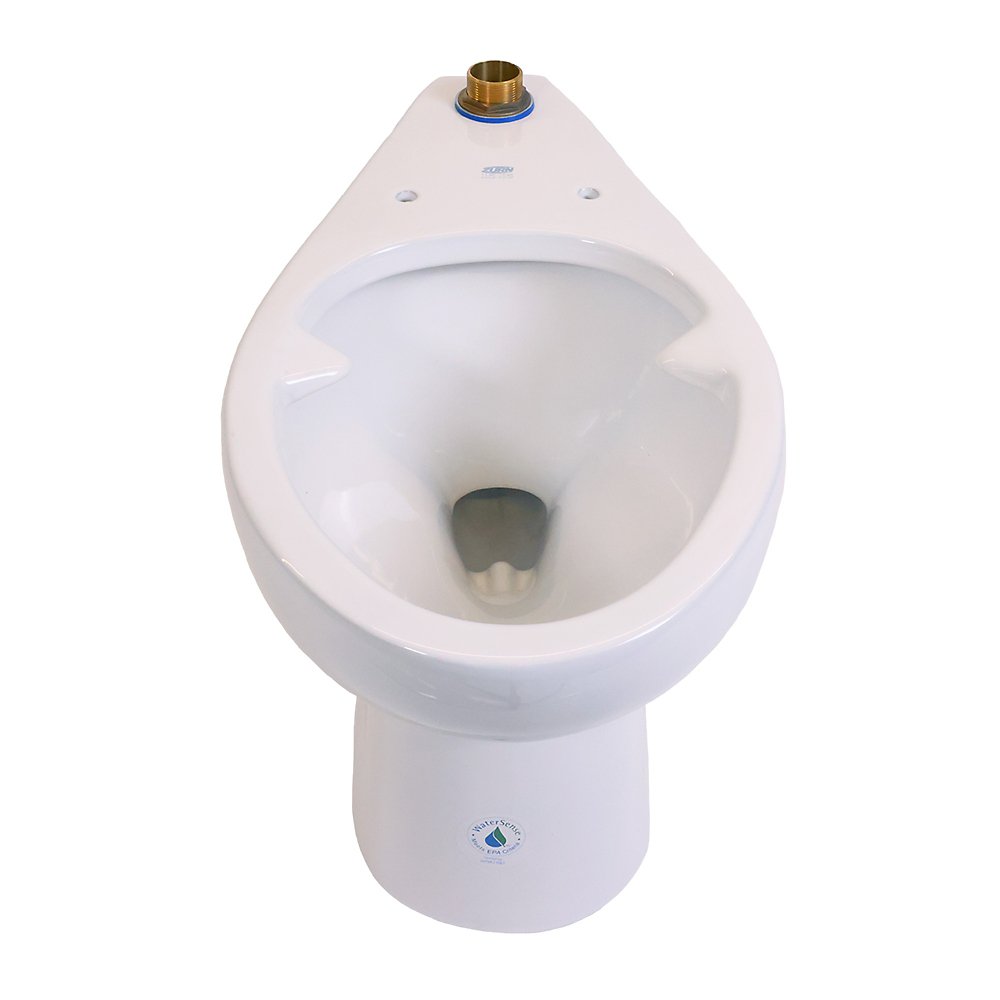

The Zurn Z5666-BWL1 is an ecovantage® floor-mount siphon-jet toilet bowl, ada height with bedpan lugs with siphon jet flushing action. It uses 1.1 GPF. It features a vitreous china body.
Designed to maximize water savings, Zurn EcoVantage 1.1 GPF floor-mount high efficiency toilet systems provide 31% water consumption savings over traditional 1.6 GPF systems. This high efficiency toilet system provides an innovative water saving solution for commercial new construction and retrofit applications.
Features
- 1.1 GPF or greater
- Siphon jet flush action with 2-1/8" fully glazed trapway
- ADA height with elongated rim and bedpan lugs
- 3-year limited warranty
- ZurnSHIELD™ ceramic glaze creates a permanent surface that protects the fixture by inhibiting the growth of stain and odor causing mold, mildew, and bacteria, thus reducing the amount of time, chemicals and water needed to clean the bowl
Common Questions
- What flushing action does this fixture use?
- Siphon Jet flushing action.
- How much water does it use per flush?
- 1.1 gallons per flush (GPF).
- Is this an ADA-height fixture?
- Yes, this is the ADA/comfort-height model.
Specifications
- Type: EcoVantage® Floor-Mount Siphon-Jet Toilet Bowl, ADA Height with bedpan lugs
- Inlet Size: 1-1/2"
- Body Material: Vitreous China
- MPN: Z5666-BWL1
- Certifications: ASME A112.19.2/CSA B45.1, ADA, WaterSense
- Bowl / Flush Action: Siphon Jet
- Trapway (in): 2-1/8"
- Rim Height: ADA Height
- Volume per Cycle (gal): 1.1
- Spud Connection: Top Spud
Dimensions
| Inlet Size | 1-1/2" | — | — |
Details
| Series | Z5666-BWL1 | Device Type | EcoVantage® Floor-Mount Siphon-Jet Toilet Bowl, ADA Height with bedpan lugs |
| Body Material | Vitreous China | Cycle volume gal | 1.1 gal |
| Spud connection | Top Spud | — | — |
Certifications & Standards
| ASME A112.19.2/CSA B45.1 | ADA |
| WaterSense | — |
Compare with similar products
| Series | Z5666-BWL1
| Z5655-BWL1
| Z5645-BWL
| Z5617-BWL
|
| Spec Sheet | ||||
| Install Sheet | — | |||
| Device Type | EcoVantage® Floor-Mount Siphon-Jet Toilet Bowl, ADA Height with bedpan lugs
| EcoVantage® HET Floor-mounted Toilet System
| ADA Floor-mounted Back outlet Flush Valve Toilet
| Back Spud Wall Hung Flush Valve Toilet with ZurnSHIELD™ glaze
|
| Inlet Size | 1-1/2"
| 1-1/2"
| 1-1/2"
| 1-1/2"
|
| Body Material | Vitreous China
| Vitreous China
| Vitreous China
| Vitreous China
|
| Certifications | ASME A112.19.2/CSA B45.1, ADA, WaterSense
| ASME A112.19.2/CSA B45.1, WaterSense
| ASME A112.19.2/CSA B45.1, ADA
| ASME A112.19.2/CSA B45.1, ADA, WaterSense
|
