Specifications
Description

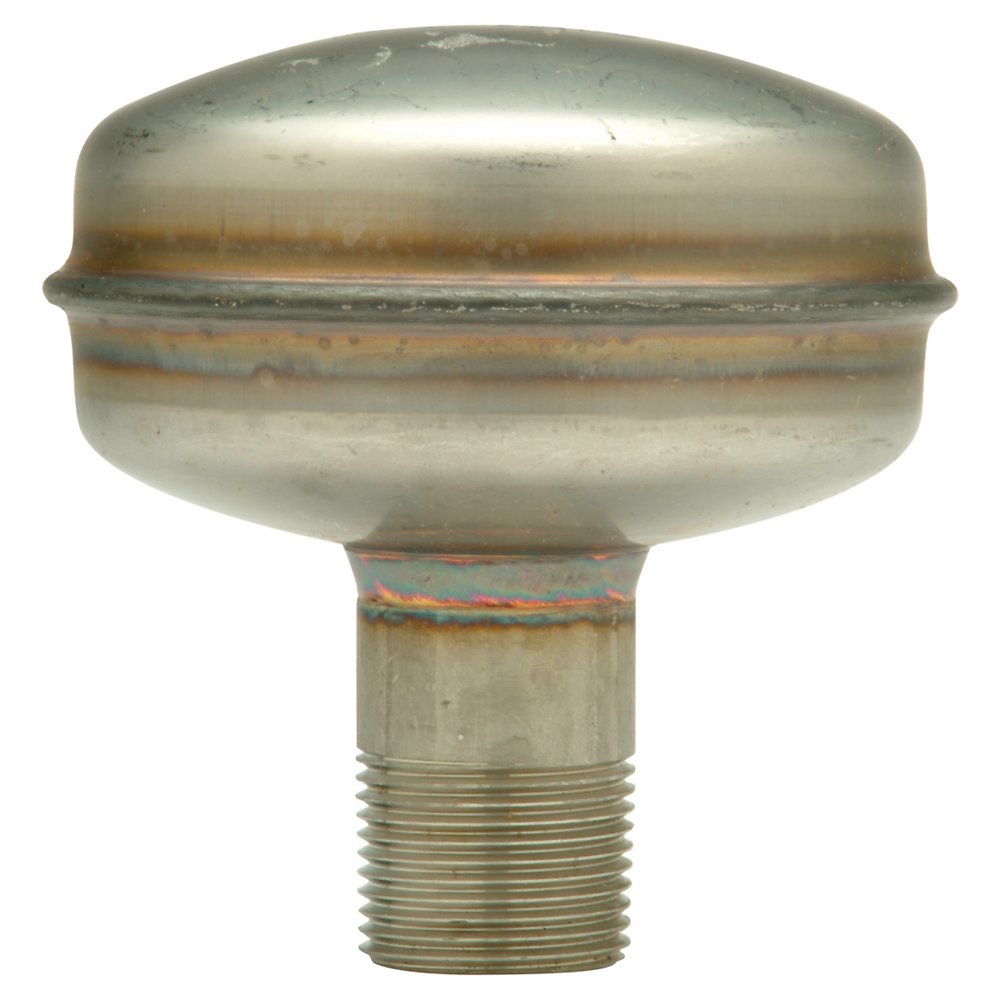

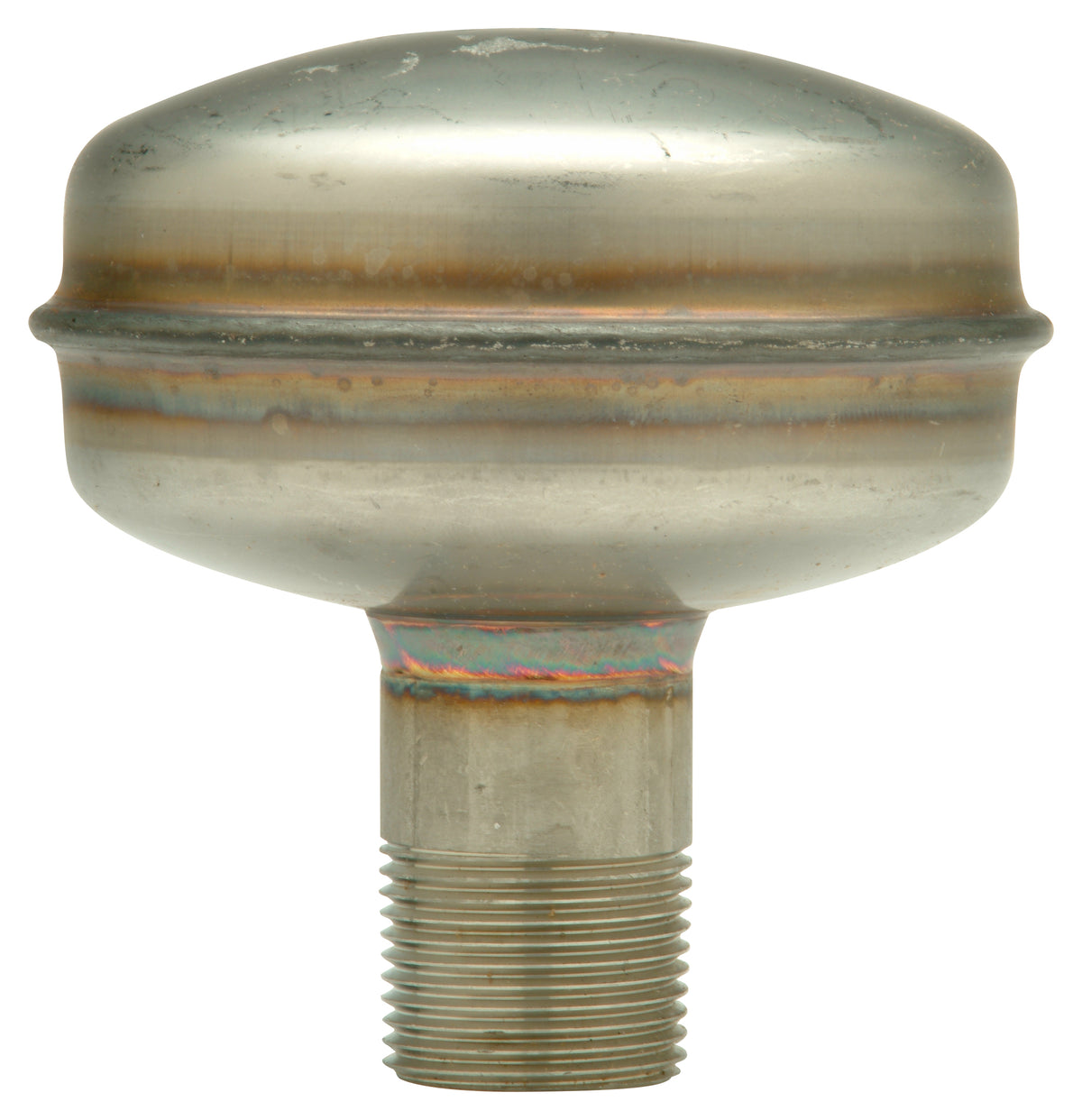

The Zurn Wilkins Z1700-100-OV is a stainless steel bellows water hammer arrestor with NPT connections. It is PDI size A under PDI Standard WH-201, covering 1-11 fixture units. It features a stainless body. Rated to 250 psi and 33°F to 300°F.
The Z1700 Shoktrol Water Hammer Arrestor protects water lines against over-pressure during surges following quick valve closure.
Features
- All 18-8 stainless steel construction
- Hermetically sealed bellows
Common Questions
- What size do I need for my fixtures?
- The Z1700-100-OV is PDI size A under PDI Standard WH-201, rated for 1-11 fixture units. Total the fixture units on the branch you are protecting and pick the letter whose range covers that total; above 11 fixture units, step up to the next letter.
- How does it absorb the pressure spike?
- A nesting stainless steel bellows inside an all-stainless casing compresses to dissipate the kinetic energy of a quick-closing valve.
Specifications
- Type: Shoktrol Water Hammer Arrestor
- Connection: NPT
- Body Material: Stainless
- Max Pressure (psi): 250
- MPN: Z1700-100-OV
- Temperature: 33°F to 300°F
- Certifications: ASSE-1010
- PDI Size (WH-201): A
- Fixture Units: 1-11
- Body Style: Stainless Steel Bellows
- ASSE 1010 Certified: Yes
Dimensions
| End Connection | NPT | — | — |
Details
| Series | Z1700 | Device Type | Shoktrol Water Hammer Arrestor |
| Body Material | Stainless | Max Pressure PSI | 250.0 psi |
| Max Temp °F | 300.0 °F | Min Temp °F | 33.0 °F |
| PDI Size | A | Fixture Units | 1-11 |
| Body Style | Stainless Steel Bellows | ASSE 1010 | Yes |
Certifications & Standards
| ASSE-1010 | — |
Compare with similar products
| PDI Size | A
| B
|
| Fixture Units | 1-11
| 12-32
|
| Body Style | Stainless Steel Bellows
| Stainless Steel Bellows
|
| ASSE 1010 | Yes | Yes |
| Series | Z1700
| Z1700
|
| Spec Sheet | ||
| Install Sheet | ||
| Device Type | Shoktrol Water Hammer Arrestor
| Shoktrol Water Hammer Arrestor
|
| End Connection | NPT
| NPT
|
| Body Material | Stainless
| Stainless
|
| Max Pressure PSI | 250.0 psi | 250.0 psi |
| Max Temp °F | 300.0 °F | 300.0 °F |
| Certifications | ASSE-1010
| ASSE-1010
|
| Min Temp °F | 33.0 °F | 33.0 °F |
