Specifications
Description

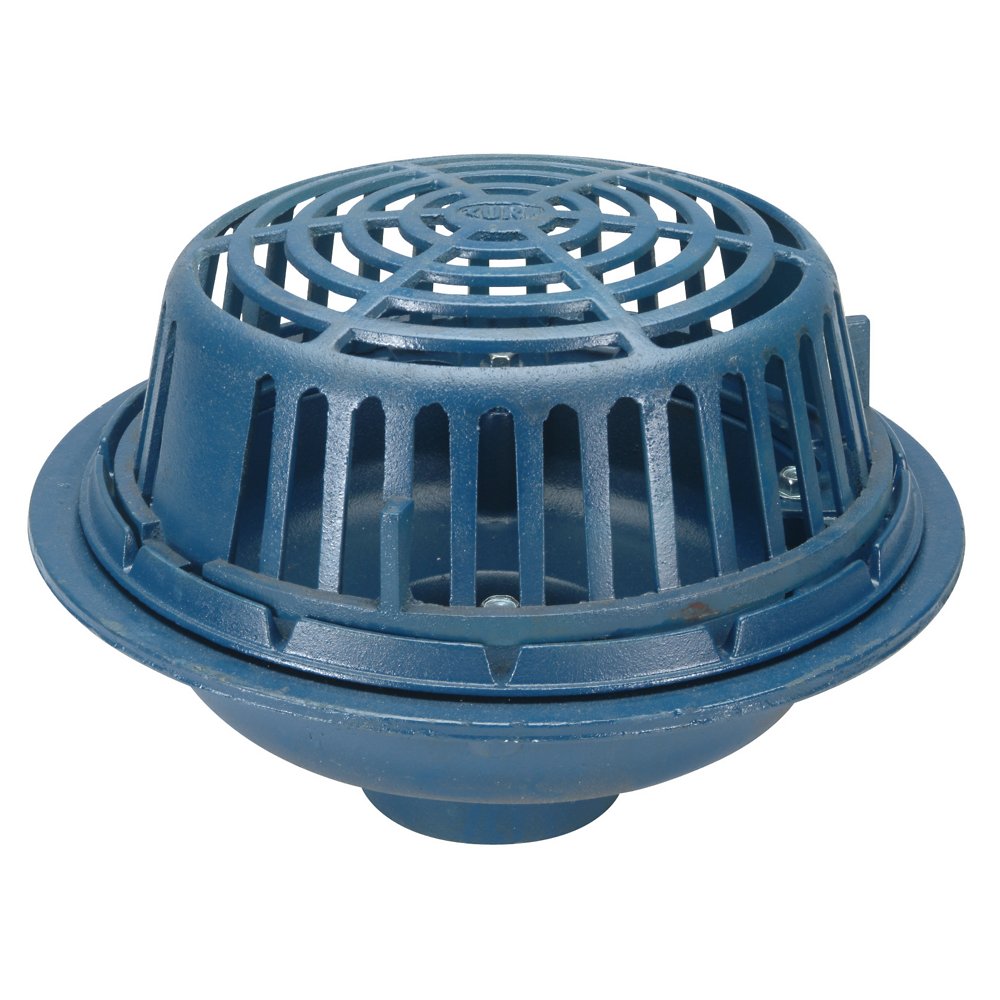

The Zurn Z100-3NH-89 is a epoxy coated cast iron roof drain with a 3" No-Hub outlet. It features a cast iron body.
The Zurn Z100 15" diameter roof drain has a Dura-Coated cast iron body with combination membrane flashing clamp/gravel guard and low silhouette Poly-Dome. High Performance, Next Generation Model Now Available: Z100F.
Features
- 15" diameter primary roof drain
- Clamping collar and low silhouette Poly-Dome
Common Questions
- What pipe connection does it use?
- It connects with a 3" No-Hub outlet.
- What is it made of?
- It has a cast iron body with a epoxy coated coating.
Specifications
- Size: 3"
- Outlet Size: 3"
- Connection: No-Hub
- Body Material: Cast Iron
- MPN: Z100-3NH-89
- Drainage Role: Primary
- Dome / Strainer Material: Poly
- Coating / Finish: Epoxy Coated
- Flashing Clamp: Yes
- Gravel Stop: Yes
Dimensions
| Size Nominal | 3" | Outlet Size | 3" |
| End Connection | No-Hub | — | — |
Details
| Series | Z100 | Body Material | Cast Iron |
| Flashing Clamp | Yes | Drain Role | Primary |
| Coating | Epoxy Coated | Dome material | Poly |
Compare with similar products
| Flashing Clamp | Yes | Yes | Yes | — | Yes | Yes |
| Drain Role | Primary
| Primary
| Primary
| Primary
| Primary
| Primary
|
| Series | Z100
| Z100
| Z100
| Z158
| Z100
| Z100
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Size Nominal | 3"
| 4"
| 4"
| 4"
| 4"
| 4"
|
| Outlet Size | 3"
| 4"
| 4"
| 4"
| 4"
| 4"
|
| End Connection | No-Hub
| No-Hub
| No-Hub
| No-Hub
| No-Hub
| No-Hub
|
| Body Material | Cast Iron
| Cast Iron
| Cast Iron
| Cast Iron
| Cast Iron
| Cast Iron
|
