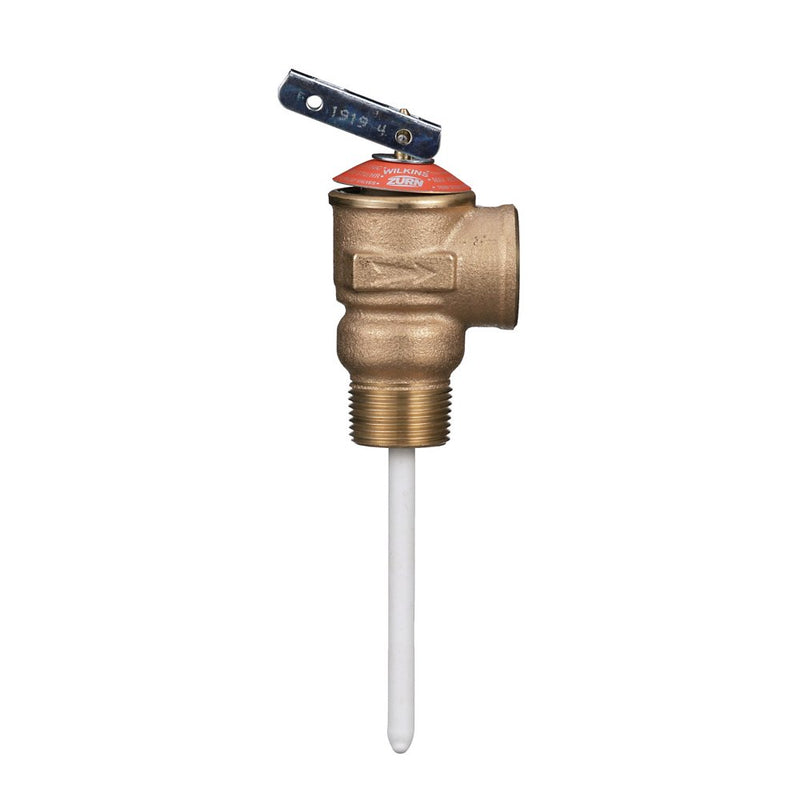

The Zurn Wilkins TP1100A-4C-150C is a 3/4" temperature and pressure (T&P) relief valve for residential water heater, factory set at 150 psi and 210°F. It is rated to up to 210°F.
Designed for installation on water heating storage ves- sels to protect against over-temperature or excessive pressure. (Not for steam service)
Features
- Commonly used on residential water heaters
- Thermal element protected with epoxy coating
- Available in 75, 100, 125, 150, and 175 psi setting
Common Questions
- What pressure is this valve set to?
- It is factory set to relieve at 150 psi and 210°F. The setting is fixed and is not field-adjustable.
- Will it fit my water heater - what BTU input does it cover?
- This valve is rated for 105,000 BTU/hr on the ANSI Z21.22/CSA 4.4 basis. Code requires the relief valve's discharge capacity to equal or exceed the input of the appliance it protects, so compare it against the input rating on the heater's data plate. Zurn's own spec sheet separately lists a 500,000 BTU/hr ASME Section IV pressure-steam figure for this exact model - a different, much larger number measured on a different basis. Do not compare the two.
- Can I use this on potable water?
- No - Zurn states the NSF/ANSI/CAN 372 lead-free listing on this shared spec sheet applies to the P1000AXL model only. This T&P valve carries no potable-water lead-free claim; use the P1000AXL if you need one certified for potable service.
Specifications
-
Type: Temperature & Pressure Relief Valves with Manual Purge Lever and Optional Extended Body and Shank
-
Size: 3/4"
-
Inlet Size: 3/4"
-
Outlet Size: 3/4"
-
Connection: NPT
-
Application: Domestic Water
-
MPN: TP1100A-4C-150C
-
Temperature: up to 210°F
-
Certifications: ASME Section IV, ANSI-Z21.22, CSA-4.4
-
Relief Type: Temperature & Pressure
-
Factory Set Pressure (psi): 150
-
Temperature Setting (°F): 210
-
Discharge Capacity (BTU/hr): 105000
-
BTU Rating Basis: ANSI Z21.22/CSA 4.4
-
ASME Code Rating: ASME Section IV
-
Application: Residential Water Heater
-
Approved for Potable Water: No
-
Thermostat / Probe Length (in.): 4
-
Shank Length: Standard
-
Connection Configuration: MNPT inlet x FNPT outlet
-
Manual Test / Purge Lever: Yes
