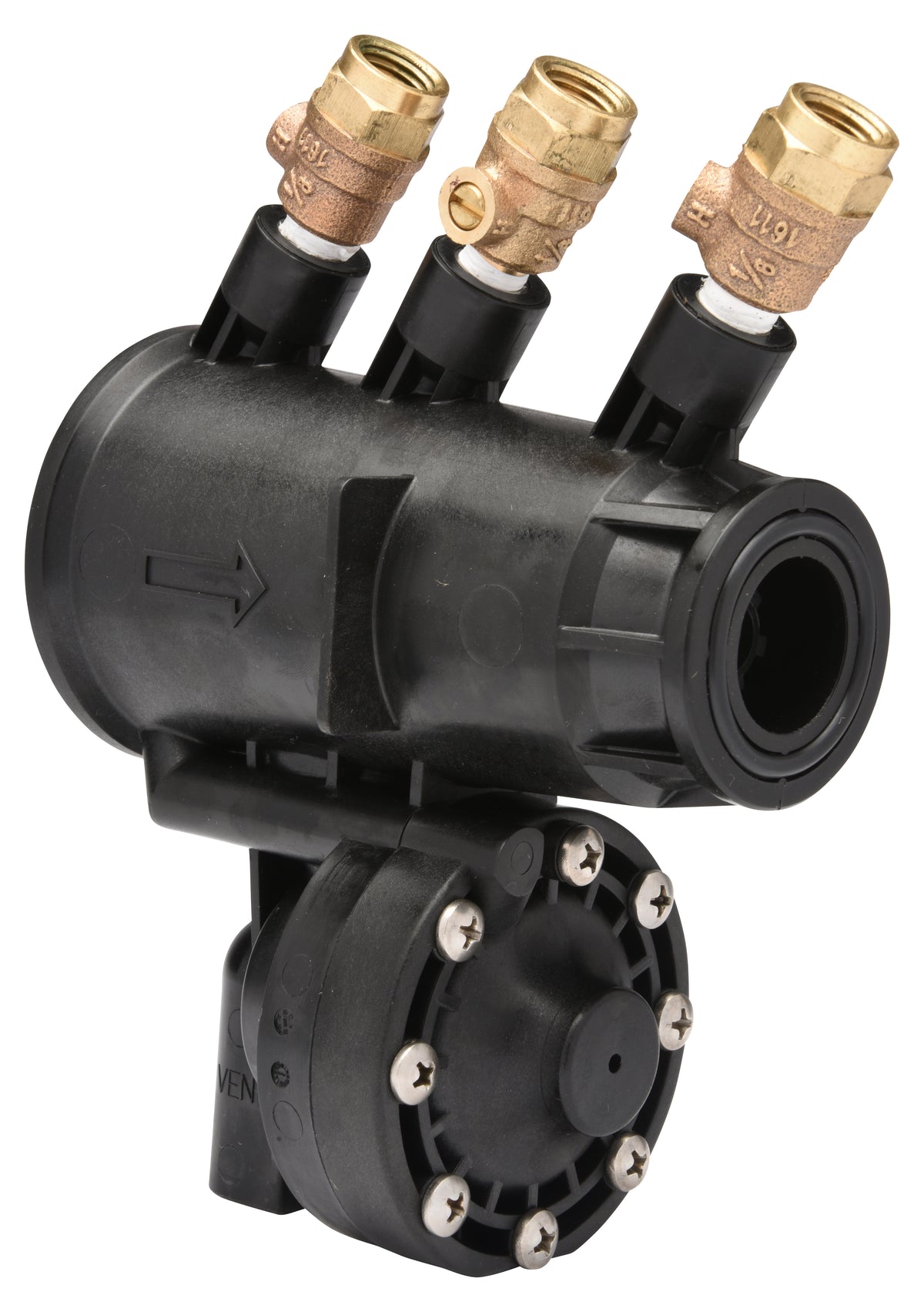

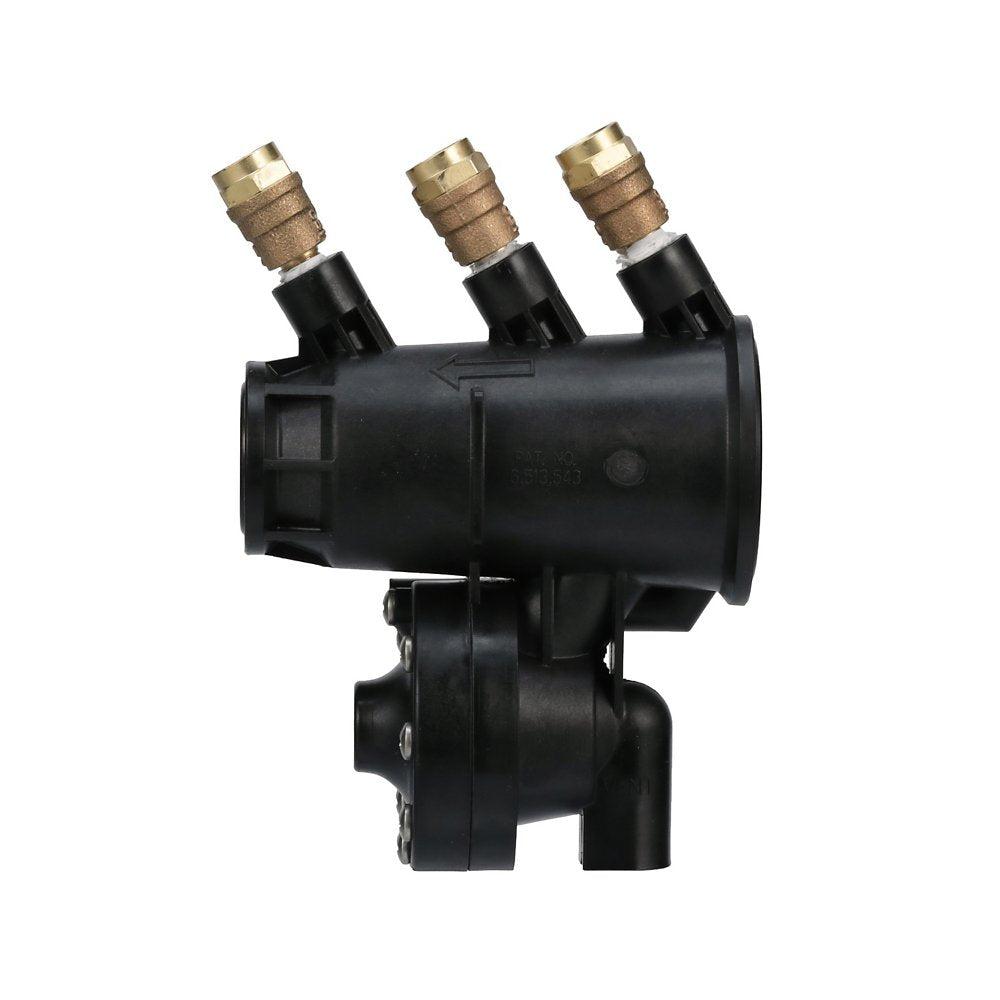

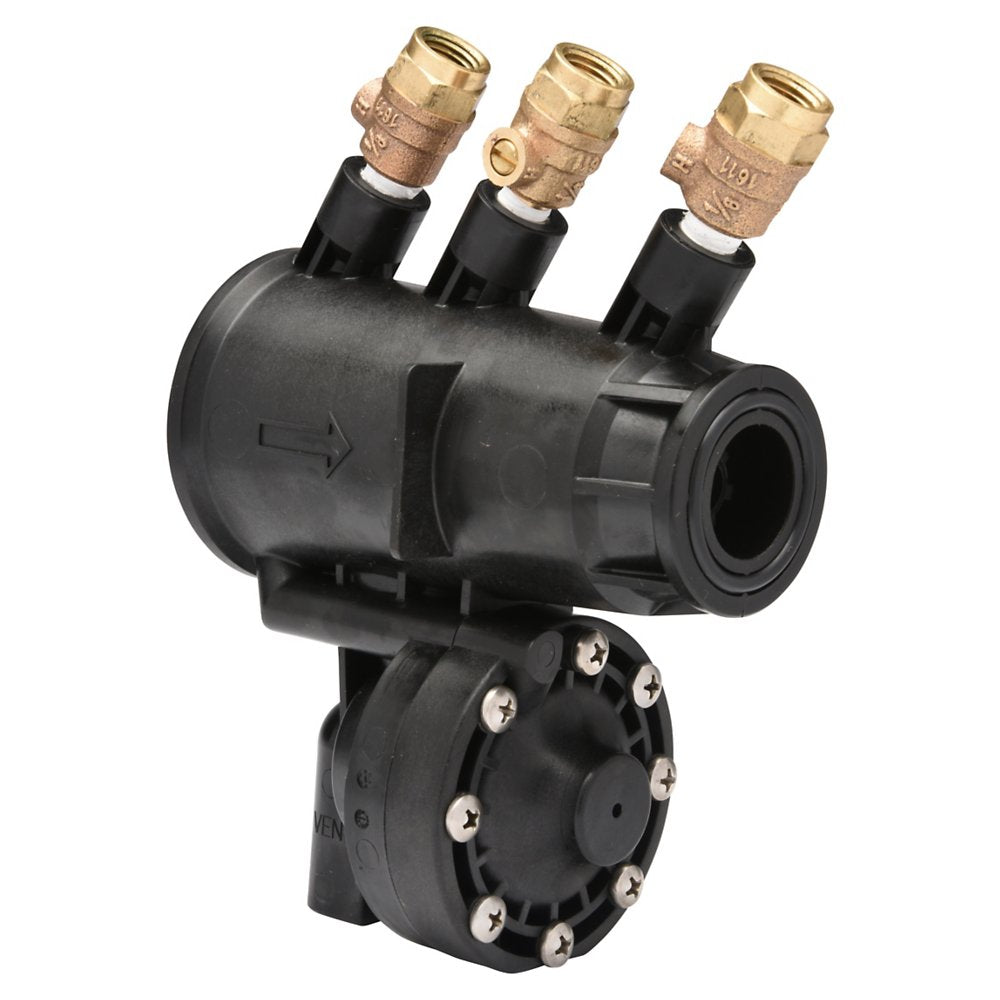

Zurn RK1-375V Vessel Repair Kit

The Zurn Wilkins RK1-375V is a genuine vessel repair kit for 1" Model 375.

The Complete Pressure Vessel Repair Kit is compatible with the 1” Model 375 and 375XL Reduced Pressure Principle Backflow Preventer. Repair Kit components include one #1 Check Seat O-Ring, one #1 Check Seat, two Poppet Screws, two Check Seal Retainers, two Check Seal Rings, two Poppets, one #1 Check Spring, one #1 Check Spring Retainer, one #2 Check Seat O-Ring, one #2 Check Seat, one #2 Check Spring, one #2 Check Spring Retainer, one Housing Inlet O-Ring, three Test Cocks, one Check Housing, one Housing Outlet O-Ring, one Relief Valve Cover O-Ring, one Relief Valve Seat O-Ring, one Relief Valve Seat, one Relief Valve Spring, one Relief Valve Seal Retaining Screw, one Relief Valve Seal Ring, one Relief Valve Lower Plunger, one Diaphragm, one Relief Valve Upper Plunger, one Relief Valve Stem O-Ring, one Relief Valve Cover, two Short Relief Valve Cover Screws, four Long Relief Valve Cover Screws, and three Test Cock Cap Plugs. The accessories within the kit allow you to speed up repairs, while lowering maintenance costs and extending the product life. The Wilkins portfolio offers long-lasting protection from backsiphonage and backpressure of contaminated water into the potable water supply.

Features

• Accessories allow for speedy repairs
• Repair Kits provide cost savings by avoiding full Backflow Preventer replacement
• Complies with ASSE® Listed 1013 and C-UL® Classified
• Quality materials extend replacement life
• 1-year limited warranty

Common Questions

Will this kit fit my assembly?

The RK1-375V fits the 1" size of Model 375. Kits are size- and series-specific, so match the model stamped on your valve body or cover before ordering.

What's included in this kit?

This is a vessel repair kit -- it carries the factory parts for that subassembly only, not a whole-assembly rebuild.

Are these genuine Zurn Wilkins parts?

Yes. This is the factory RK1-375V kit built with genuine Zurn Wilkins OEM components. Aftermarket parts can void your assembly approval and are commonly rejected by inspectors at annual test time.

Specifications

• Type: 1" 375/375XL Complete Pressure Vessel Repair Kit
• MPN: RK1-375V
• Fits Series: 375
• Fits Size: 1"
• Kit Type: Vessel Repair Kit
• Kit Contents: Kit consists of: one #1 Check Seat O-Ring, one #1 Check Seat, two Poppet Screws, two Check Seal Retainers, two Check Seal Rings, two Poppets, one #1 Check Spring, one #1 Check Spring Retainer, one #2 Check Seat O-Ring, one #2 Check Seat, one #2 Check Spring, one #2 Check Spring Retainer, one Housing Inlet O-Ring, th.
